DISASSEMBLY AND REPLACEMENT
4 - 116
4.12.2 RADF front cover
(5) Slide the RADF towards the rear side and
take it off.

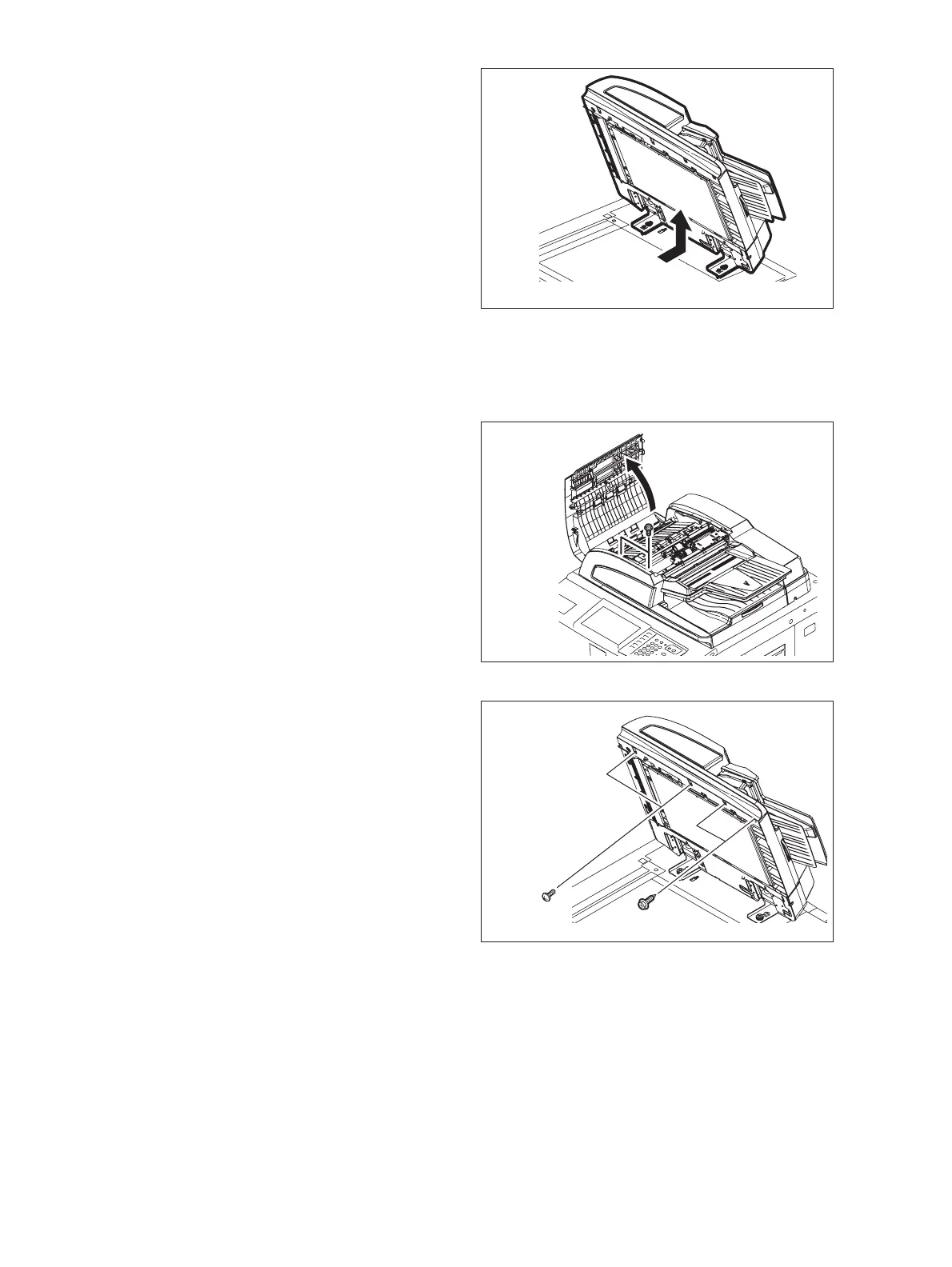

Fig. 4-325
(1) Open the original jam access cover and
remove 2 screws.
Fig. 4-326
(2) Open the RADF and remove 4 screws.
Fig. 4-327
