e-STUDIO556/656/756/856(Ver03) © 2012 TOSHIBA TEC CORPORATION All rights reserved
BACKUP FUNCTION
12 - 2
12.1.4 Cloning procedure
[A] Backup procedure
(1) Shut down the equipment.

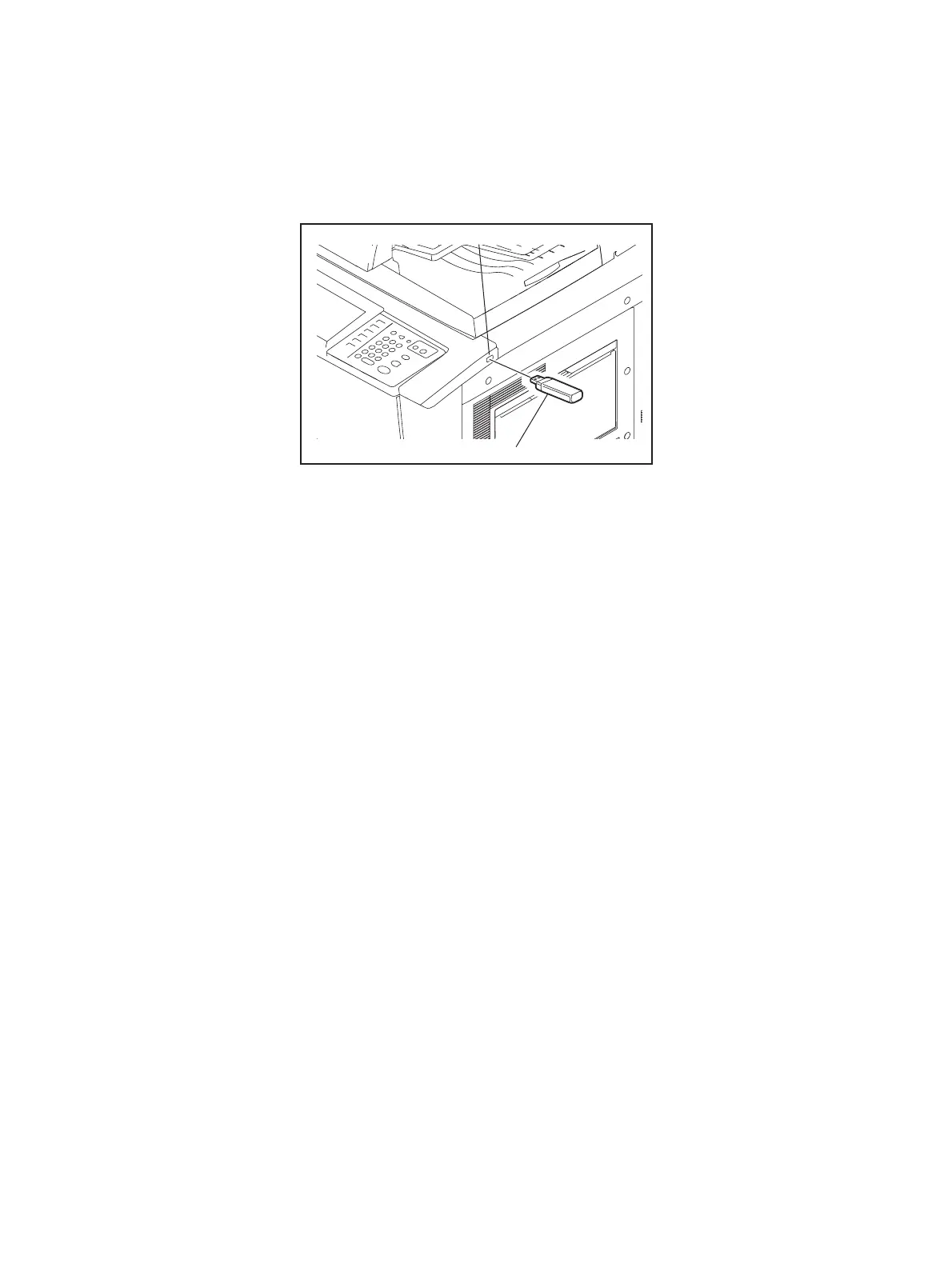

(2) Connect the USB media to the USB port on the right upper cover.
Fig. 12-1
Backing up cannot be performed with multiple USB media connected at the same time.
(3) Turn the power ON while pressing the [5] and [9] buttons simultaneously.
(4) Enter the password, and then press the [OK].
(If the password is not set for Service, press the [OK] button without entering anything.)
(5) Select "1. Backup SRAM Data to USB", and then press the [START] button.
(6) Enter a password (max. 15 characters) set for the backup data.
(7) “Back Up Completed” is displayed on the LCD screen when the backup has been properly
completed.
(8) Turn the power OFF and remove the USB media.
USB media
USB port
To Next Page
