Installing the Touch pad/Fingerprint sensor board
To install the touch pad/fingerprint sensor board, follow the steps below and refer to Figure
4-26 to 4-28.
1. Connect the touch pad button FFC to the connector on a new touch pad and stick
the touch pad in place.
2. Set the fingerprint sensor board to the touch pad plate and secure them
following screws.
with the
NOTE: When replacing the touch pad plate with a new one, stick the gasket and
ï‚· M2.0ï‚´3C S-THIN HEAD screw ï‚´2
insulator (INSU TPAD) to the touch pad plate in place.

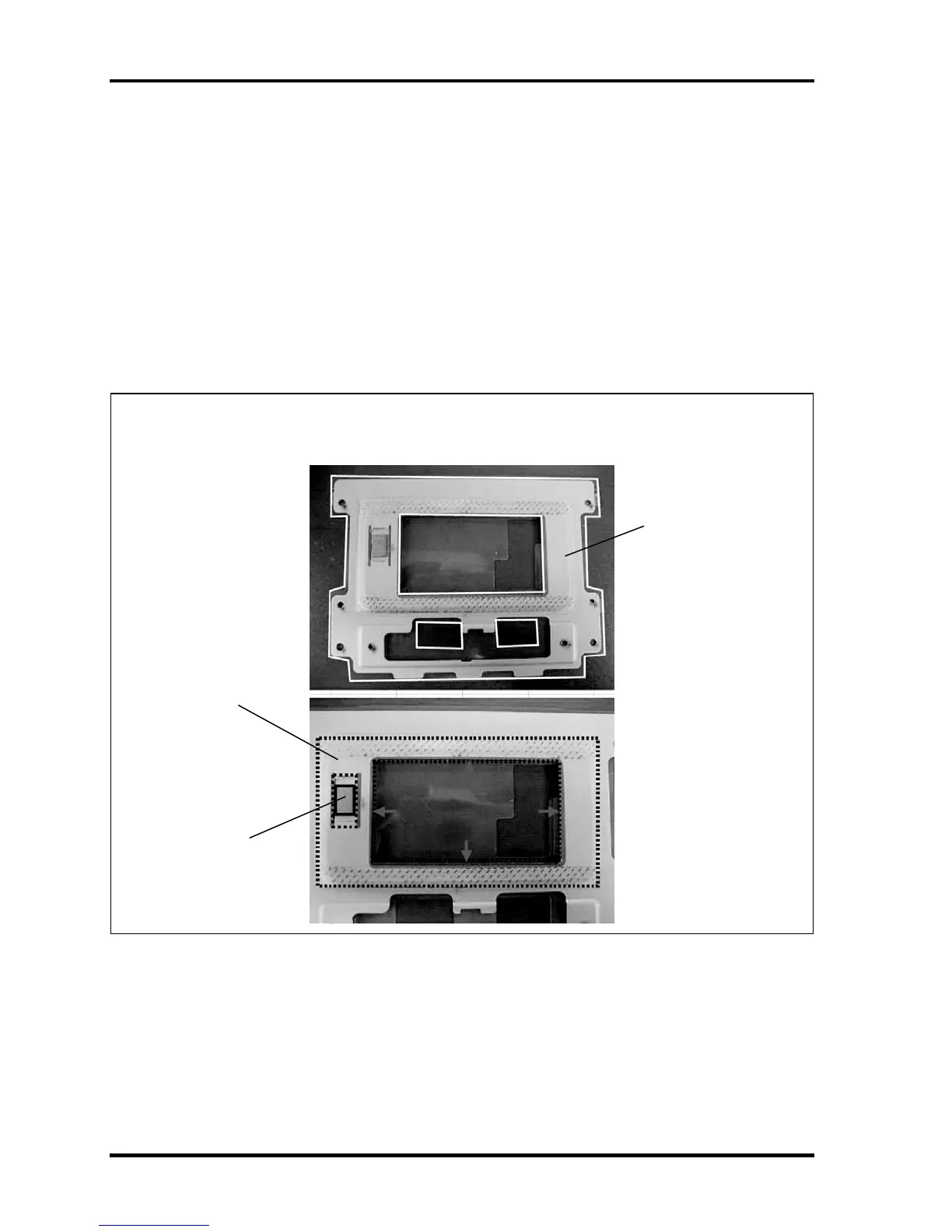

Touch pad plate
INSU TPAD
Gasket
4-48 [CONFIDENTIAL] TECRA A11/S11/P11 Satellite Pro S500 Series Maintenance Manual (
960-784)
