4-84 [CONFIDENTIAL] TECRA A11/S11/P11 Satellite Pro S500 Series Maintenance Manual (960-784)
6. Disconnect the RJ11 harness from the connector CN3010 on the system board.
arness holder.
9. Release the latches and remove the RJ11 harness holder.
7. Take out the RJ11 harness from the RJ11 harness holder.
8. Remove the following screw securing the RJ11 h
ï‚· M2.0ï‚´4B BIND screw ï‚´1

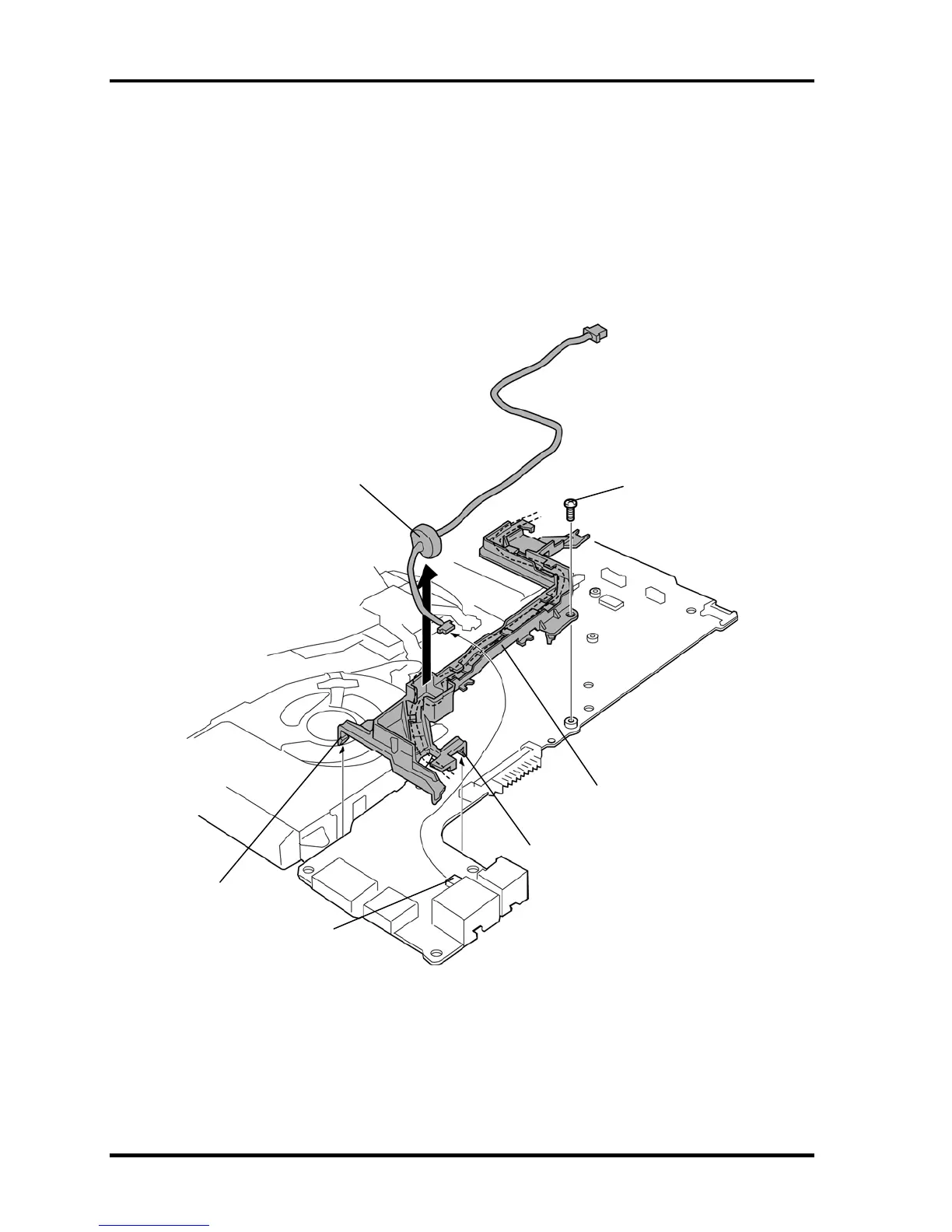

Figure 4-45 Removing the RJ11 harness
RJ11 harness holder
RJ11 harness
M2.0x4B BIND
CN3010
Latch
Latch
