6. Stick the camera cushion and square cushion on the LCD cover.

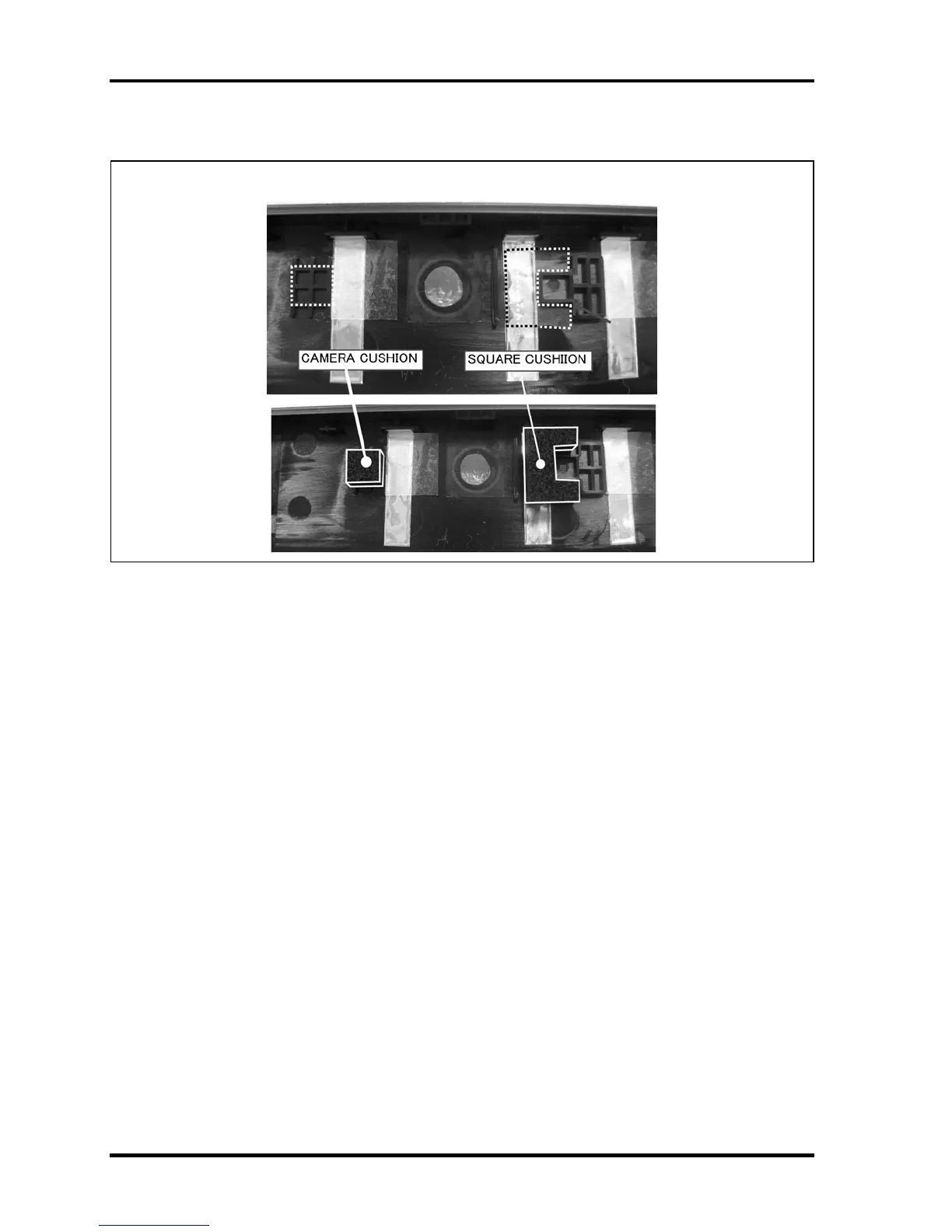

NOTE: Stick the camera cushion and square cushion as shown in the figure below.
7. Connect the camera harness to the connector on the camera module and stick the
camera module in place.
8. Arrange the camera harness in place and secure it with the double-sided tape.
9. Secure the 3G antenna cable with the insulator.
4-98 [CONFIDENTIAL] TECRA A11/S11/P11 Satellite Pro S500 Series Maintenance Manual (960-784)
