Installing the Camera module/Wireless LAN antenna/3G antenna
To install the camera module/wireless LAN antenna/3G antenna, follow the steps below and
refer to Figure 4-52 and 4-53.
1. Stick new wireless LAN antennas in place.
2. Arrange the wireless LAN antenna cables in place.
3. Stick new 3G antennas in place.
4. Arrange the 3G antenna cables in place.
5. Peel off a protection sheet from a new camera module.

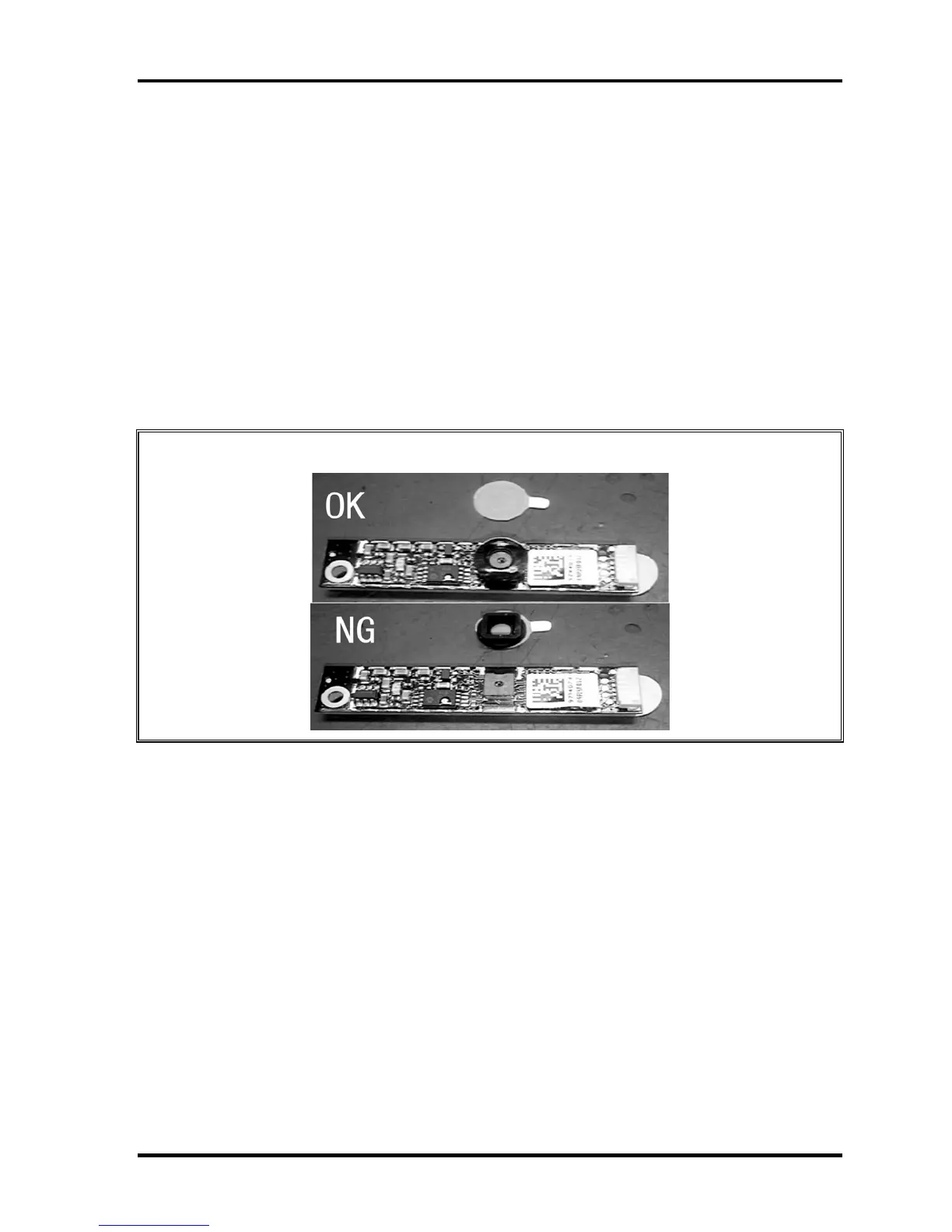

CAUTION: When peeling the protection sheet with care of the followings:
