Procedures for Operation Failure
Paper dust falling from the paper pass on the reflecting plate may reflect the
light to the receiving of Rear Feeder Sensor and/or Trailing Edge Sensor.
Those reflecting plates need to be cleaned.

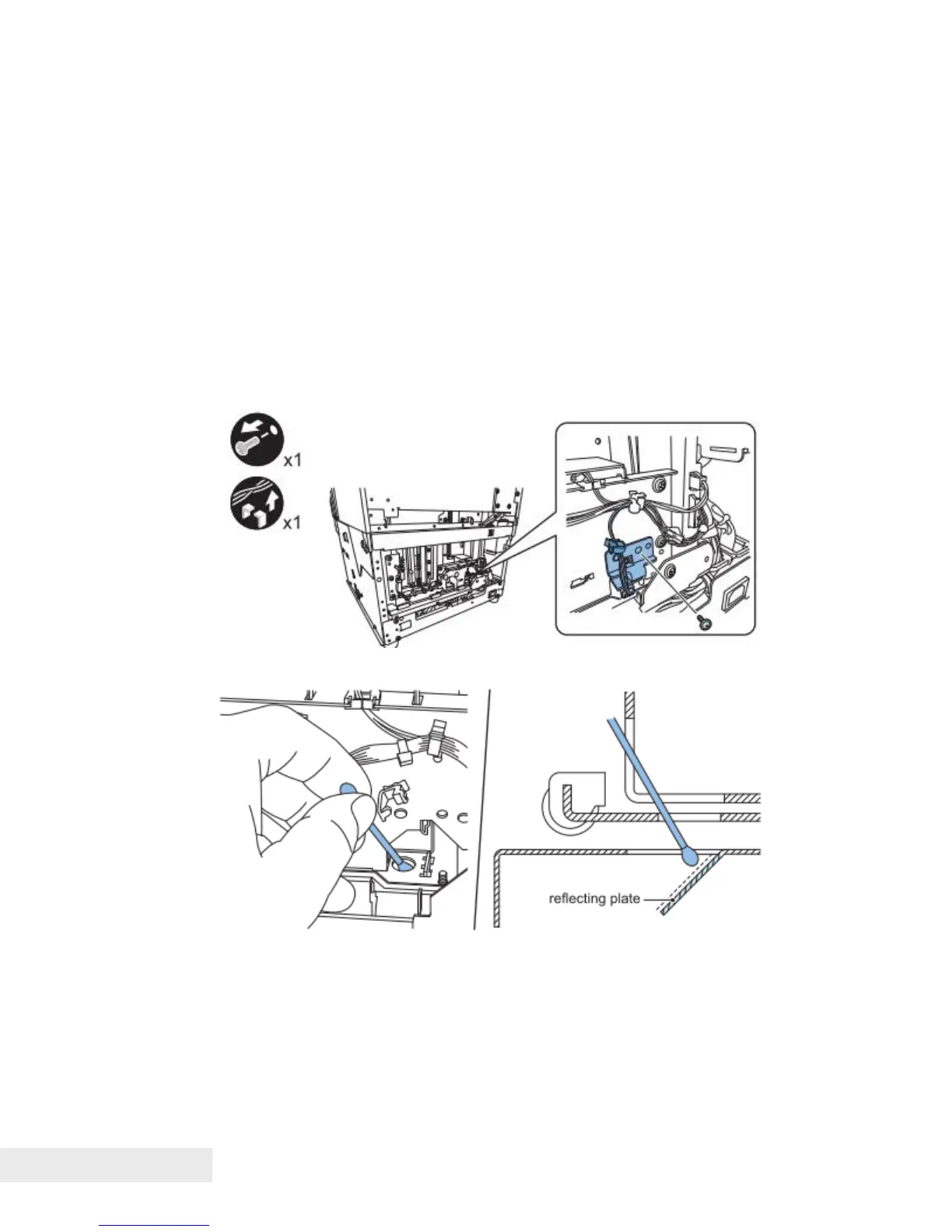

Rear Feeder Sensor Cleaning
1) Remove Right Cover.("Removing Right Cover" section)
2) Remove Left Cover.("Removing Left Cover" section)
3) Remove Rear Lower Cover.("Removing Rear Lower Cover" section)
4) Remove Rear Feeder Sensor.
• 1 Screw
• 1 Clamp
5) Wipe reflecting plate with the cotton swab.
To Next Page
