Step-by-Step Installation Instructions
Page 72 100-11672 - Rev D
Examining and Adjusting Slant

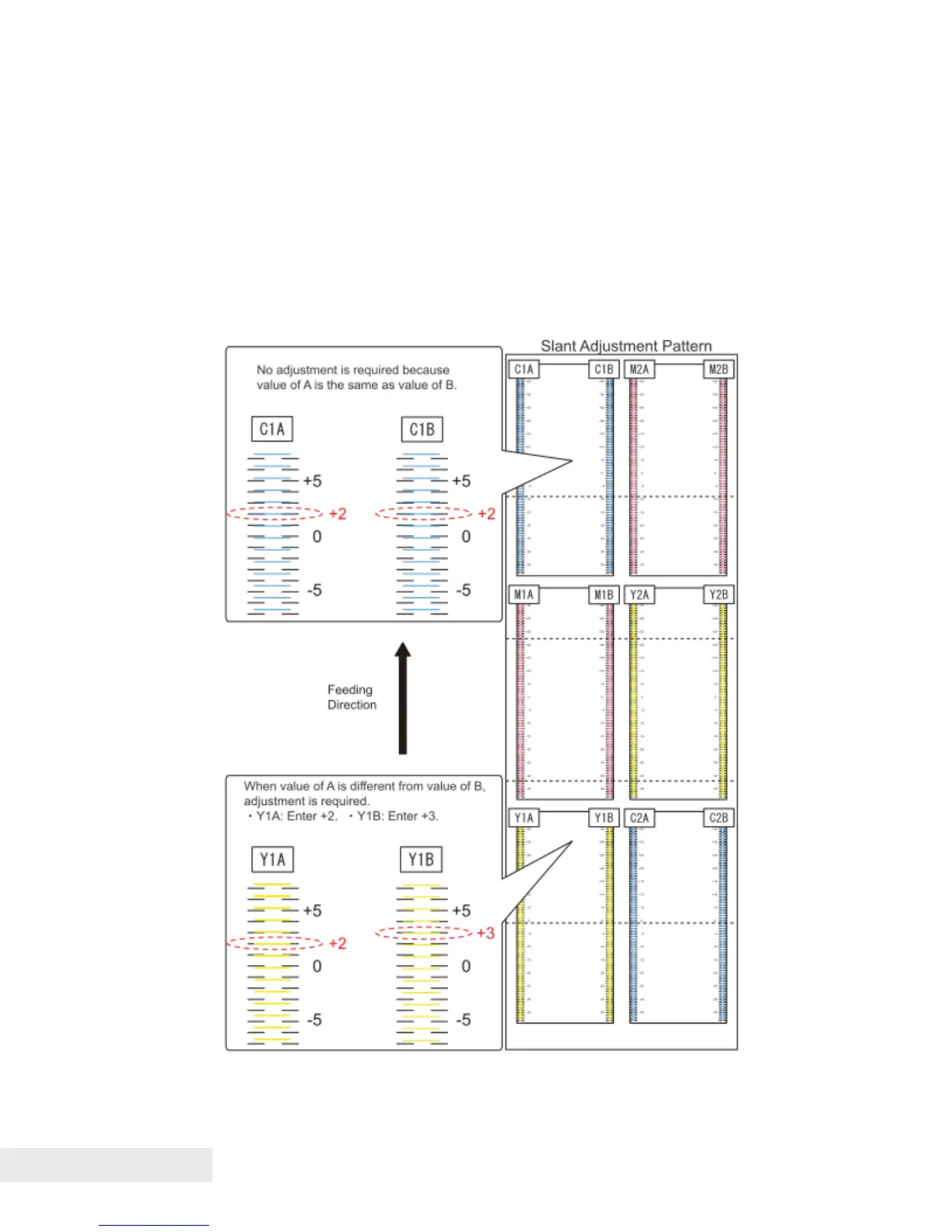

1) Read values at which Black lines are in line with line of each color (Cyan,
Magenta, or Yellow).
When a value of A is the same as a value of B:
• Example 1: When the value of C1A (+2) is the same as the value of C1B
(+2), no adjustment is required for C1 (Cyan Printhead 1).
When a value of A is different from a value of B:
• Example 2: When the value of Y1A (+2) is different from the value of Y1B
(+3), the adjustment has to be made for Y1.
