TransAct Printrex 980 - Head Position Adjustment

Appendix B: Frequently Asked Questions
Page 164 100-11672 - Rev D
Head Position Adjustment
Printing Head Position Adjustment Pattern
1) Connect PC to Printer, and then start service utility.

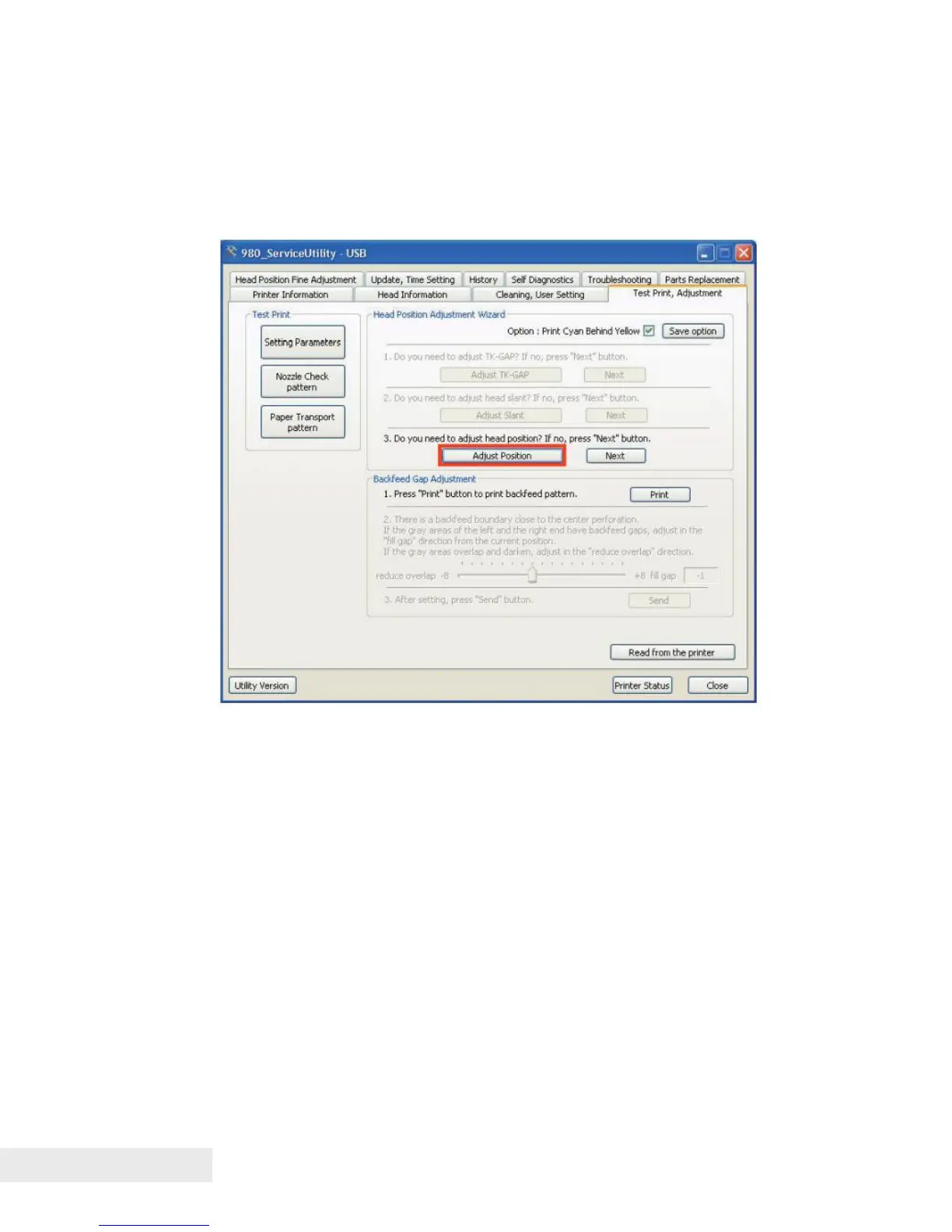

Open the [Test Print, Adjustment] tab and click [Adjust Position] to display the
"Print Head Position Adjustment" dialog box.
