TransAct Printrex 980 - Examining and Adjusting TK-GAP

Step-by-Step Installation Instructions
Page 68 100-11672 - Rev D
Examining and Adjusting TK-GAP
1) Observe the TK-GAP Adjustment Pattern and examine if the TK-GAP
adjustment is necessary for Print Modules according to the following. Perform
the adjustment, if necessary.

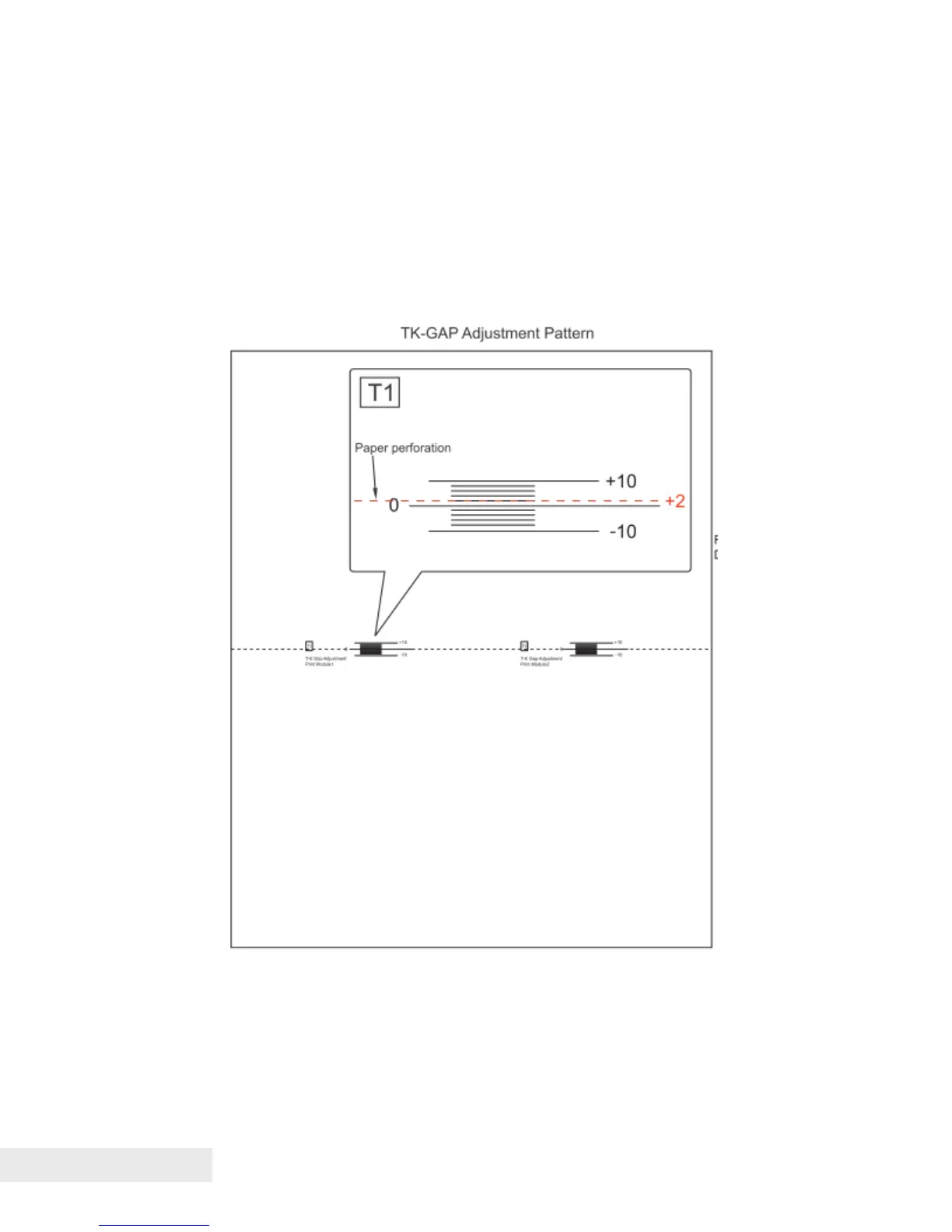

 Find where the paper perforation is located on the TK-GAP adjustment
pattern scale. If the paper perforation is at the “+2” position on the TK-GAP
adjustment pattern scale, the adjustment value is “+2”.
