Print Module Replacement
Note:
 Print Module adjustment procedure must be operate on a flat table.
 Gap between Print Module and the table must be less than 0.5mm.

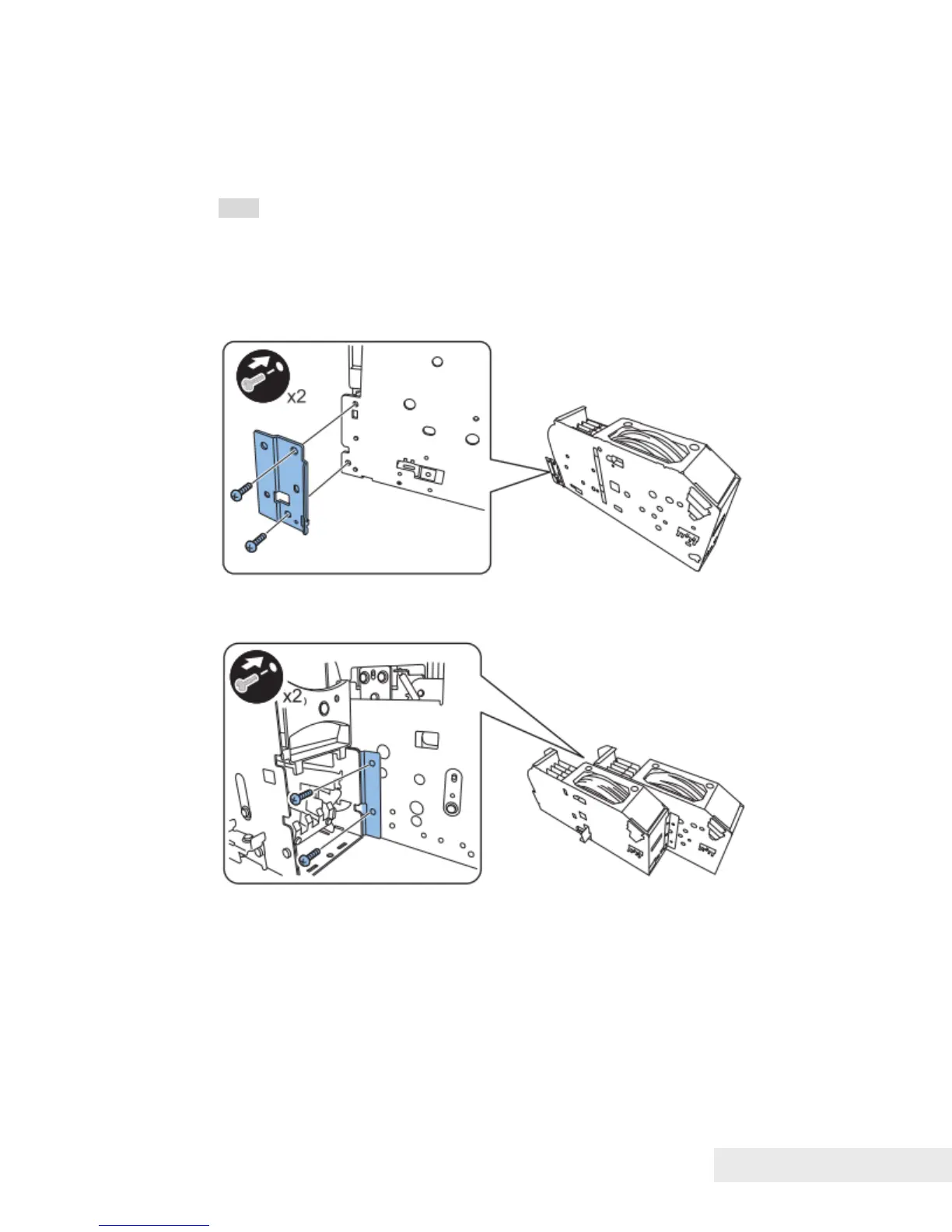

1) Attach Print Module Joint Plate 1 to Print Module 2 (when replacing Print
Module 2).
• 2 screws
2) Prefix Print Modules 1 and 2, not tighten fully.
• 6 screws
