Appendix B: Frequently Asked Questions
Page 140 100-11672 - Rev D

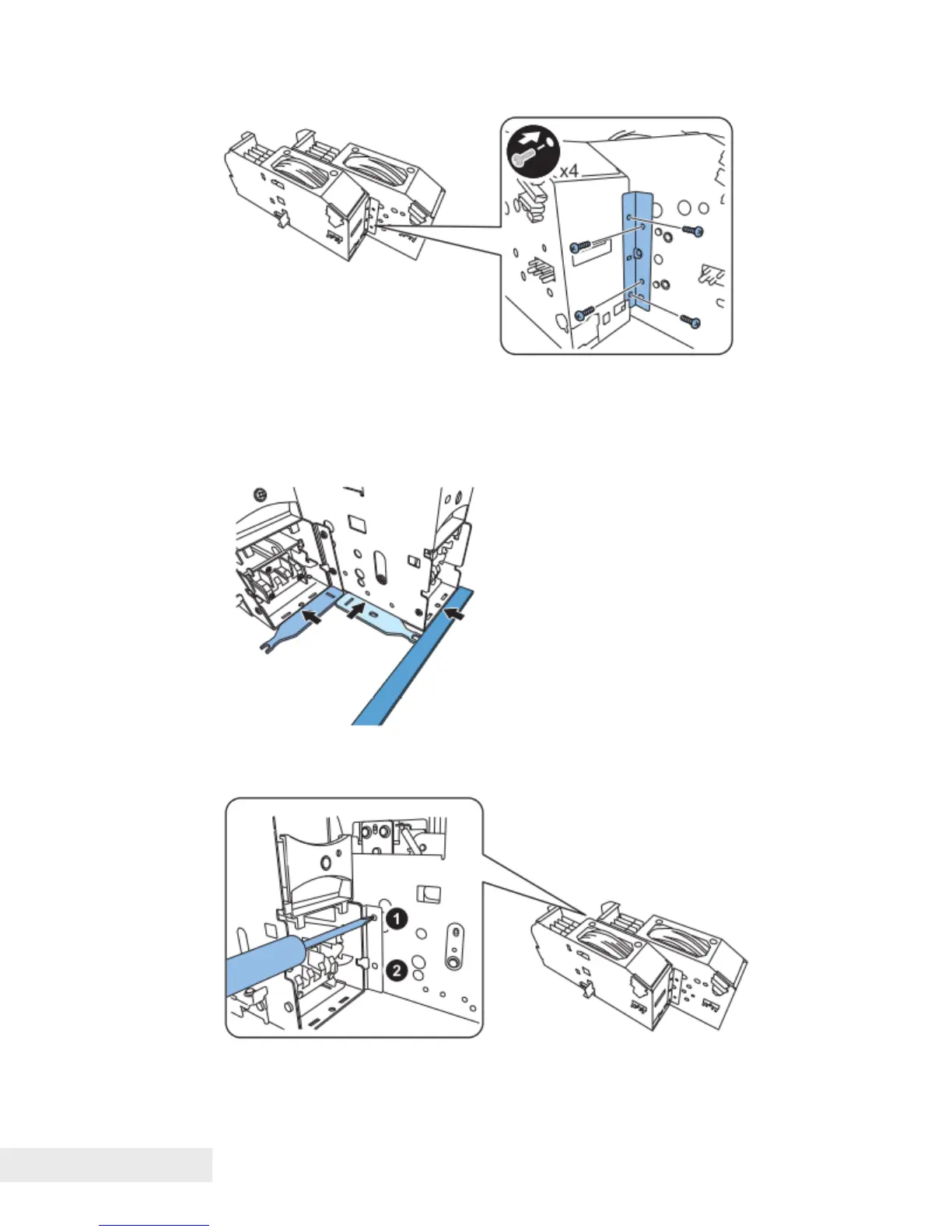

3) Adjust Print Modules in place.
Adjustment 1:
1) Place two wrenches in a L-shape to adjust the horizontal position. Place the
ruler against the end face of Print Module.
2) Tighten the screws to fix Print Module Joint Plate 1.
• 2 screws
To Next Page
