Appendix B: Frequently Asked Questions

Page 118 100-11672 - Rev D

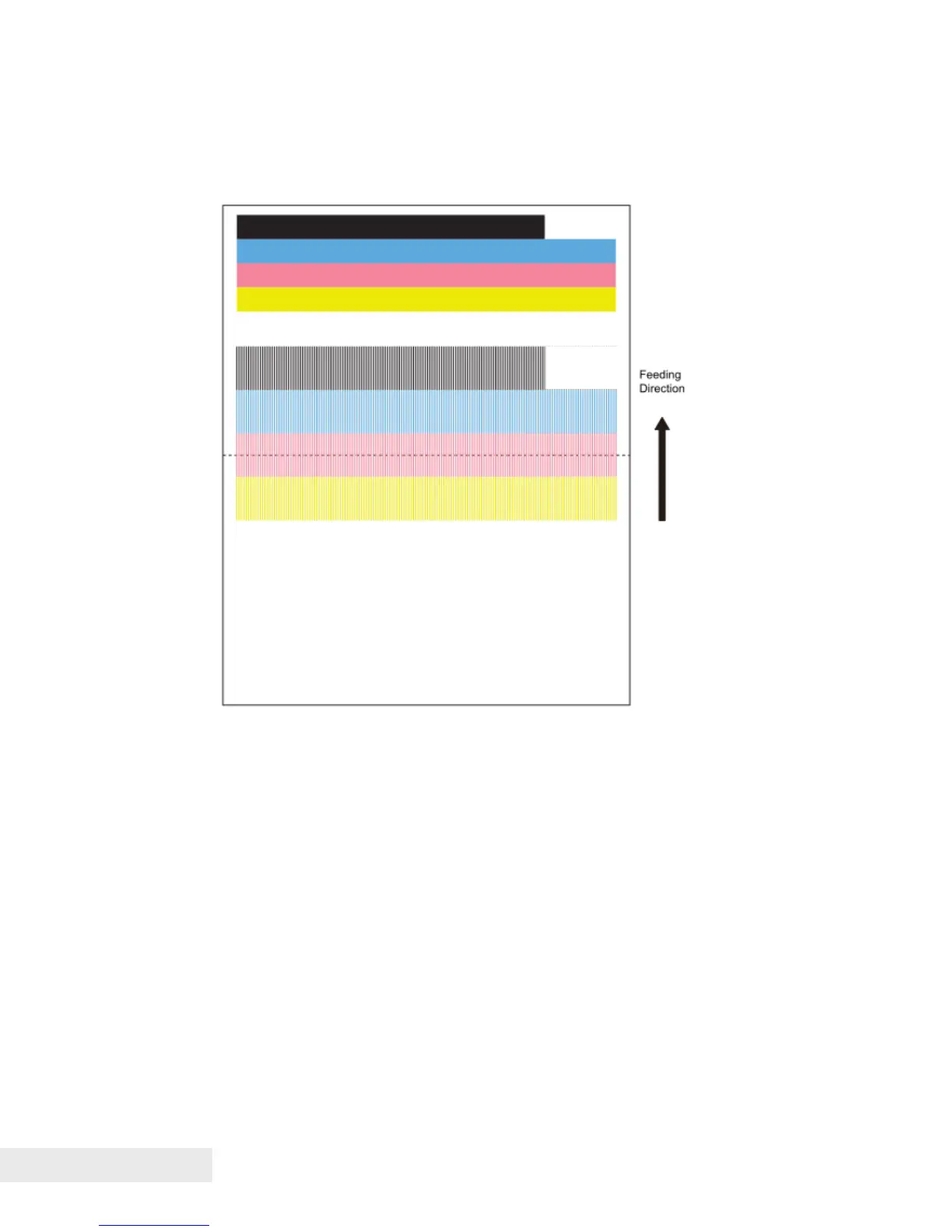

Void

This is a state in which a void is generated due to defective parts of Printhead,

Flexible Cable, PCB, etc. or a bad connection.
