Step-by-Step Installation Instructions
100-11672 - Rev D Page 77
Examining and Adjusting Printhead Position
1) Module-to-Module Adjustment
This adjustment is to align the relative print positions of 2 Print Modules to
each other.

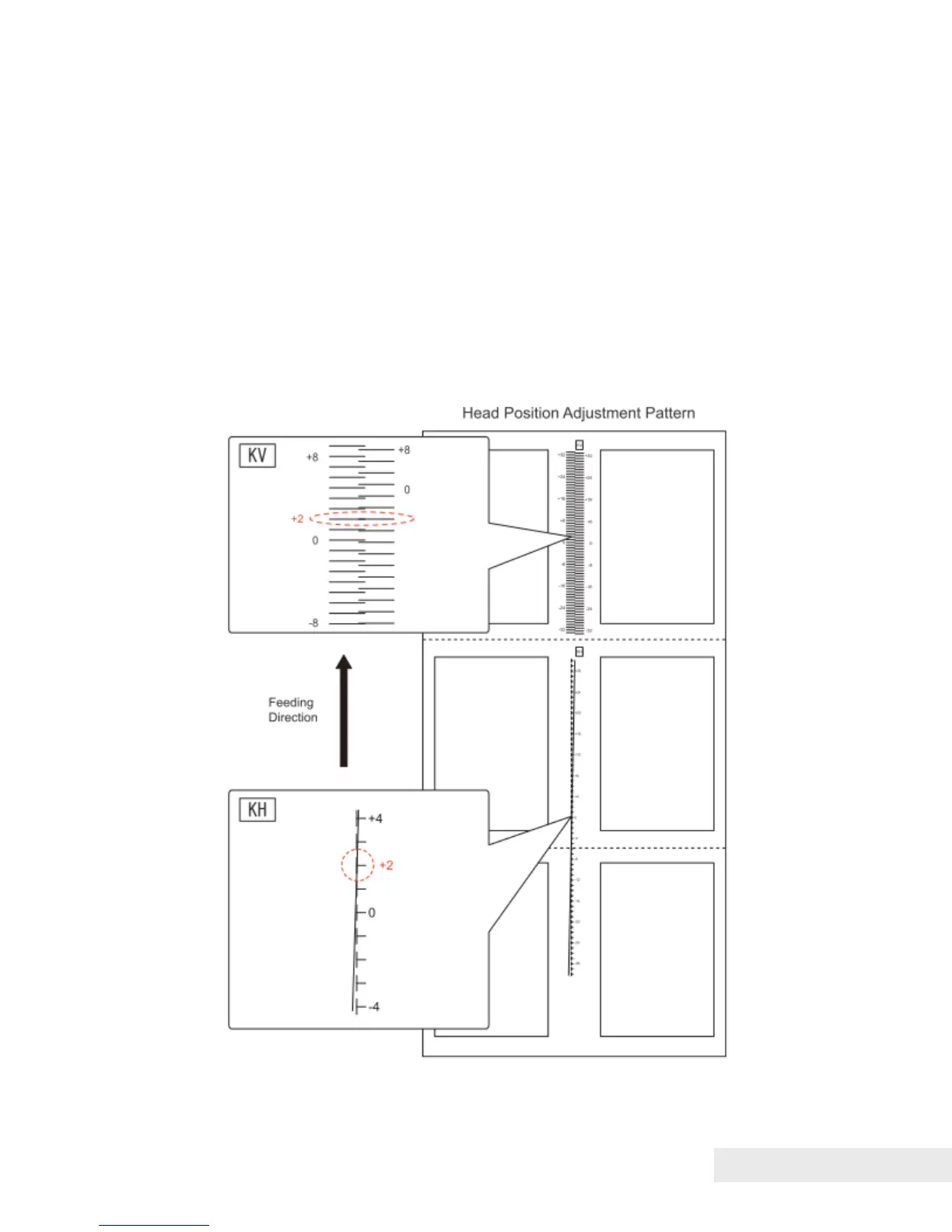

The relative print positions in the feeding direction can be examined in the
"KV" scale.
For the example shown in the figure, the 2 elements are in line at "+2". Thus,
the adjustment value is "+2".
The relative print positions in the cross-feeding direction can be examined in
the "KH" scale. For the example shown in the figure, the 2 elements are in line
at "+2". The adjustment value is therefore "+2".
