Step-by-Step Installation Instructions
Page 78 100-11672 - Rev D
2) Head Position Adjustment

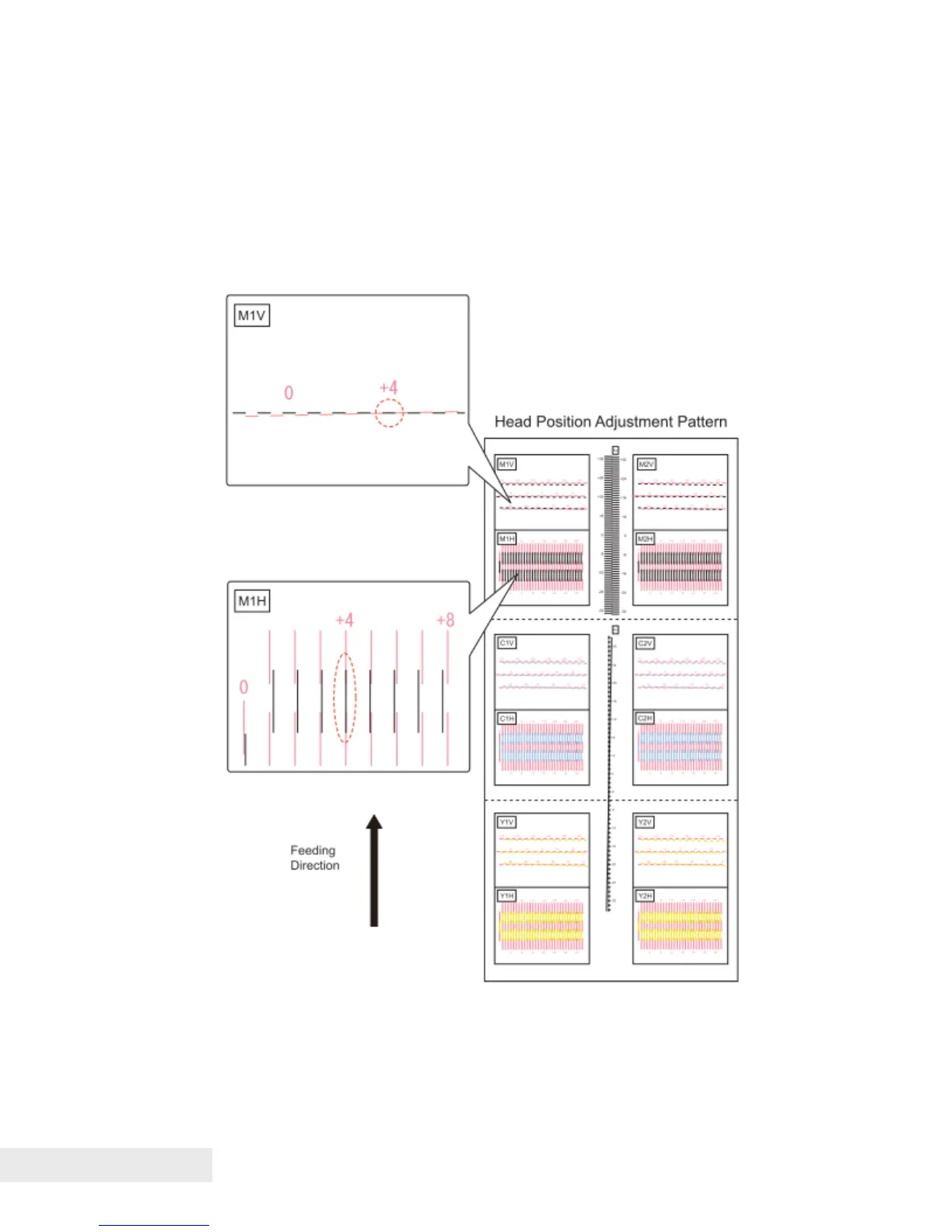

This adjustment is to align the relative color registrations in all the printheads.
The relative color registrations in the feeding direction can be examined in the
"xxV" scale and the ones in the cross-feeding direction can be examined in the
"xxH" scale.
Determine at which division of a scale, two color elements are in line for all the
12 blocks. For the example in the "M1V" block, the Magenta and Black
elements meet at "+4".
