Appendix B: Frequently Asked Questions

Page 176 100-11672 - Rev D

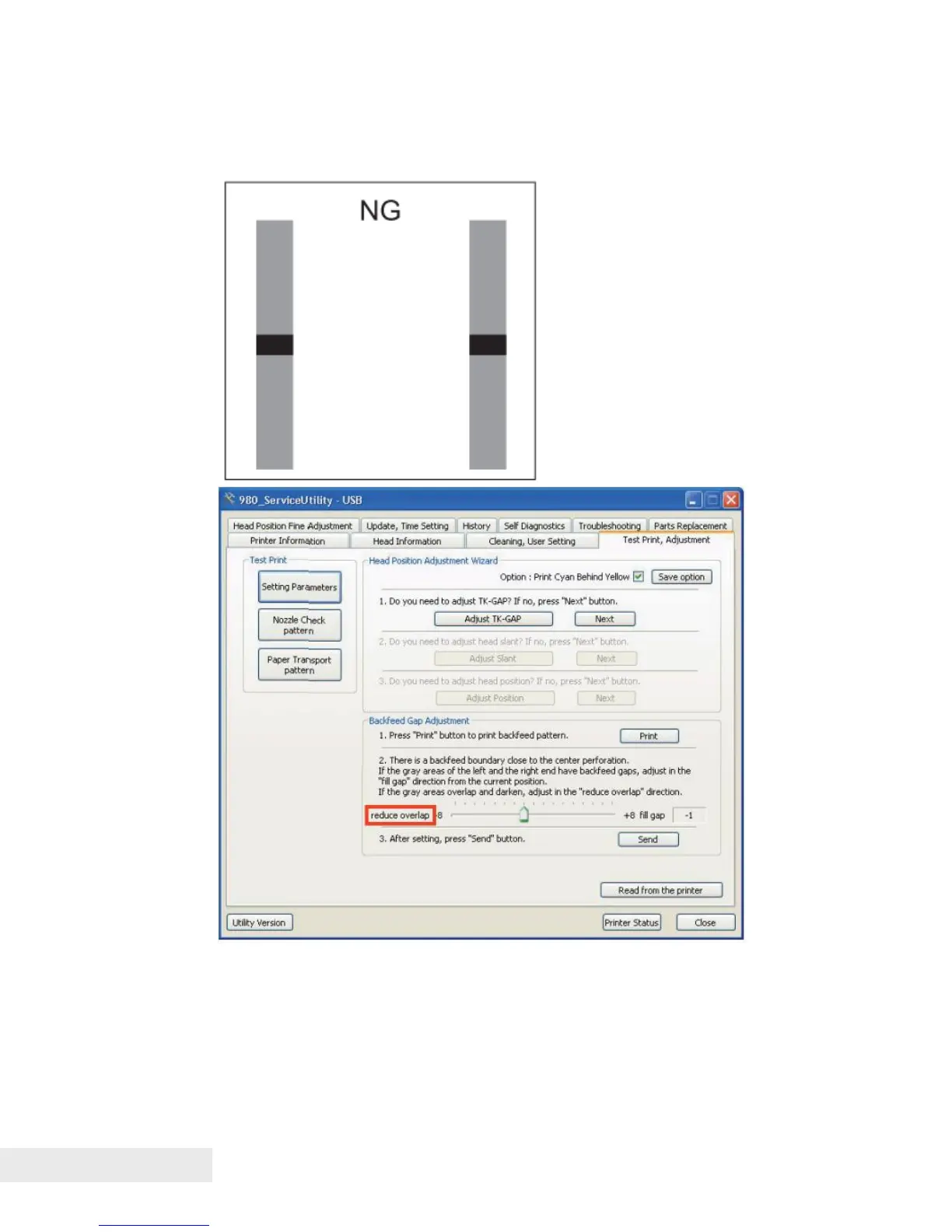

 If the gray areas of the left and the right end have overlaps and darken, press the

"reduce overlap" button.
