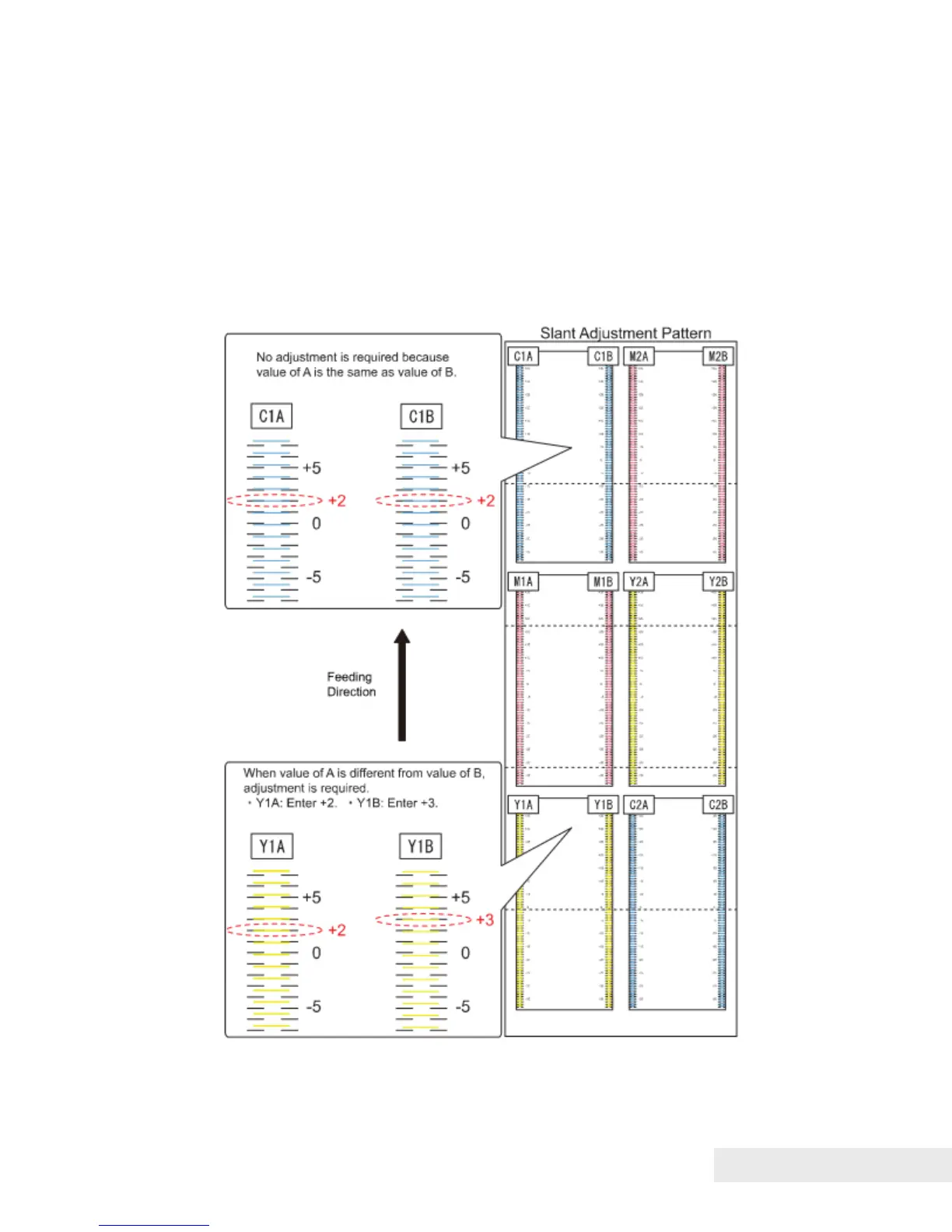

Examining and Adjusting Slant:
1) Read values at which Black lines are in line with line of each color (Cyan,
Magenta, or Yellow).
When a value of A is the same as a value of B:
Example 1: When the value of C1A (+2) is the same as the value of C1B (+2),
no adjustment is required for C1 (Cyan Printhead 1).
When a value of A is different from a value of B:
Example 2: When the value of Y1A (+2) is different from the value of Y1B (+3),
the adjustment has to be made for Y1.
