Appendix B: Frequently Asked Questions

Page 236 100-11672 - Rev D

Printing Head Position Adjustment Pattern:

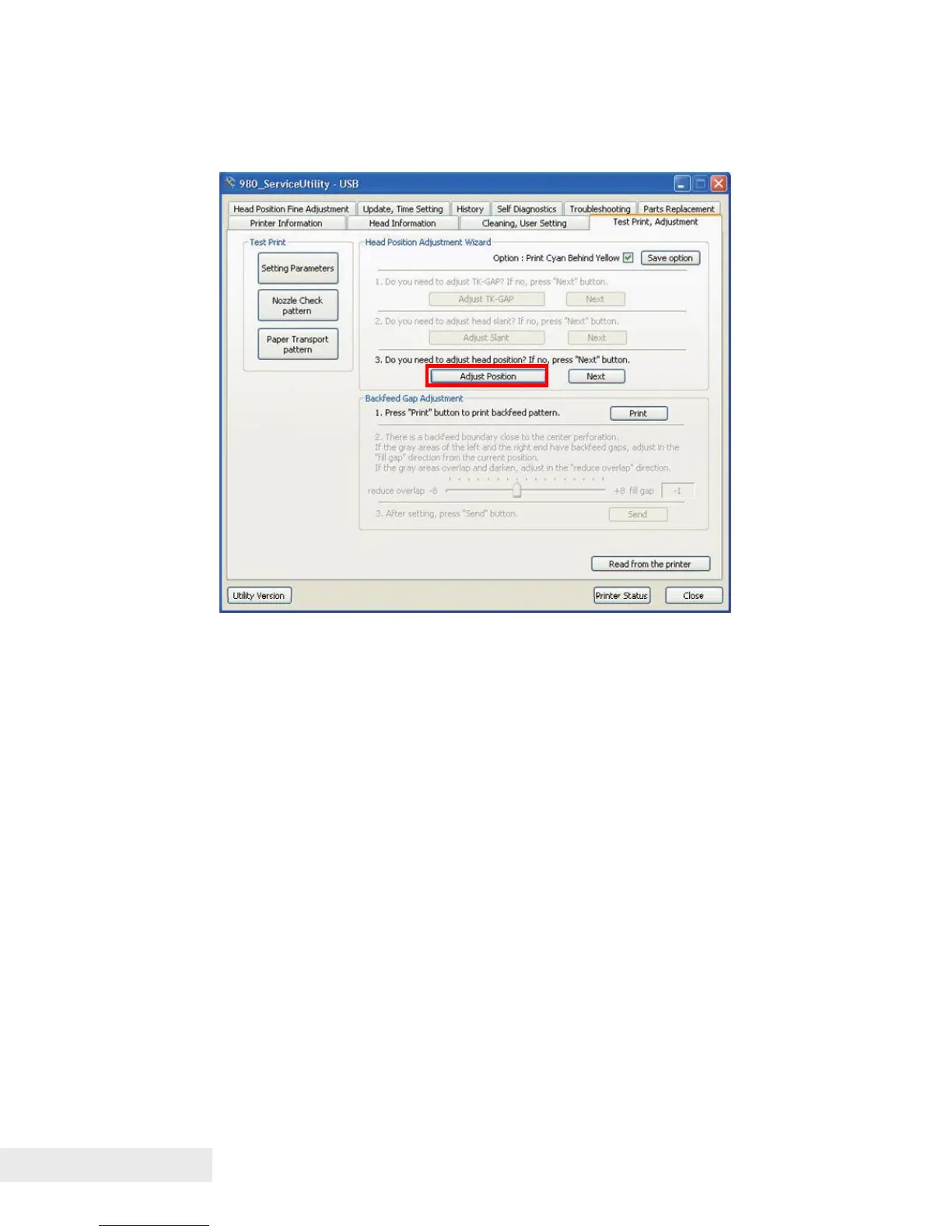

1) Click [Adjust Position] to display the [Print Head Position Adjustment] dialog

box.
