Step-by-Step Installation Instructions

100-11672 - Rev D Page 85

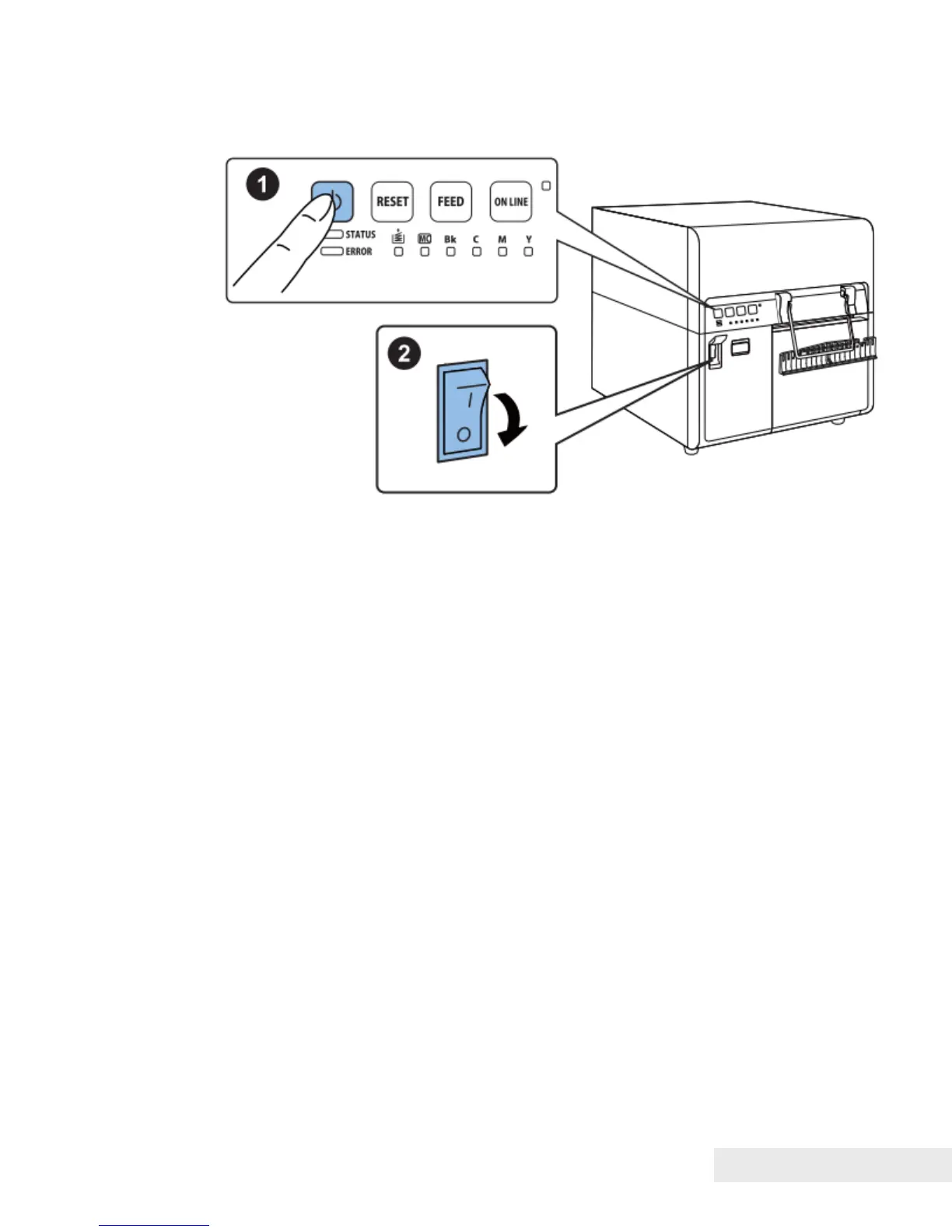

11)Press Power Key for at least 1 second to place Printer in the sleep mode

(Power Lamp blinks), and then turn off Main Power Switch.
