CAPILLARY TUBE REPLACEMENT INSTRUCTIONS
Upright GDM/T-Series Equipment
TOOLS REQUIRED
Drill
Hole Saw
_” Copper Coupling
Two _” 90° Copper Elbow
Torch
Heat Shield
Tube Cutter
Foam Insulation
Cap Tube Suction Line Assembly
(Supplied)
Liquid Line Filter Drier (Supplied)
Cover (Supplied)
Wire Back Guards
(GDM/T-23 Freezer
Model only require ordering part
number 8729777)
________ STEP 1 __________
Inspect supplied cap tube suction line
assembly. The kit should include one
_ ” suction line, cap tube, accumula-
tor section (shipped loose).
NOTE:
You may have to secure the cap tube
to the suction line with the supplied
foil tape. Be sure to use all of the
supplied cap tube. The excess cap
tube should be coiled up and left
inside the evaporator section.
_________ STEP 2 __________
Remove the power supply to the
cabinet.
________ STEP 3 __________
Recover the refrigerant from the unit.
Evaporator Coil
Accumulator
Capillary
Tube
Suction Line
5/8” Hole

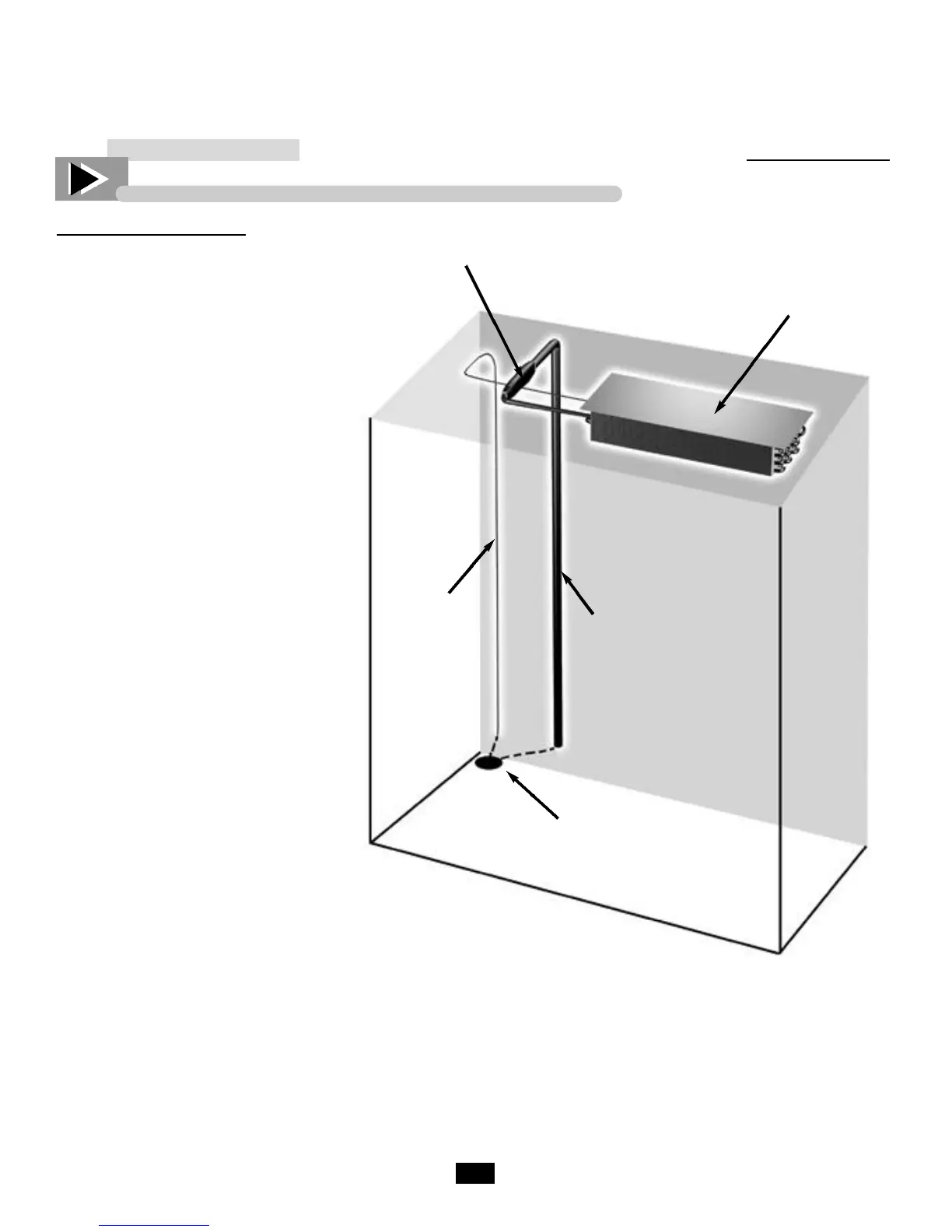

Figure 1.
