___________ STEP 1 ___________
Unplug the cooler and door harness
and remove louver grill. Remove “P”
clip.
___________ STEP 2 ___________
Take the door off the cooler and place
on a flat stable surface. Refer to
Removal and Installation of GDM and
T-Series Swing Door Instructions on
page 58-61.
___________ STEP 3 ___________
Remove door gasket.
___________ STEP 4 ___________
Remove back plastic. This will require
a phillips screwdriver.
___________ STEP 5 ___________
Remove the glass insert. This can be
done by placing a putty knife between
frame and the insert. Then pry the
insert up and out of the frame. T h e
insert will stick due to double sided
tape that is used to hold.
___________ STEP 6 ___________
Remove the strain relief bushing on the
underside of the door frame.
___________ STEP 7 ___________
Pull light channel to expose lamp hold-
er and door harness connection.
___________ STEP 8 ___________
Cut the lamp holder wires directly
above the lamp connectors.
___________ STEP 9 ___________
Remove the door harness.
68
30˚
INSTALLATION INSTRUCTION

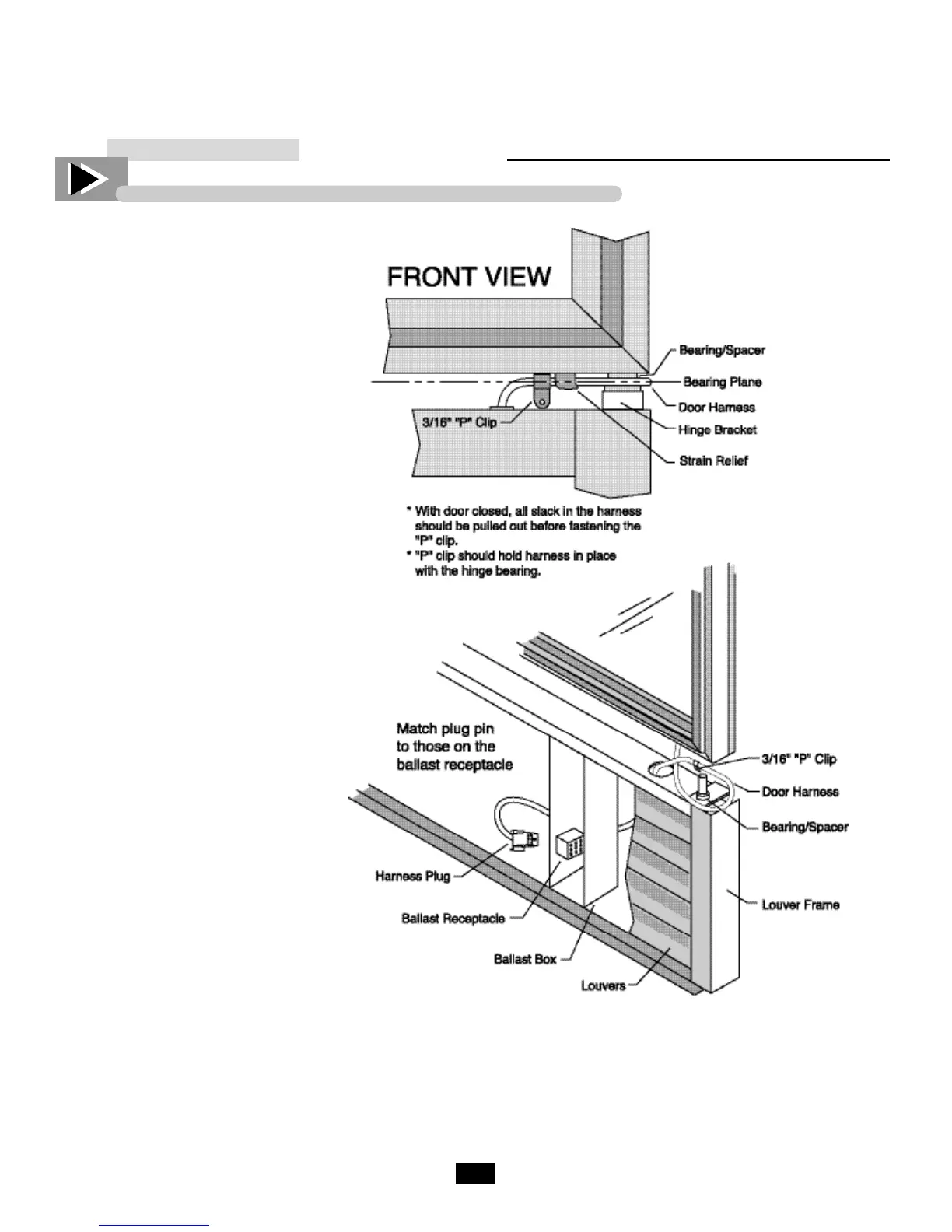

IDL Door-Wire Harness Replacement
