INSTALLATION INSTRUCTION
Vandal Panel Installation for a GDM-33CPT-54
Kit Materials
1. (16) Pop Rivets
2. (8) Mounting Brackets
3. (2) Vandal Panel
__________ STEP 1 __________
Two Mounting Brackets need to be
positioned on the upper left and
right hand corners of the cabinet.
The Mounting Brackets must be off
1/16” down from the top of the cab-
inet. See Illustration one. Drill
holes with 7/32 drill bit and attach
bracket via pop rivets.
__________ STEP 2 __________
The two other Mounting Brackets
are mounted 32 7/8” from the top
of the cabinet to the bottom of the
Mounting Bracket. The two bot-
tom brackets must be installed fac-
ing the opposite direction from the
top two brackets already installed
in Step A. See Illustration 2.
__________ STEP 3 __________
The Vandal Panel slides down on
top of the Top Mounting Brackets
(see Illustration 3). Then the bot-
tom brackets lock onto the Vandal
Panel.
__________ STEP 4 __________
Repeat Procedure for installation of
other vandal panel on back of cabi-
net.

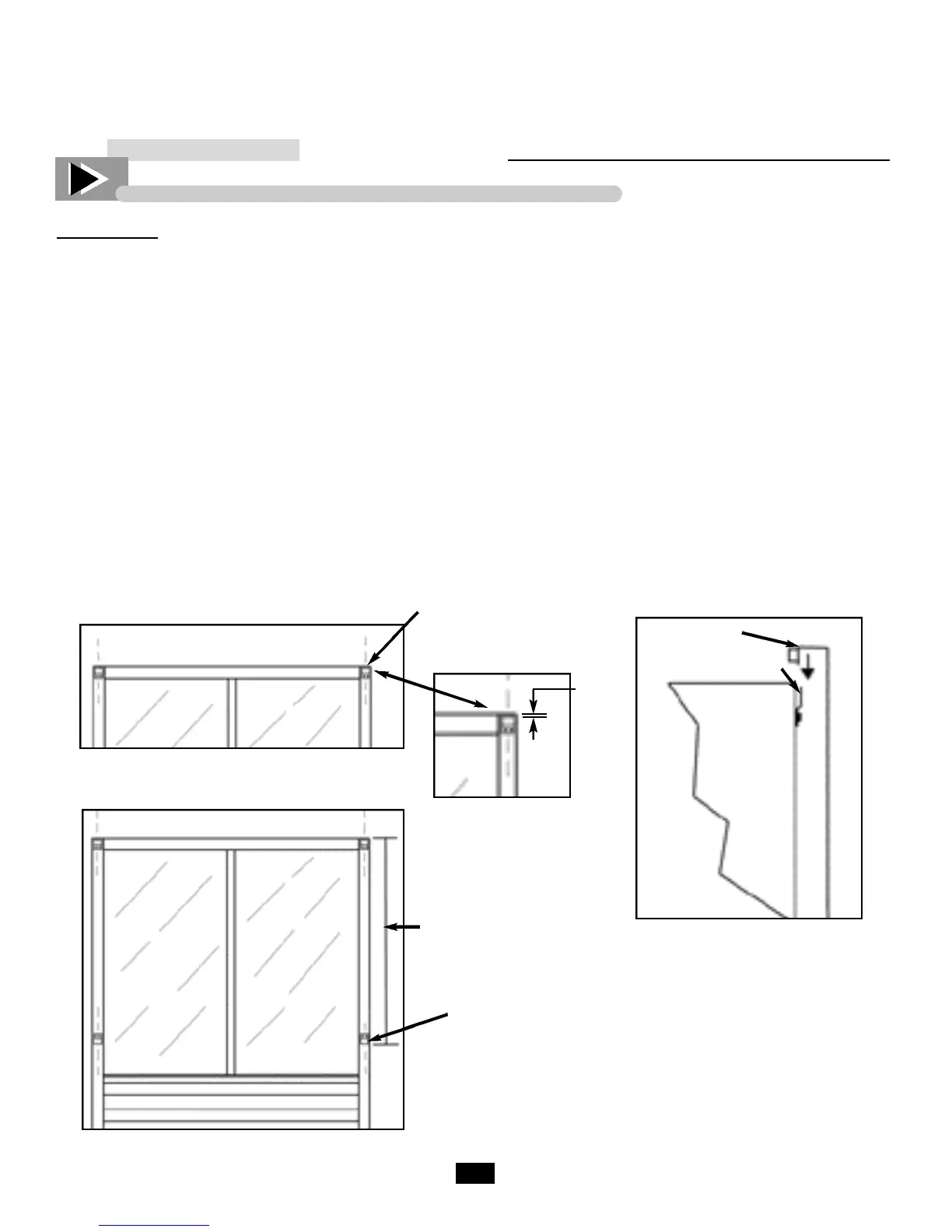

Illustration 1
Illustration 2
Illustration 3
Center Mounting Bracket
on side of end panel
32 7/8” (From top of cab-
inet to base of Mounting
Bracket.
1/16”
Cabinet
Vandal Panel
Mounting Bracket
Bottom Mounting
Bracket should be facing
the opposite direction
from the Top Mounting
Bracket.
