1. Disconnect power from cabinet.
2. Remove door(s) by removing the screws securing upper hinge to the counter top, and pull top of door
towards you.
3. Locate & remove 2-2 3/4 inch screws in the black plastic trim in the top of each door or top drawer opening.
4. Cut silicone seal with razor knife on inside and outside of cabinet, break the silicone seal on both sides
and along the front edge with a putty knife.
5. Lift top upward two-three inches and push backwards, this will unhook top from lip in rear edge of cabinet.
6. To install top, apply a bead of black silicone to the top of the cabinet and, hook top on lip at rear of the
cabinet and pull forward, press down firmly on the top and install screws through cabinet into top.
7. Reinstall doors
To Install New Top
1. Lay cabinet on its back & align doors with edge of cabinet. Pay attention to proper spacing of door along
edge, it should be approximately 5/8". Place new silicone beads inside & out.
2. When installing a new top use 5/8" spacers at outer edge of the door and cabinet to locate door properly.
3. Push mounting plate on
KEIL hinge until parallel
with front of cabinet and
mark center of hinge holes.
Drill holes with #7 drill bit
or .201 Dia. Install door on
cabinet with black plastic
spacer between hinge
bracket and counter top
and run screws into new
holes and remove spacer
blocks.

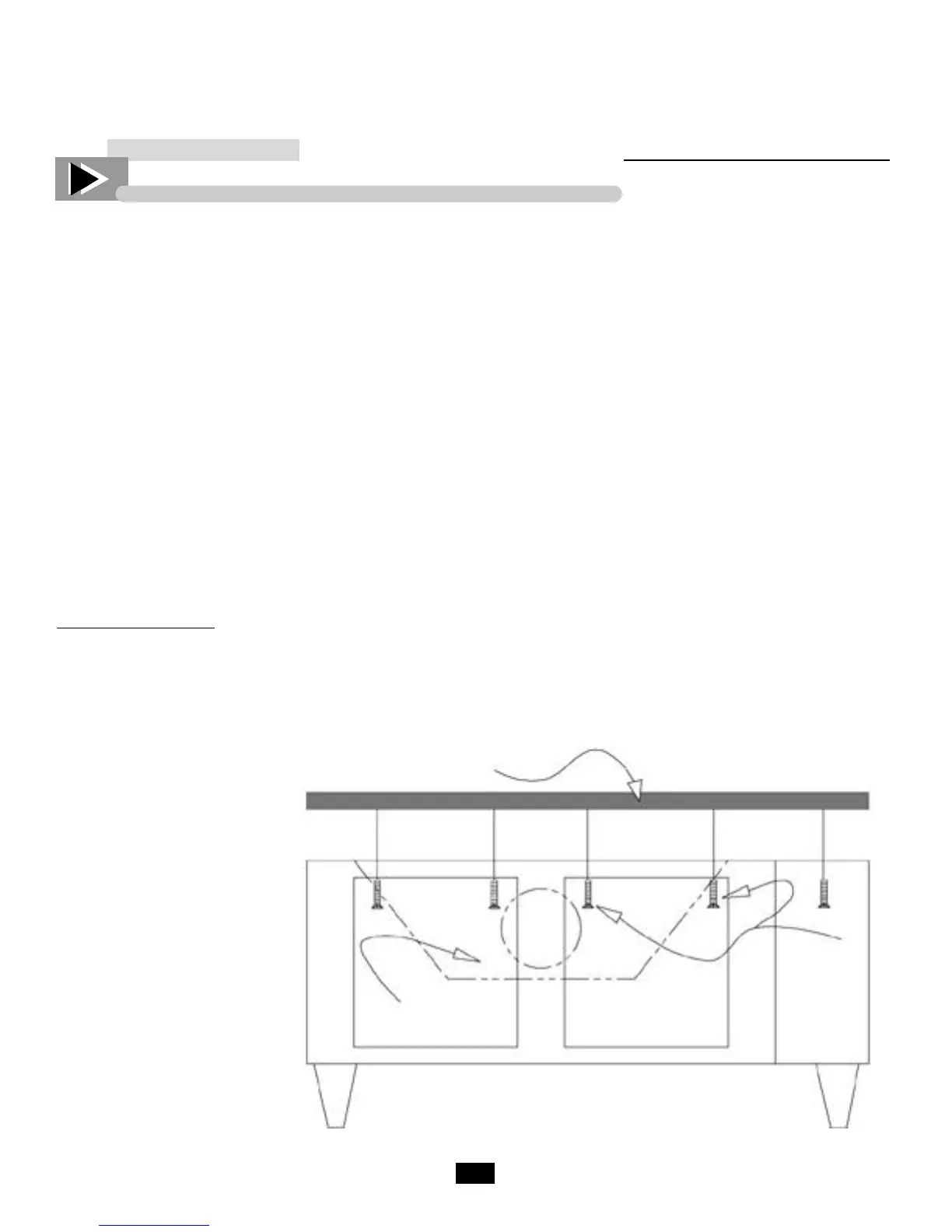

TOP REMOVAL FOR VARIOUS COOLERS
TSSU,TWT,TUC
