REQUIRED TOOLS
• 1/8" drill
• Rivet Tool
• Silicone Caulk
____________ STEP 1 ____________
Make sure that both sides of the cabinet are
free from dirt. Clean if necessary.
____________ STEP 2 ____________

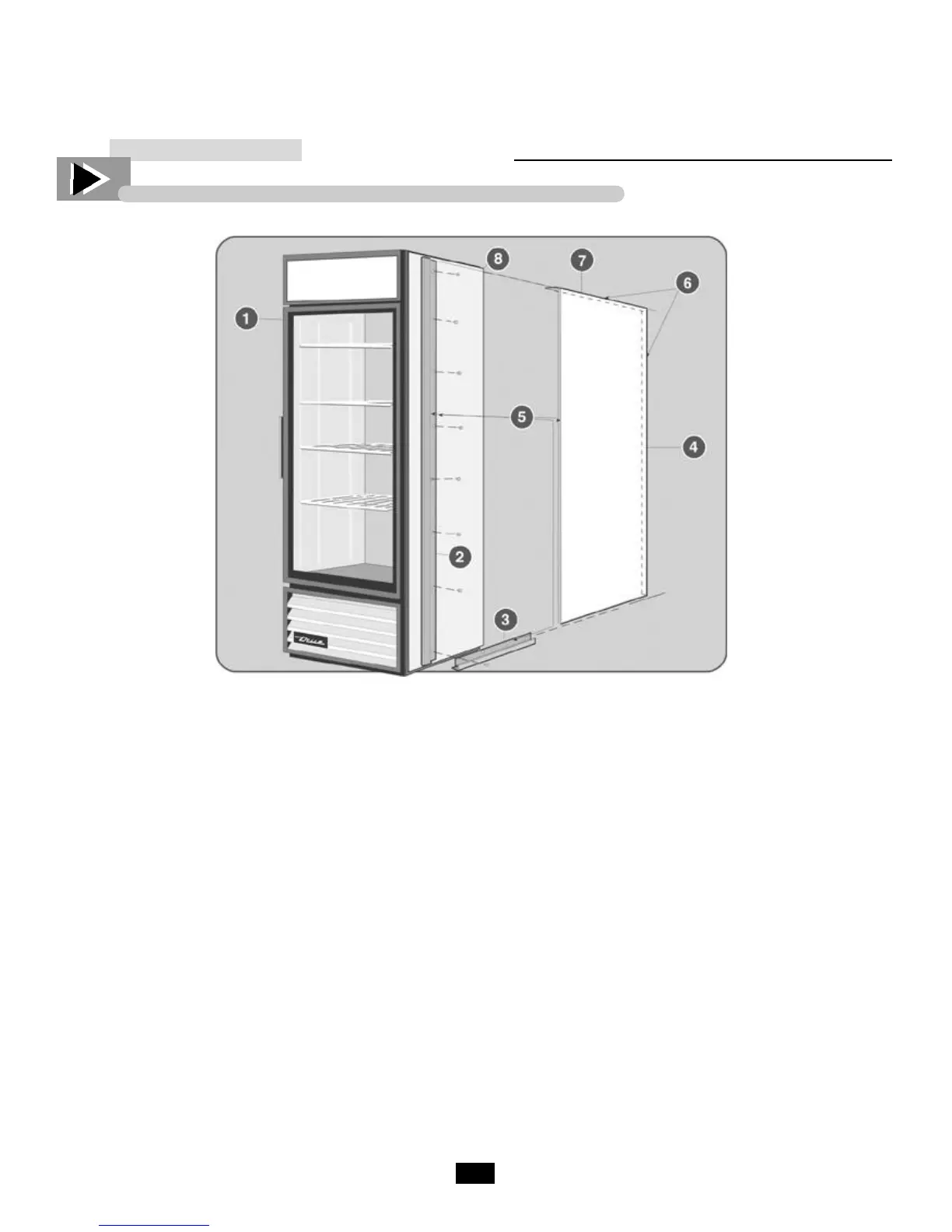

Attach the plastic extrusion to the front
side corner of the cabinet side (see illustra-
tion). Use a 1/8" drill bit to drill through
the extrusion and the cabinet. Use pop riv-
ets provided to fasten extrusion. Drill and
pop rivet every 8" to 10" so that the extru-
sion remains straight.
____________ STEP 3 ____________
Attach the other plastic extrusion to the
bottom side corner of the cabinet (see illus-
tration). Drill and pop rivet every 6" to 8"
so that the extrusion remains straight.
____________ STEP 4 ____________
If the cabinet will be placed outdoors, the
back side of the 3/4" wide flange should be
silicone caulked to stop rain water from
getting behind the panel.
____________ STEP 5 ____________
Position and place artwork panel against
cabinet so that the 3/4" wide flange is at
the top and rear of the cabinet. Slide
panel into the slots provided in the
plastic extrusions.
____________ STEP 6 ____________
Check to see that there is no gap under the
top and rear 3/4" wide flange.
____________ STEP 7 ____________
Drill and pop rivet the artwork panel to the
cabinet using the 3/4" wide flanges provid-
ed at the rear of the cabinet and the top.
____________ STEP 8 ____________
Wipe off excess silicone caulking when
sealing is completed.
INSTALLATION INSTRUCTION
SIDE PANEL REPLACEMENT - GDM SERIES
