INSTALLATION INSTRUCTION
END CAP REPLACEMENT - T-SERIES SWING DOOR (continued)
___________ STEP 13 ___________
Drill pilot holes for rivets using .30 drill
bit. Four down the front edge, and three
across top and bottom edges (see figure 5).
___________ STEP 14 ___________
Install rivets.
Replace drilled out pop rivet in top right
side gasket base.
___________ STEP 15 ___________
Carefully lift cabinet to upright position.
Drill 3 holes, one at top, one in middle,
one at the bottom. (see figure 6)
Install rivets.
___________ STEP 17 ___________
If necessary use black silicone to create a
good seal where front corner meets plas-
tic gasket molding. Use silver/gray sili-
cone caulk to seal rear raw edge.
___________ STEP 18 ___________
Reinstall doors and louvers.

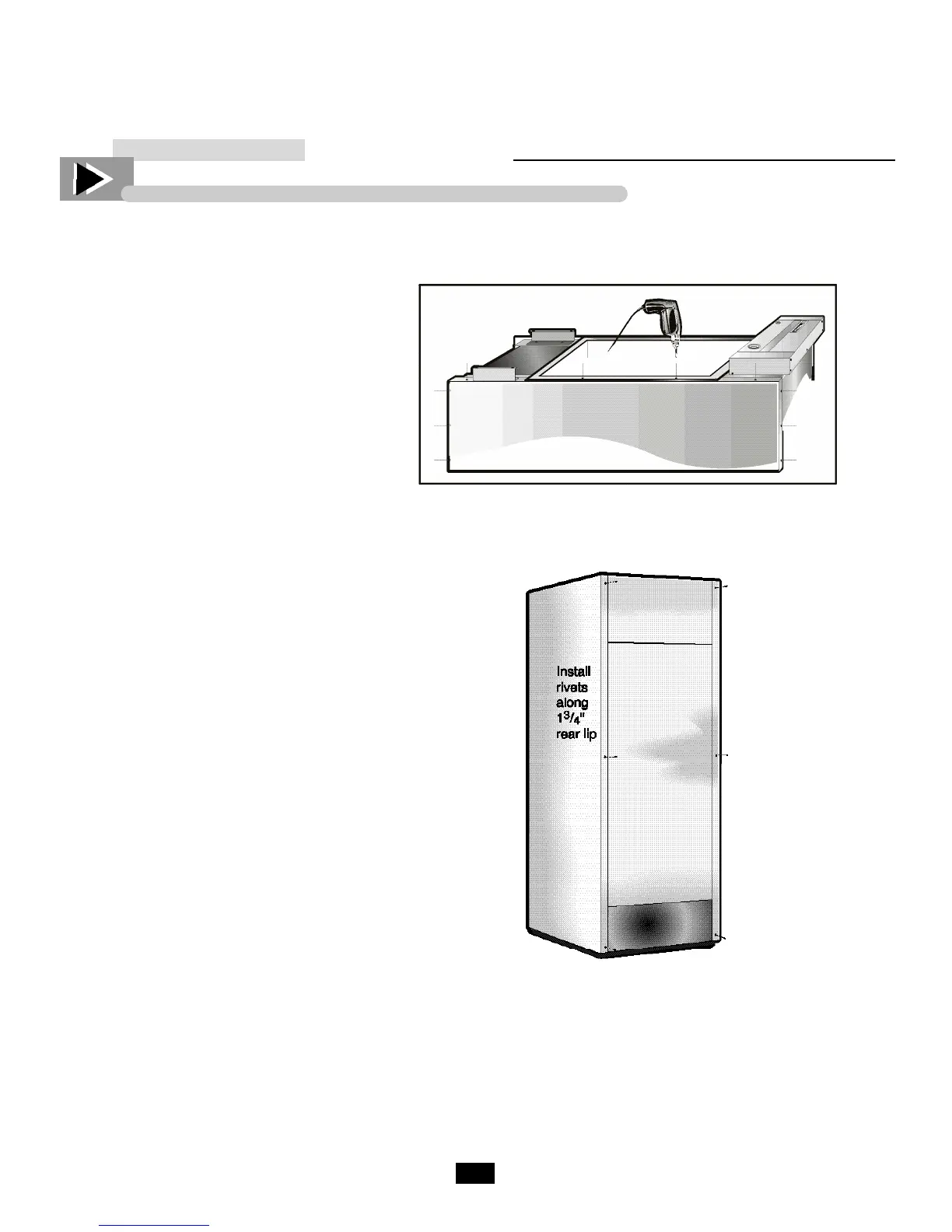

FIGURE 6.
FIGURE 5.
