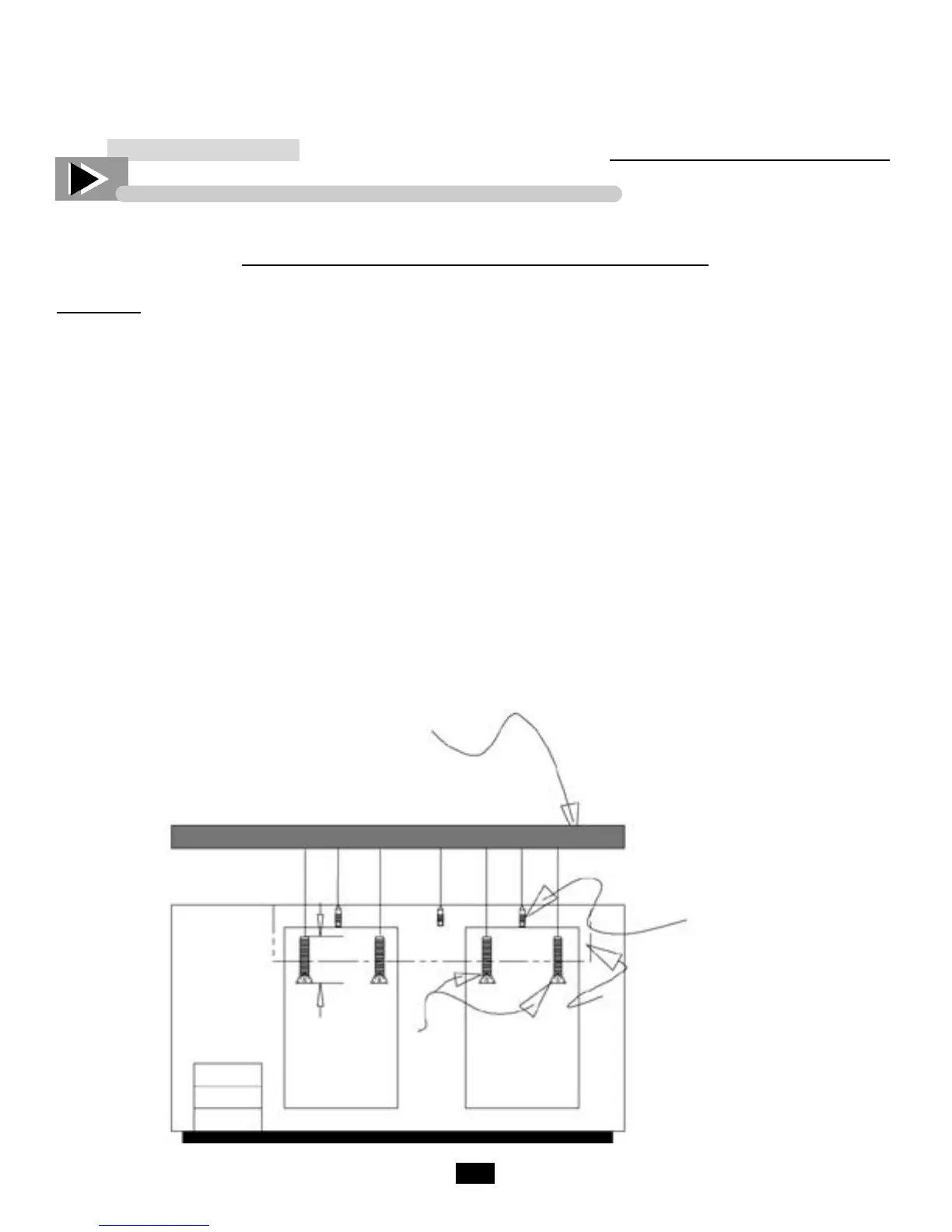

TOP REMOVAL FOR TBB & TDD UNITS
Top
Evaporator
Housing Screws
Evaporator Housing
Top Screws
3”
TOP REMOVAL FOR TBB & TDD UNITS
Disconnect the power to the unit.
Locate and remove screws on the inside of the cabinet going through the evaporator housing and into the bot-
tom of the counter top.
Locate and remove the screws securing the line set cover to the top located to the left of the evaporator housing.
Remove the two screws inside the door jamb going through the jamb into the bottom of the top. There will be
two screws in each door on multiple door units.
Cut the silicone seal that runs along both ends and along the back of the unit. Silicone seal is wrapped around
the front wall of multiple door units.
To remove top lift front up approximately 2-3 inches and push backward to unlock lip in back of top.
To reinstall top, carefully align the groove in the back with lip on cooler base. Slide forward, reinstall all
screws and re-silicone around cabinet edge.
