57
__________ STEP 1 __________
Before removing the doors from the
cabinet, mark each door in the area
where the wiper gasket will be
applied at the point of the center leg
on the top and bottom door channels.

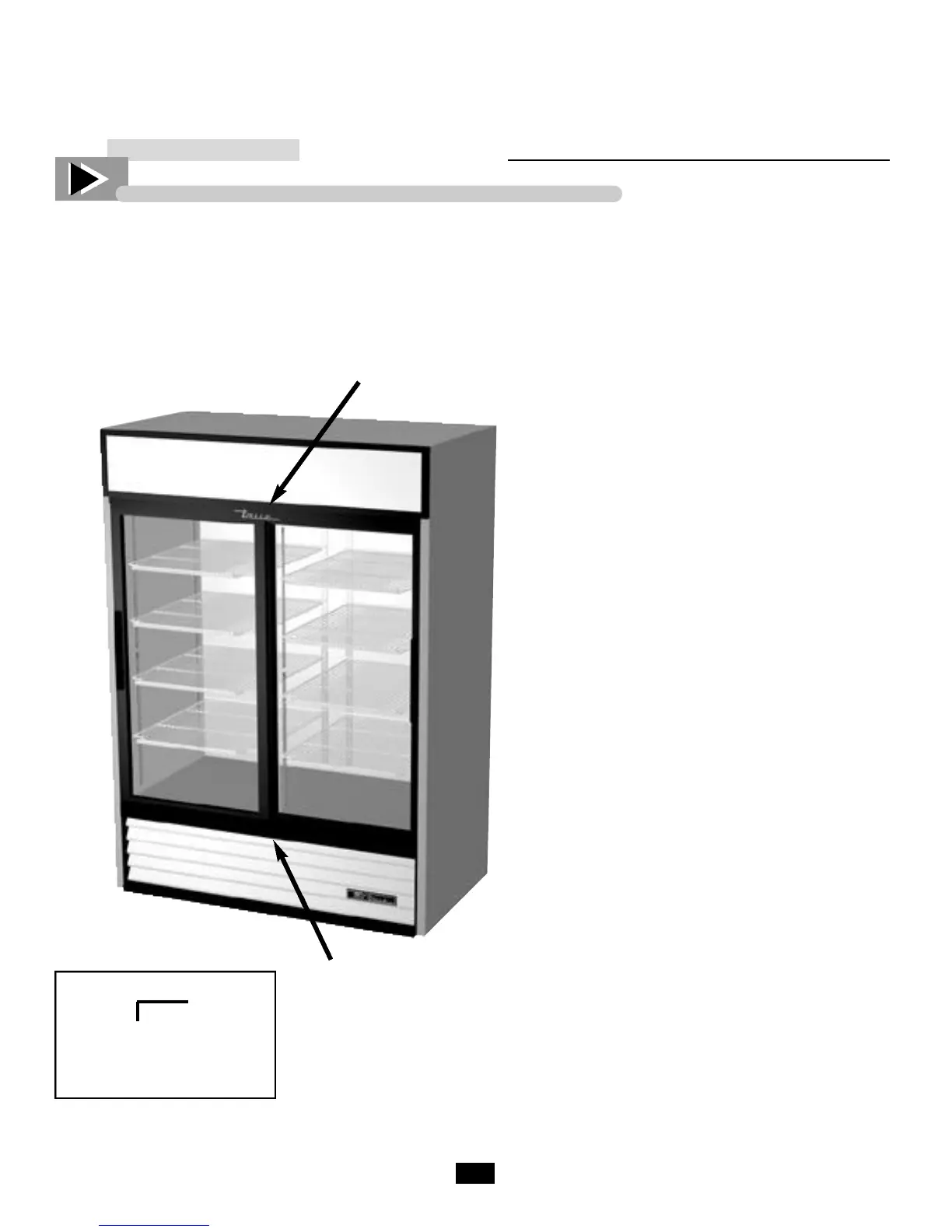

See #1. Use the reference marks for
the vertical positioning of the wiper
gasket.
__________ STEP 2 __________
Remove the doors by lifting the left
door up and swing the bottom out.
Remove the door cord attached to the
top of the door. Repeat these steps
for right door. Place the left door
with the handle down and place the
right door with the handle up.
__________ STEP 3 __________
Drill out the rivets that secure the
wiper Gasket and remove all residues
from the door surface where the
wiper gasket will be applied.
__________ STEP 4 __________
Peal off the adhesive tape on the back
side of the gasket and apply one
wiper gasket to the back of the out-
side (left) door. Position the wiper
gasket at least 3/8” in from the door
frame on the inside (right) door.
__________ STEP 5 __________
Drill one 1/8” hole through the top
and Bottom of the wiper gasket hold-
er and in to the door frame about _”
from the top of the blade and replace
the pop rivets.
__________ STEP 6 __________
On coolers with 3 doors, locate and
adjust the blade to the back frame
in the center door as needed making
sure that the right door will operate
freely and secure it with pop rivets.
Make sure that the wiper gasket
does not drag against the door tracks.
INSTALLATION INSTRUCTION
Wiper Gasket Installation
REQUIRED TOOLS
• Drill
• 1/8” Drill Bit
• Pop Rivet (2 Per Door)
SHOULD YOU HAVE ANYADDITIONAL QUESTIONS, PLEASE FEEL
FREE TO CONTACT THE TECHNICAL SERVICE DEPARTMENT.
Top View of Wiper Gasket.
The short side of the gasket is
what seals between the doors.
1
