REQUIRED TOOLS
• Two Drift Punches
(or two 1⁄8" drill bits)
• Needle-Nose Pliers
• Phillips Head Screwdriver
• Slotted Screwdriver
NOTE:
For greater safety and ease of
installation it is recommended
that two people assist in
replacement procedure.
___________ STEP 1 ___________
Turn the cooler off.
___________ STEP 2 ___________
Remove the four mounting screws
from louvered grill and remove grill.
___________ STEP 3 ___________
For models with the integrated door
light feature, unplug light from ballast
box.
IMPORTANT:
Freezer doors have heater wires
which must be unplugged before
doors can be removed.
___________ STEP 4 ___________
Locate the top hinge assembly.
\
___________ STEP 5 ___________
Remove Door Stop Pin by placing a
drift punch or 1/8" drill bit into the stop
pin hole two holes to the left (for right
side door) of the stop pin position.
With drill bit firmly anchored in posi-
tion, apply back pressure to the left and
remove the stop pin with a needle-
nosed pliers. While firmly holding the
drill bit with your left hand begin rotat-
ing the hinge shaft to the right reliev-
ing spring tension. Insert second drift
punch or drill bit into hole to the left
and repeat process until all spring ten-
sion is relieved.
In some instances it is necessary to
relieve spring pressure one hole posi-
tion at a time until spring pressure is
relieved.
NOTE
Operation is reversed
for left side door.

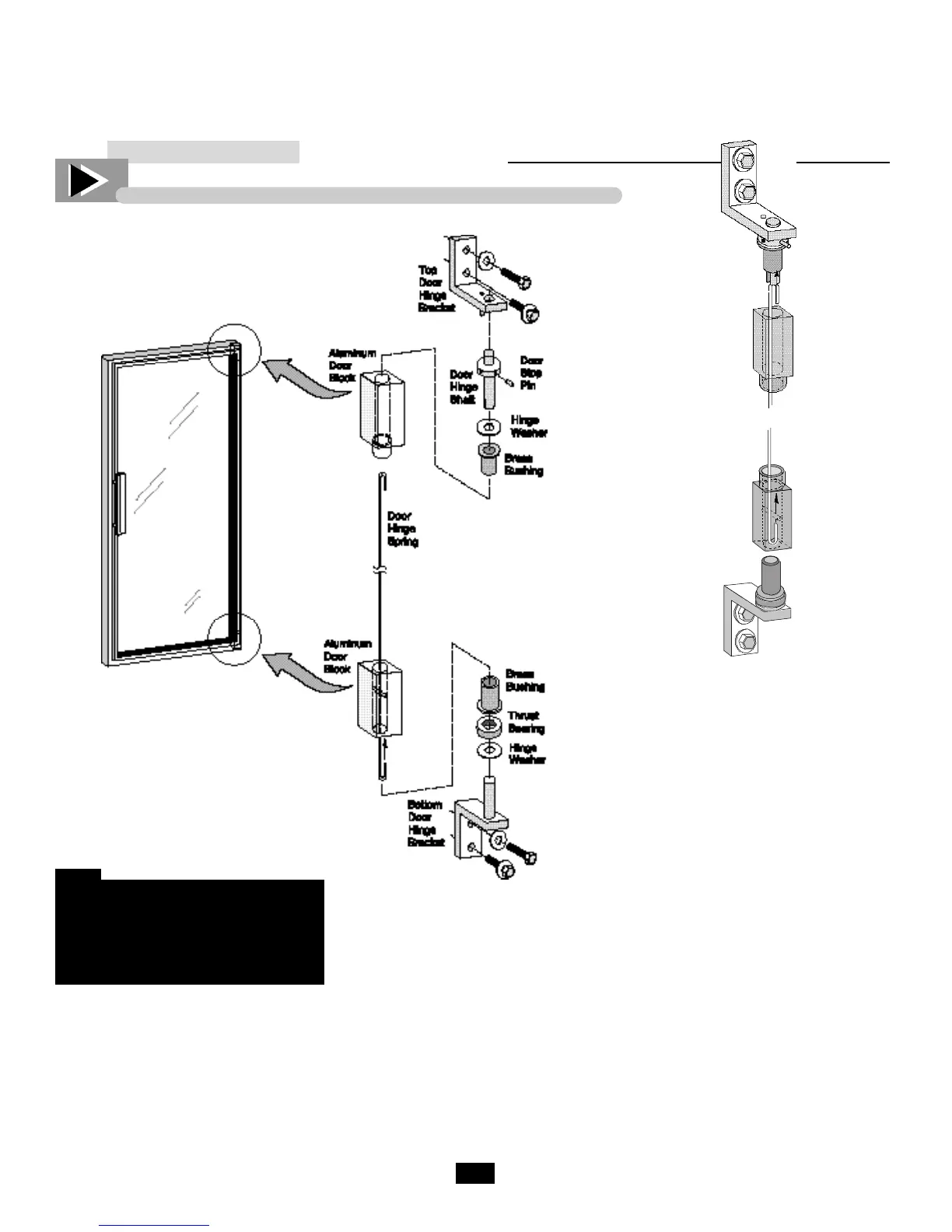

Figure 1
INSTALLATION INSTRUCTION
Removal and Installation of GDM &
Old Style T-Series - Swing Door
