INSTALLATION INSTRUCTION
TORSION SPRING REPLACEMENT New Style T-Series & GDM
Radius Front- SWING DOOR
REQUIRED TOOLS
• Drift Punch (or 1⁄8" drill bit)
• Needle-Nose Pliers
• Phillips-Head Screwdriver
• Slot-Head Screwdriver
• Wrench (3⁄8")
___________ STEP 1 ___________
Turn the cooler off.
___________ STEP 2 ___________
Locate the top hinge assembly.
___________ STEP 3 ___________
If spring remains taut, relieve tension
by placing a drift punch or 1/8" drill bit
into the stop pin hole, two holes to the
left (for right side door) of the stop pin
position.
___________ STEP 4 ___________
With drill bit firmly anchored in posi-
tion, apply back pressure to the left and
remove the stop pin with needle-nosed
pliers. While firmly holding the drill bit
with your left hand begin rotating the
hinge shaft to the right relieving spring
tension. Insert second drift punch or
drill bit into hole to the left and repeat
process until all spring tension is
r e l i e v e d .
In some instances it is necessary to
relieve spring pressure one hole posi-
tion at a time until spring pressure is
relieved.
NOTE:
Operation is reversed for
left side door.

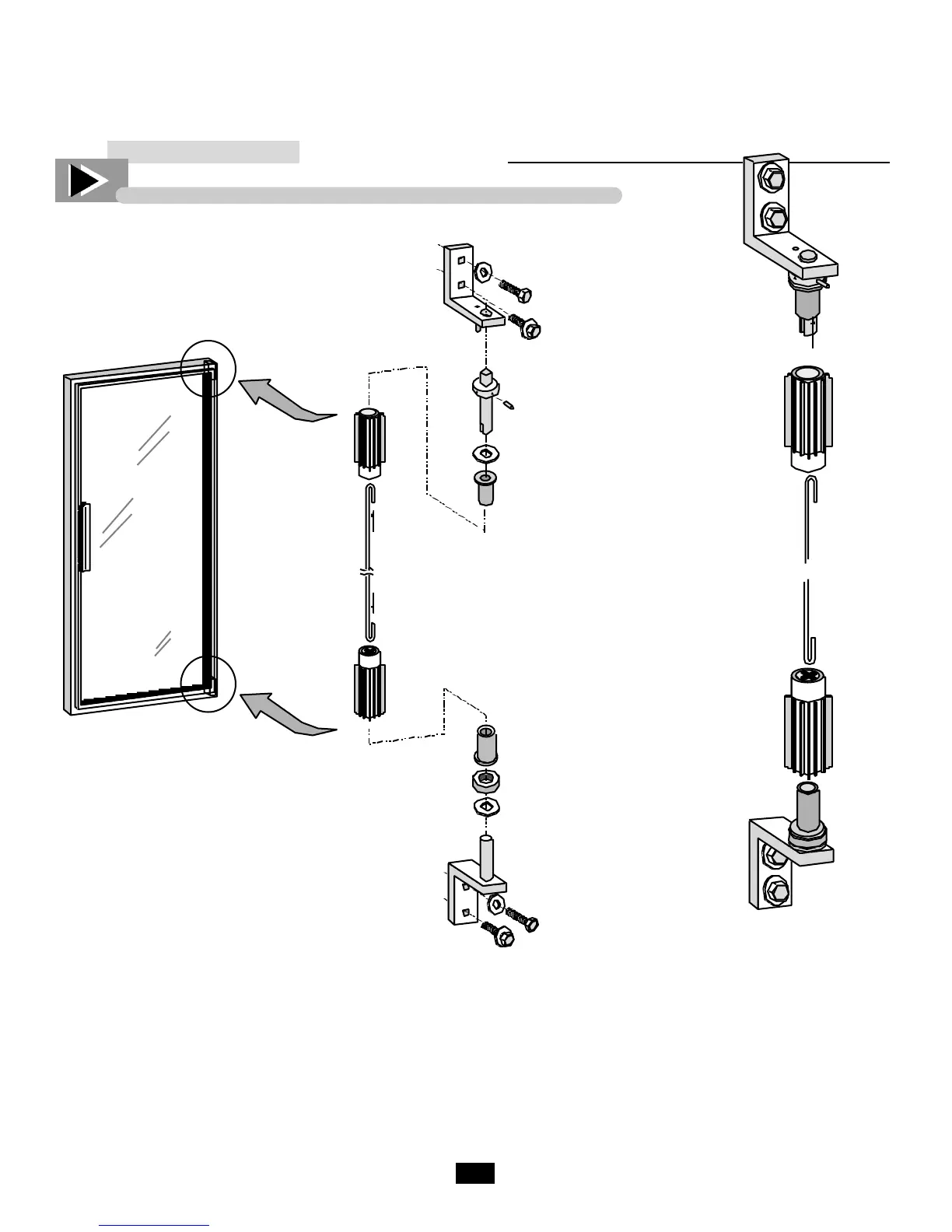

Figure 1
there is no need for steps 1-4.
