___________ STEP 9 ___________
When in place, drill with 3/16" bit and
fasten with rivets.
NOTE:
The right side of the cooler is
d e t e r mined when facing the cooler.
___________ STEP 10 ___________
Two (1/4") holes need to be drilled in
both the left and right vertical door
tracks. Lay the "left side" template
against the front and inside edge of the
cooler. The bottom edge of the tem-
plate must rest on the top of the lower
plastic door track. (See figure "3".)
Transfer the holes from the template
into the side wall of the cooler. Drill
the holes only 1" deep. Do not drill
through the walls.
Repeat this operation for the right side.
(templates are marked left and right
and the top is also indicated.)

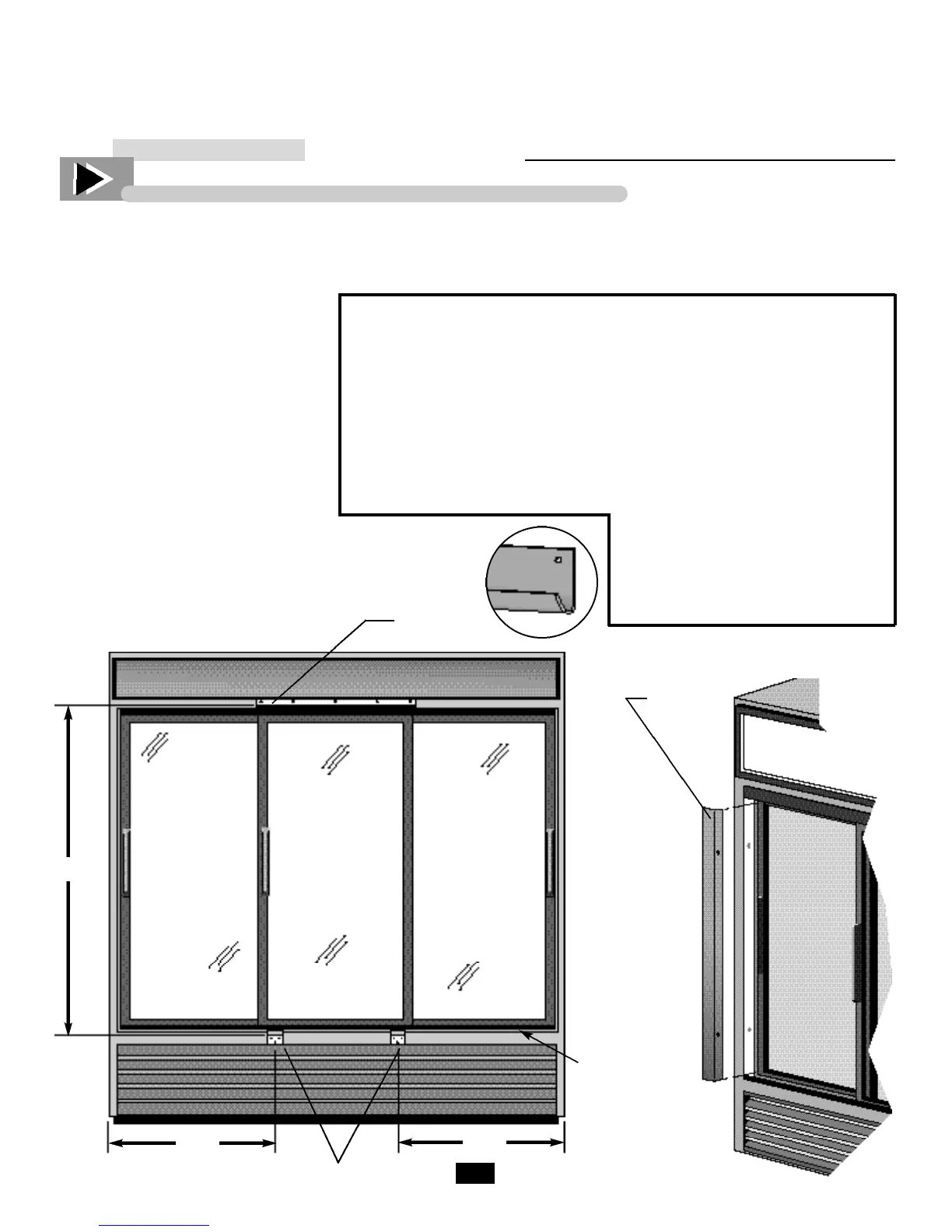

Figure 2. Figure 3.
To Mount The Panels
___________ STEP 1 __________
Slide the right hand panel into place
by guiding the two pins into the
drilled holes in the vertical door track.
Push the panel to the right and back
until the foam tape rest against the
center door. Repeat for the left panel.
___________ STEP 2 __________
Hang the lip of the center panel on
the lip on bracket "A".
NOTE:
Panels may be shipped in the
locked position - in this case turn
lock to fit panel over bracket “B”
___________ STEP 3 __________
Lock in place by turning the key
locks to engage brackets "B".
Bracket “A”
Hole Locator
Strip
Bracket(s) “B”
Bottom Door
Track
INSTALLATION INSTRUCTION
Vandal Panel - GDM-69 ...continued
53”
26
1/2
”
26
1/2
”
