TSC TDP-247 Programming Manual

TSC AUTO ID Technology Co., Ltd. 69 Copyright 2013 All Rights Reserved.
 200 DPI: 1 mm = 8 dots
300 DPI: 1 mm = 12 dots
 Recommended max. height of reversed black area is 12 mm at 4” width. Height of reversed
area that is larger than 12 mm may damage the power supply and affect the print quality.
 Max. print ratio is different for each printer model. Desktop and industrial printer print ratio
is limited to 20% and 30% respectively.
 This command has been supported since V6.56 EZ and later firmware.

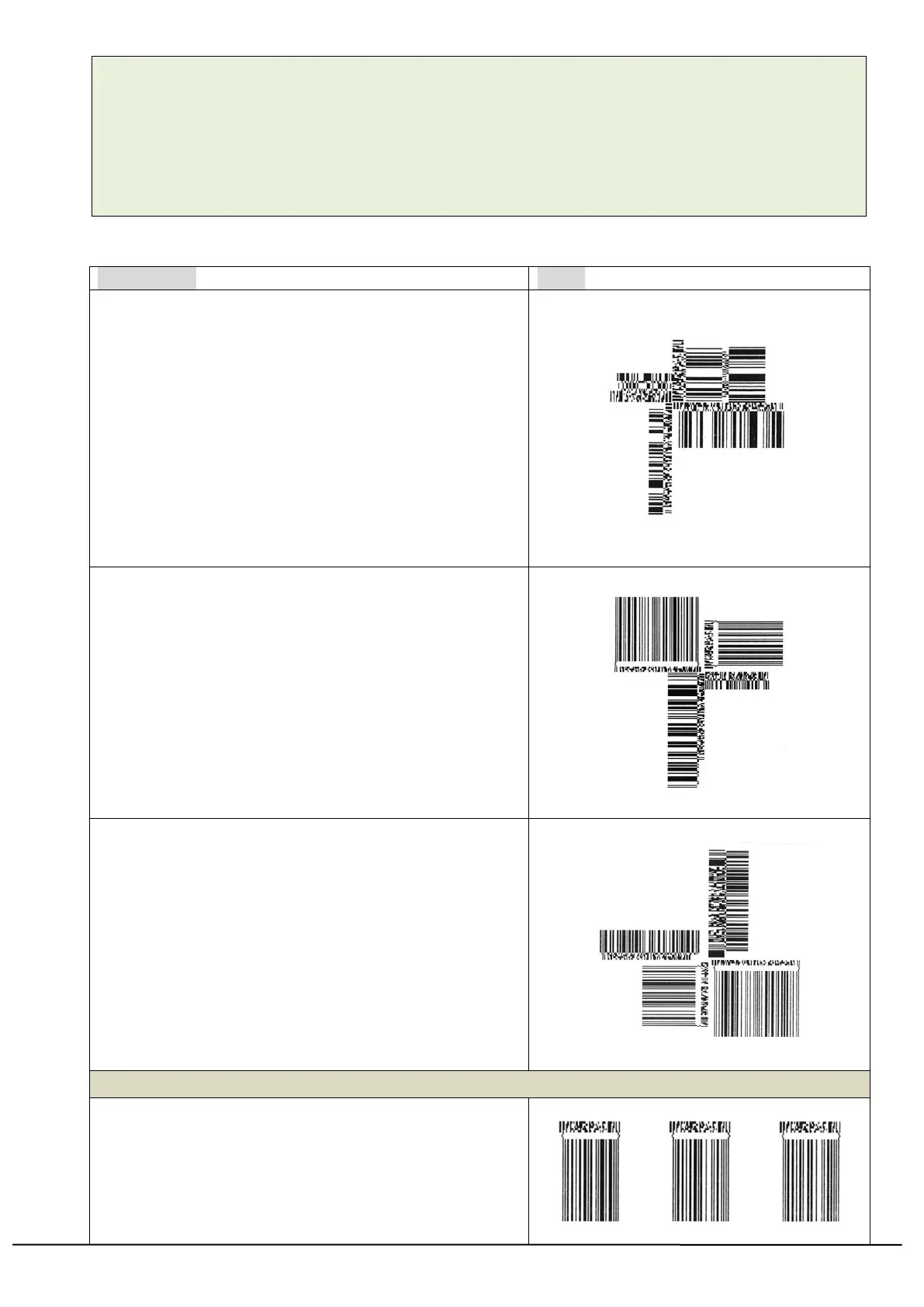

Example
Sample code
Result
SIZE 100 mm,100 mm
GAP 0,0
DIRECTION 1
CLS
RSS 300,300,"RSS14",0,2,2,"1234567890|ABCDEFG"
RSS 300,300,"RSS14T",90,2,2,"1234567890|ABCDEFG"
RSS
300,300,"RSS14S",180,2,2,"1234567890|ABCDEFG"
RSS
300,300,"RSS14SO",270,2,2,"1234567890|ABCDEFG"
PRINT 1,1
SIZE 100 mm,100 mm
GAP 0,0
DIRECTION 1
CLS
RSS 300,300,"RSSLIM",0,2,2,"1234567890|ABCDEFG"
RSS
300,300,"RSSEXP",90,2,2,22,"1234567890|ABCDEFG"
RSS 300,300,"UPCA",180,2,2,"1234567890|ABCDEFG"
RSS 300,300,"UPCE",270,2,2,"000|ABCDEFG"
PRINT 1,1
SIZE 100 mm,100 mm
GAP 0,0
DIRECTION 1
CLS
RSS 300,300,"EAN13",0,2,2,"123456789012|ABCDEFG"
RSS 300,300,"EAN8",90,2,2,"1234567|ABCDEFG"
RSS
300,300,"UCC128CCA",180,2,2,25,"1234567890|ABCDEFG"
RSS
300,300,"UCC128CCC",270,2,2,25,"1234567890|ABCDEFG"
PRINT 1,1
Example of UPCE mode
SIZE 4,1
GAP 0,0
DIRECTION 1
CLS
REM UPCE Rule 1: 00abc0000hij = abhijc, where c = 0-2
RSS 10,10,"UPCE",0,2,2,"001200000456|ABCDEFG"
RSS 210,10,"UPCE",0,2,2,"001210000456|ABCDEFG"

TSC TDP-247 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Communication Interface	USB 2.0, RS-232
Power Supply	100-240V AC, 50/60 Hz
Operating Temperature	41°F - 104°F (5°C - 40°C)
Operating Humidity	85% non-condensing
Max. Print Width	4.09" (104 mm)
Label Width	1.18" - 4.33" (30 mm - 110 mm)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
