TTP-245 / TTP-343
65

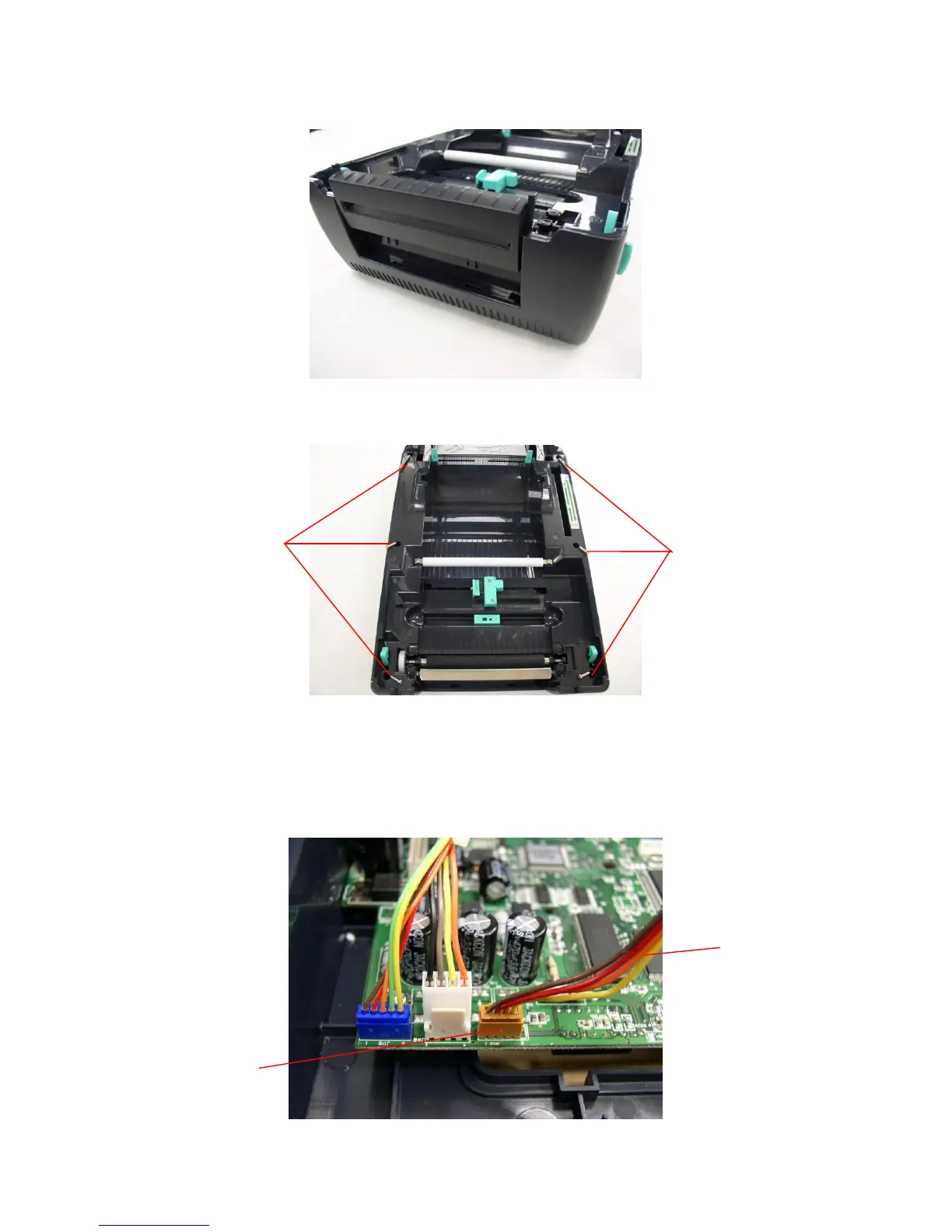

6. Pull up the front panel from the lower cover.
7. Remove the 6 screws in lower inner cover.
8. Lift up the lower inner cover from the Lower Cover.
9. Install the 4 pin connector of the cutter onto JP10 on the main board. Pull the wire
of the 4-pin connector through the slot of lower inner cover front side. Then, put
back the lower inner cover.
Location
JP10
Screws
Screws
wire of the
4-pin connector
