10.BCD DATA OUTPUT
87

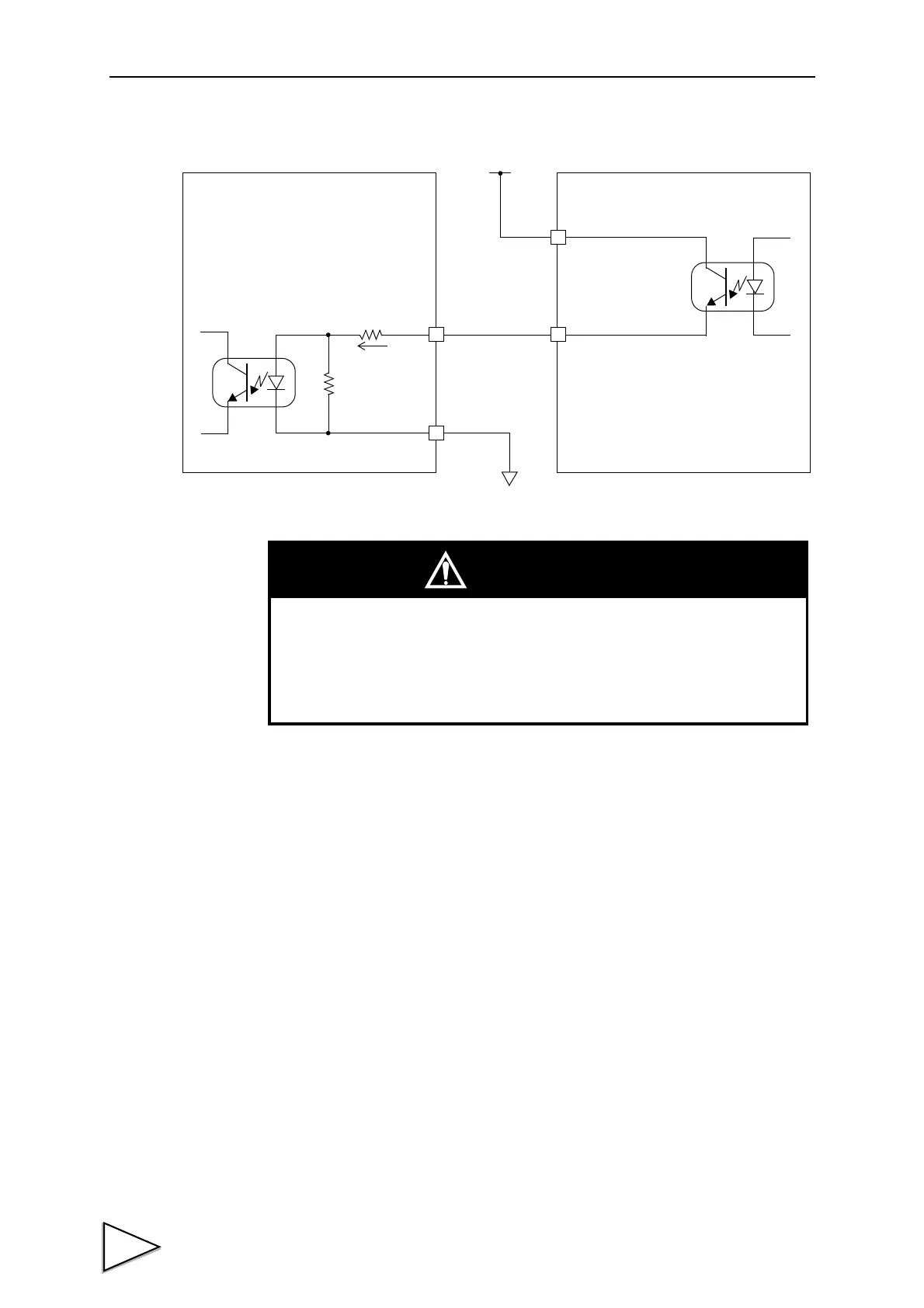

• Input
COM
Out
Vceo=30V（max）
In
0V
PLC output unit etc.
Souece type
F320
A16，B16
A14，B14
Ic=20mA（max）
4.7k
+24VRTN
+24V
CAUTION
• Avoid applying external voltages to the signal input circuit.
• Use external elements which withstands Ic=10mA or above
• Leakage current from external element must be 30μA or below.
