11.D/A CONVERTER
93
Example of Setting
In the case where:
D/A output mode.............0 (linked with indicated value)
D/A zero setting ..............00100
D/A full scale setting ......02100
11-1-3. About D/A Resolution
The resolution of the D/A converter is 1/10000 with respect to 0 to ±10V.
In other words, the minimum unit of voltage is:
(+10 to (-10V)) × 1/10000 = 2mV.
Also, the minimum unit of indicated value is:
(D/A full scale set value - D/A zero set value) × 2 × 1/10000.

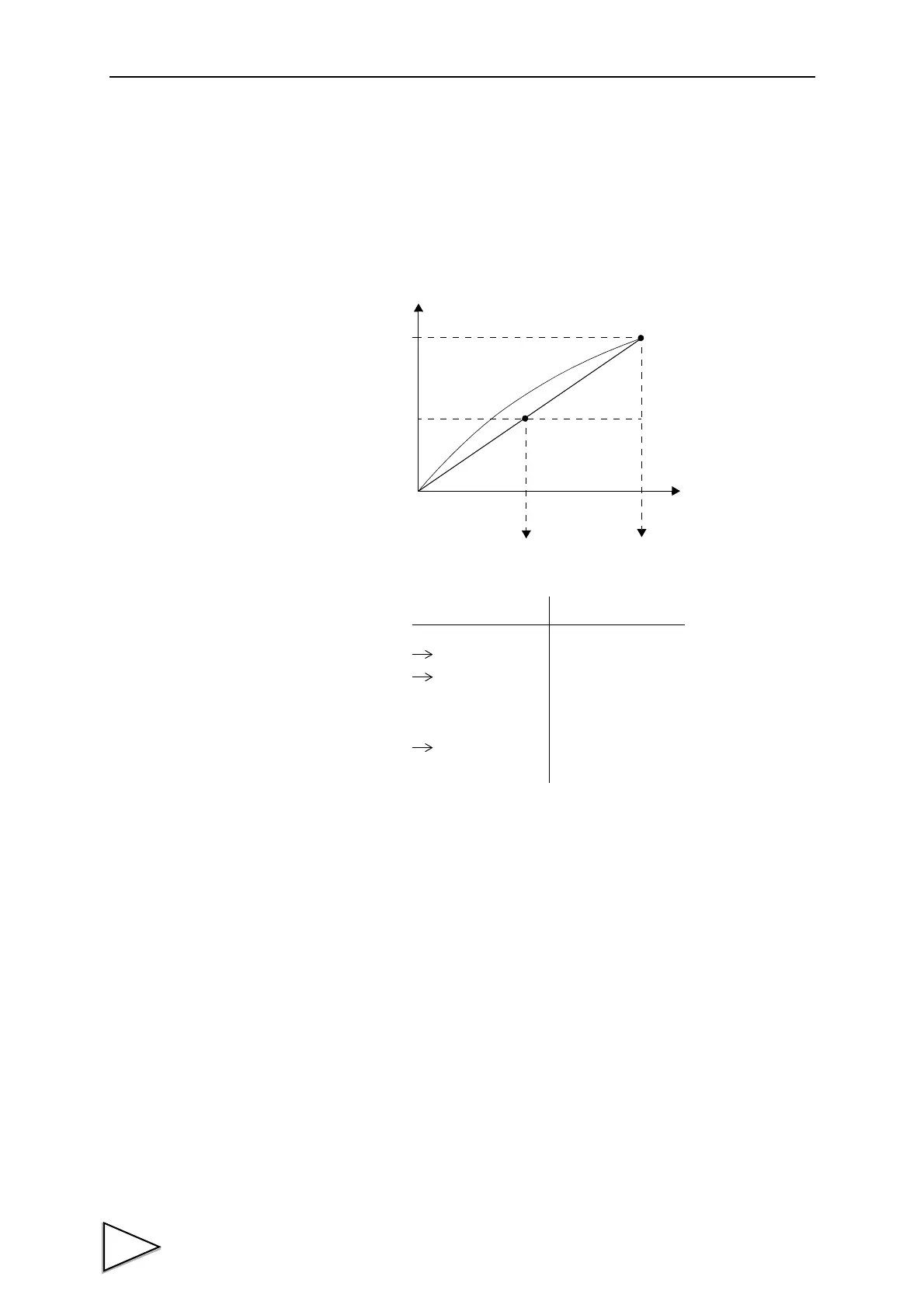

Voltage
（V）
10
-10
Indicated value
D/A full scale set valueD/A zero set value
0
Resolution 1/10000
100 2100-1900
Indicated value Voltage (V)
-1900
100
1100
1600
2100
2120
-10.00
0.00
5.00
7.50
10.0
10.1
Zero
Full scale
Full scale
