3.CONNECTION
18
3-3. Connecting High / Low Limit Relays

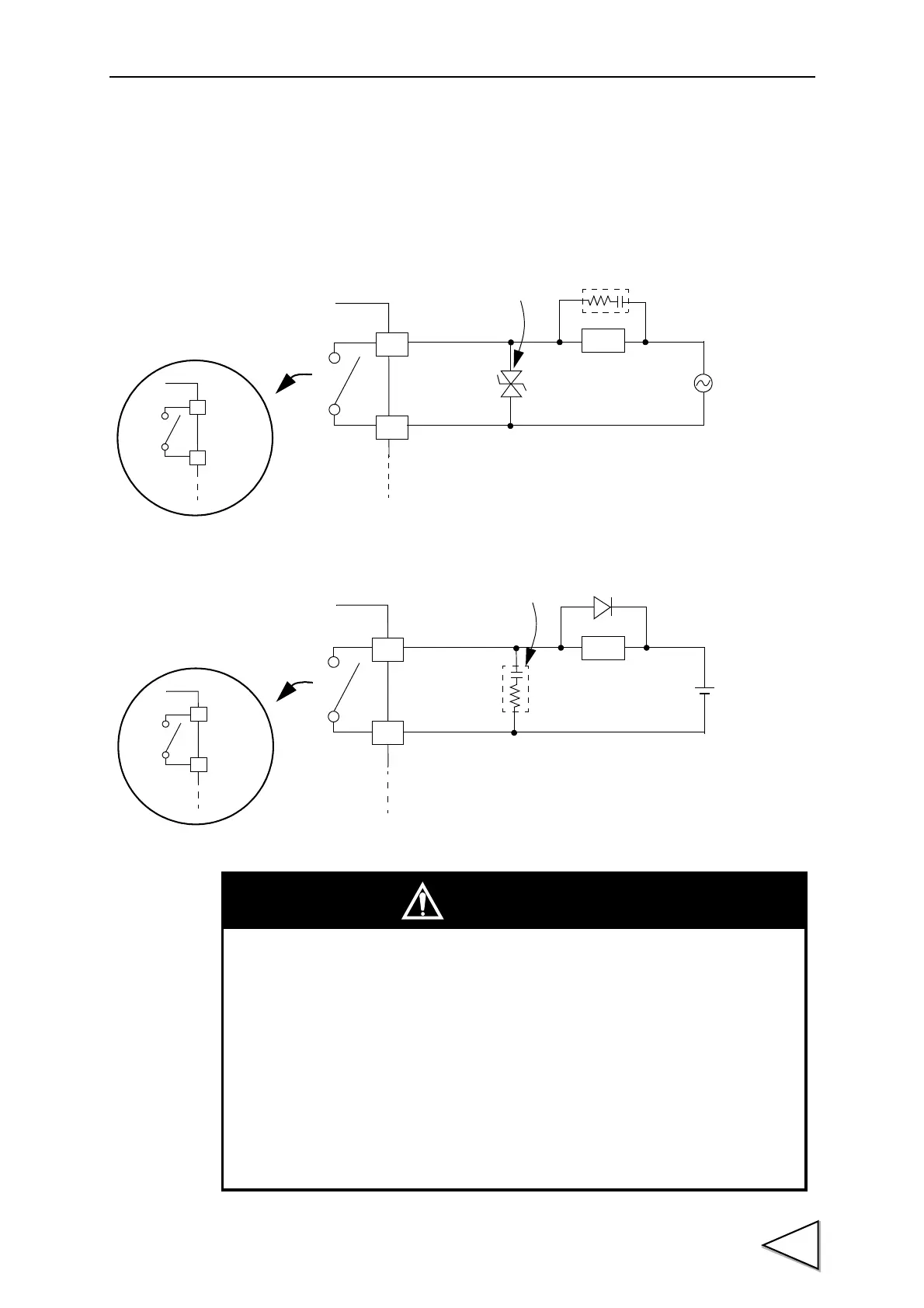

• Connecting External Load
[ High limit relay ]
N/O
COM
A1
A2
Load
Varistor
Spark Killer
AC
← Inside Outside →
F320
AC Power Supply
N/O
COM
A3
A4
← Inside Outside →
F320
[ Low limit relay ]
Spark Killer
DC
← Inside Outside →
COM
N/O
Load
F320
DC Power Supply
N/O
COM
← Inside Outside →
F320
[ Low limit relay ]
A1
A2
A3
A4
Power
Supply
Connect a spark killer as
near the load as possible.
Connect a diode as
near the load as possible.
Power
Supply
CAUTION
Use within the rating (250V AC 0.5A).
Overvoltage and overcurrent may cause breakdown of the relay as well as
shortening its life.
It is recommended to connect a spark killer etc. to the connected load
according to AC/DC (refer to the connection examples). With a noise killer,
you can make the life of the relay longer as well as making it resistible against
noise.
Never short-circuit the load. Should you do it, the equipment will break down.
