7HOLD FUNCTION
69

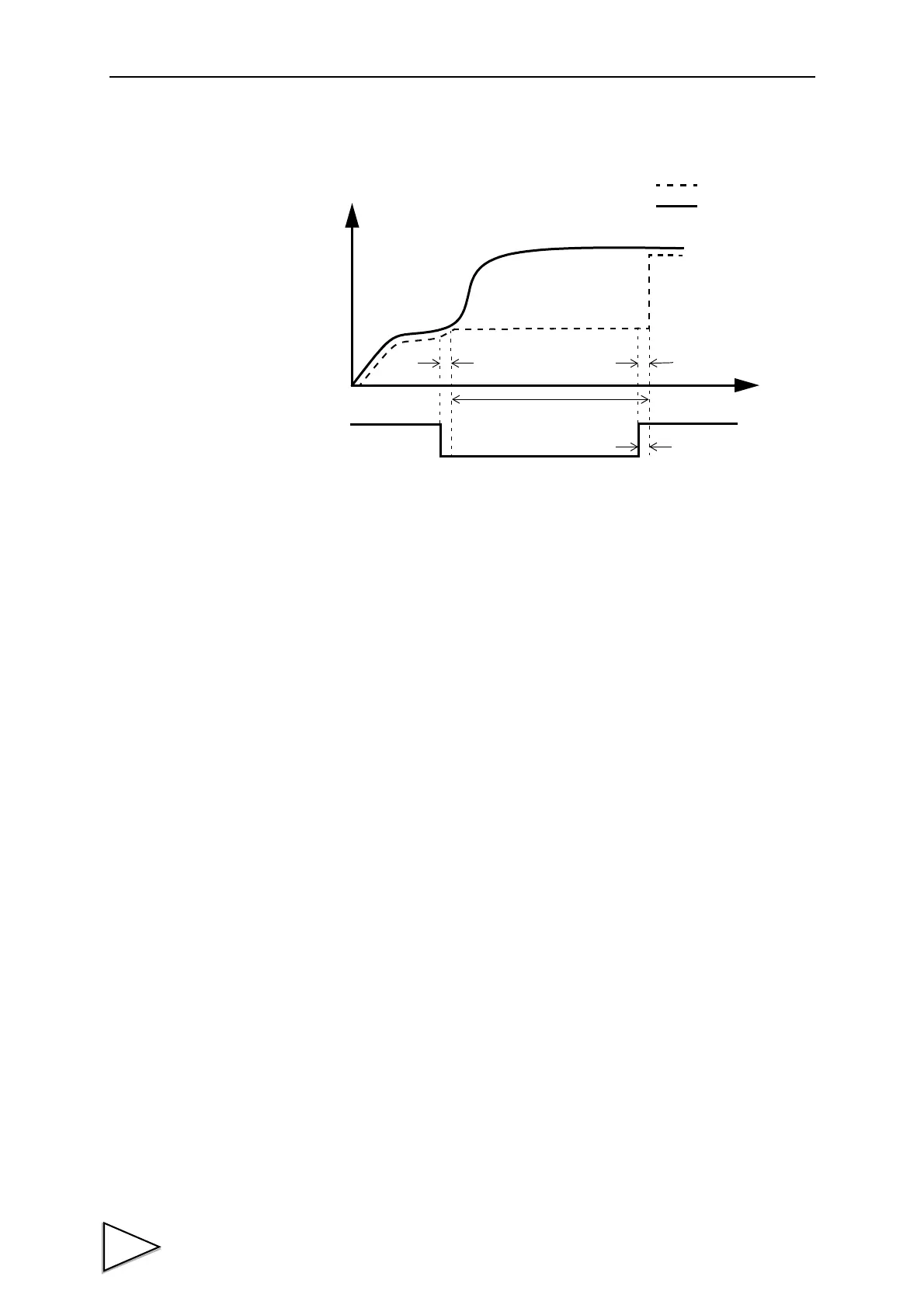

• Timing Chart
t1 : Time from when the hold signal is inputted to when the indicated value is
held
t2 : Time from when the hold signal is cancelled to when the indicated value
returns to tracking
t3 : Minimum reset signal width required for canceling the hold
t2
t3
t1
Hold section
Time
OFF
ON
Indicated value
Sensor input value
Hold
input
t1 to t3 : MAX 5mS
