10.BCD DATA OUTPUT
81

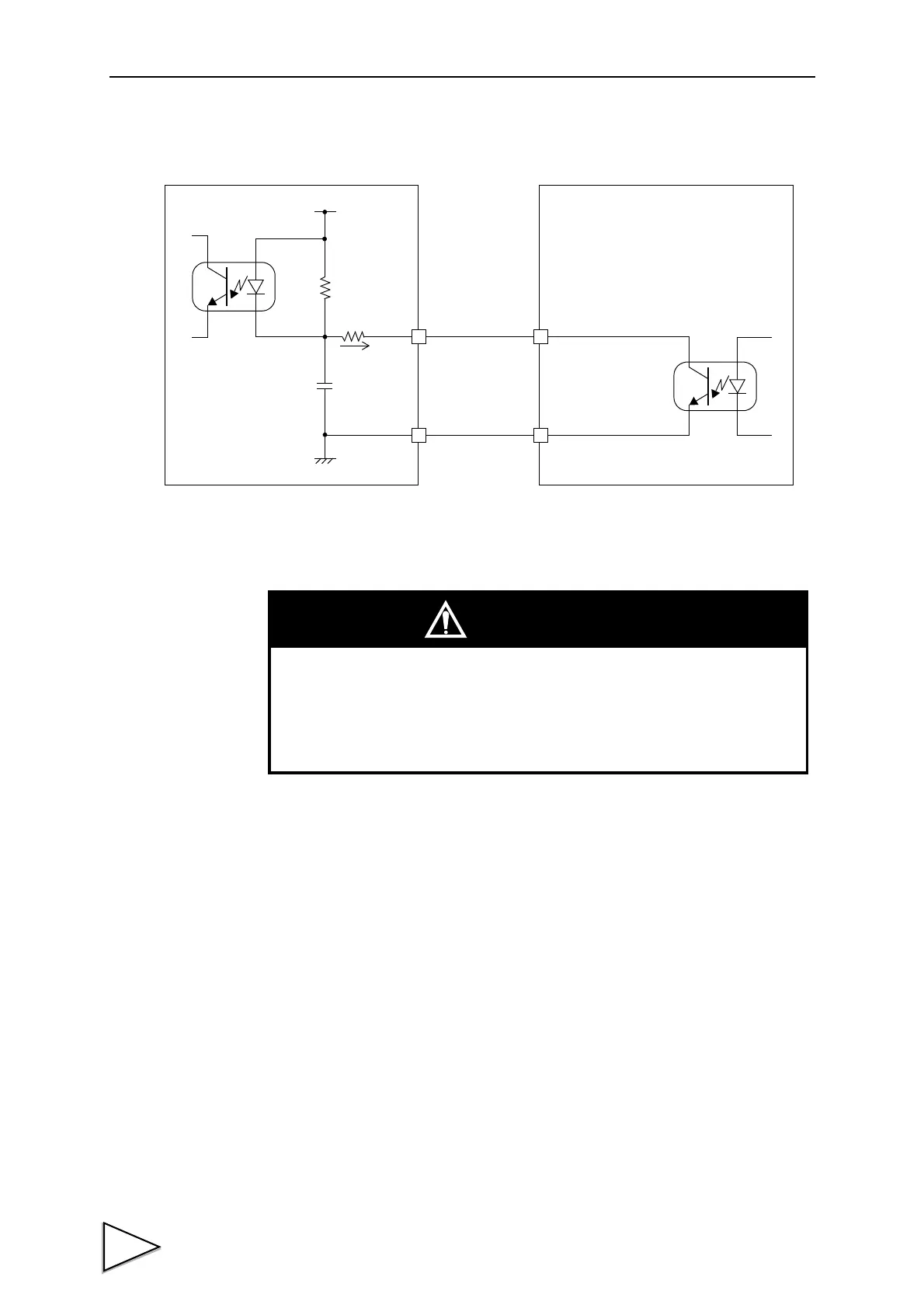

• Input
Out
COM
Ic=Approx. 6mA
In
COM
Sink type
F320
A1，B1
A14，B14
+5V
PLC output unit etc.
CAUTION
• Avoid applying external voltages to the signal input circuit.
• Use external elements which withstands Ic=10mA or above
• Leakage current from external element must be 30μA or below.
