10.BCD DATA OUTPUT
83
P. C
P.C and BCD data are outputted simultaneously when stable.
Over
It is outputted at the time of over scale(-LOAD, +LOAD, OFL1 or OFL2).
Strobe

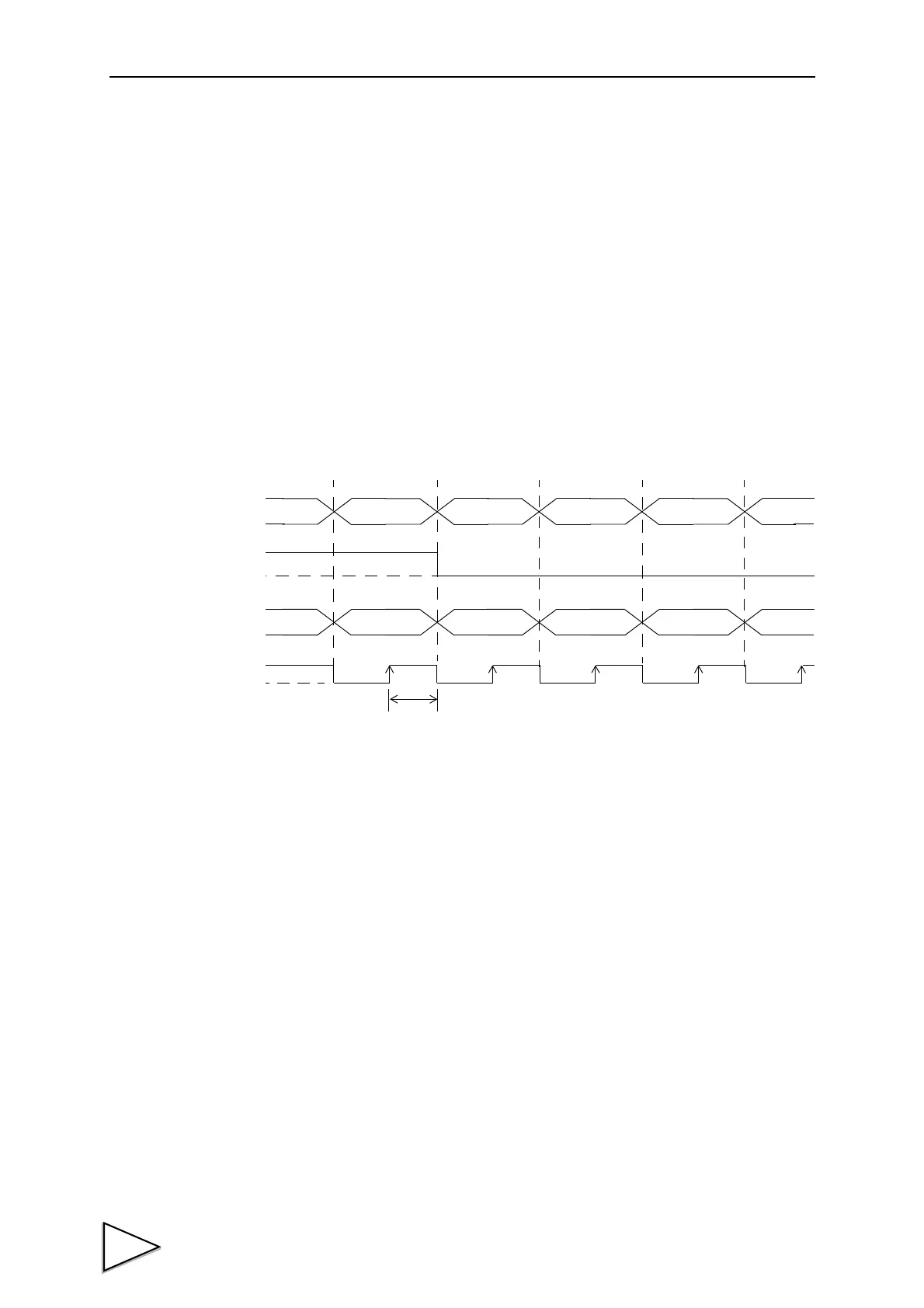

Strobe pulses are outputted in synchronization with BCD data. Read data using
the rising edges of the pulses. The setting of BCD data update rate can be
changed.
BCD Data
Over
Strobe Range
Strobe
0
1
0
1
P. C
