Uponor Smatrix Wave PULSE User Manual

Components of the thermostat:

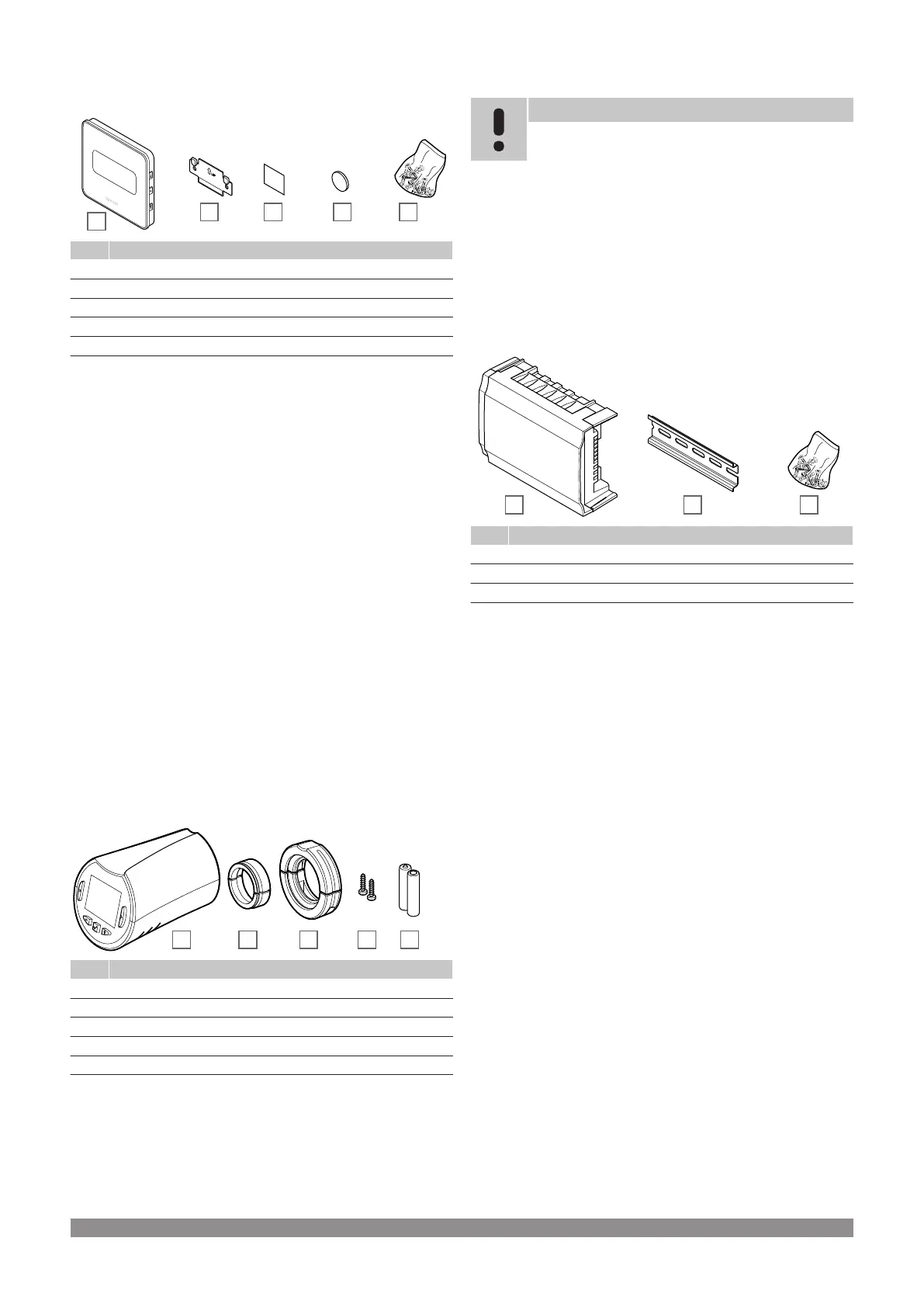

The illustration below shows the thermostat and its components.
A
B C D E
CD0000027
Item Description
A Uponor Smatrix Wave T-169
B Wall bracket
C Adhesive tape
D Battery (CR2032 3V)
E Mounting material
Thermostatic head
The thermostatic head enables control of radiators in the system.
Uponor Smatrix Wave T-162
Main characteristics:
• Proportional control
• Backlit display, dims after 10 seconds of inactivity.
• Displays Celsius or Fahrenheit.
• Displays software version during power up sequence.
• Receives setpoint and Comfort/ECO mode from thermostat and
Uponor Smatrix PULSE app (requires communication module), if
available. The setpoint is otherwise set on the thermostatic
head.
• Setpoint range is 5 – 35 °C (maximum and minimum setting may
be limited by other system settings).
• Shows current room temperature.
• Requires an Uponor Smatrix Wave room controller.
• One to several thermostatic heads per room can be registered.
Up to two thermostatic heads per channel.
• Can be placed up to 30 meters away from the room controller.
Components of the thermostatic head
The illustration below shows the thermostatic head and its
components.
A
B C D E
CD0000032
Item Description
A Uponor Smatrix Wave T-162
B Adaptors (threaded M30 and M28)
C Plastic fitting brackets
D Mounting screws
E Batteries (AA 1.5 V)
Expansion module
The Uponor Smatrix Wave room controller can be expanded with six
extra channels and actuator outputs using a Slave module.
Uponor Smatrix Wave M-262
Note
Only one slave module extension is supported per room
controller.
Main characteristics:
• Easy plug in installation on existing room controller, no additional
wiring needed.
• Register up to six extra thermostats to the system.
• Connect up to six extra actuators (24 V).
• Electronic control of actuators.
• Valve exercise.
Components of the slave module
The illustration below shows the slave module and its components.
A B C
CD0000033
Item Description
A Uponor Smatrix Wave M-262
B DIN rail
C Mounting material
Relay module
The relay module adds two extra output relays to the system.
Uponor Smatrix Wave M-161
Main characteristics:
• Potential free contacts (230 V AC, 5 A).
• Requires an Uponor Smatrix Wave room controller.
• Pump control and heating/cooling output function.
• Pump and dehumidifier control function (requires communication
module and Uponor Smatrix PULSE app).
• Boiler and chiller control function (requires communication
module and Uponor Smatrix PULSE app).
• Comfort/ECO and ventilation control function (requires
communication module and Uponor Smatrix PULSE app).
• Fan coil control (requires communication module and Uponor
Smatrix PULSE app for the fan coil to be linked to a room
channel).
• Optional two stage cooling function (requires activation on the
relay module, and the communication module).
See Use relay module for time delayed two stage additional
cooling (requires communication module), Page 68 for more
information.
• Can be placed up to 30 meters away from the room controller.
Uponor Smatrix Wave PULSE
|
Installation and operation manual
|
11

Uponor Smatrix Wave PULSE Specifications

General

Type	Wireless Temperature Controller
Communication Protocol	RF (Radio Frequency)
Compatibility	Uponor Smatrix Wave system
Operating Temperature Range	0°C to 50°C
Display	LCD
Control	Wireless
