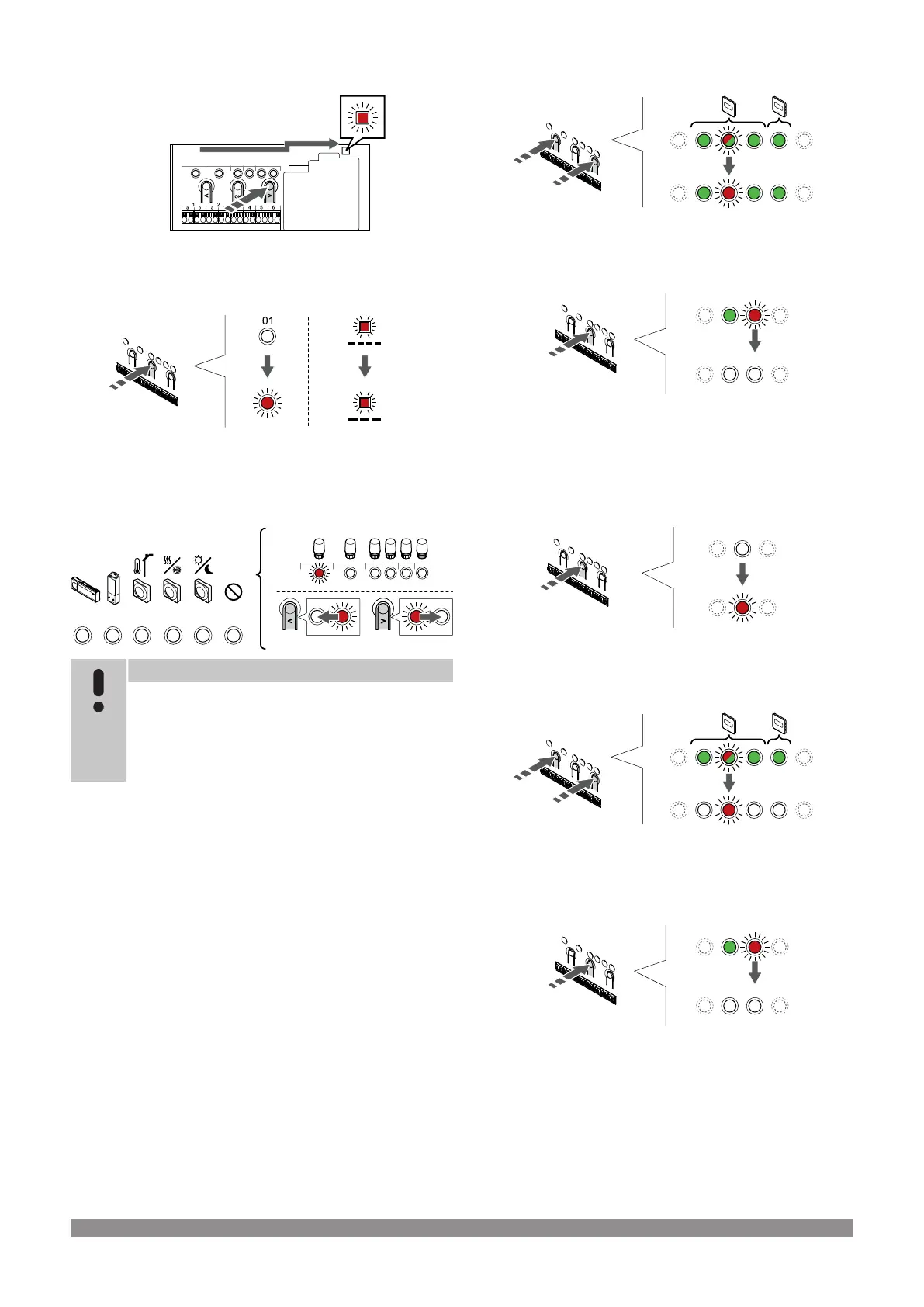

2. Move the channel pointer to the power LED
SI0000082
Use buttons < or > to move the pointer to the power LED (LED
flashes red).
3. Enter system device registration mode
SI0000083
Press the OK button to enter system device registration mode (power
LED). The power LED starts flashing according to the pattern long
blink, short pause, long blink. Channel 1 starts flashing red.
4. Select a channel
02 03 04 05 0601
SI0000157
1 65432
Note
If unregistering system device channel 1 from a sub room
controller, all remaining sub room controllers must be
unregistered from the master room controller (system
device channel 1). Register the remaining sub room
controllers to the master room controller again when
finished.
Use buttons < or > to move the pointer (LED flashes red) to the
channel to unregister (solid green LED).
Channel
1 Sub room controller
2 Relay module
3 Public thermostat with outdoor sensor.
4 Public thermostat with heating/cooling switch from contact or,
heating cooling switch from sensor input (requires communication
module).
5 Public thermostat with Comfort/ECO switch from contact.This
option disables the Comfort/ECO option in the GPI.
6 Not used
5. Unregister the channel
5 s
SI0000156
Press the < and > buttons simultaneously until the LED for the
selected channel starts flashing red (about 5 seconds).
6. Exit registration mode
3 s
SI0000078
Press and hold the OK button on the room controller until the green
LEDs turn off to end registration and return to run mode.
Unregister all room controller channels
1. Enter registration mode
3 s
SI0000065
Press and hold the OK button on the room controller until the LED for
channel 1 (or the first unregistered channel) flashes red.
2. Unregister all channels
10 s
SI0000160
Press the < and > buttons simultaneously until the LEDs for all
channels except one turn off (about 10 seconds). The one remaining
flashes red.
3. Exit registration mode
3 s
SI0000078
Press and hold the OK button on the room controller until the green
LEDs turn off to end registration and return to run mode.
