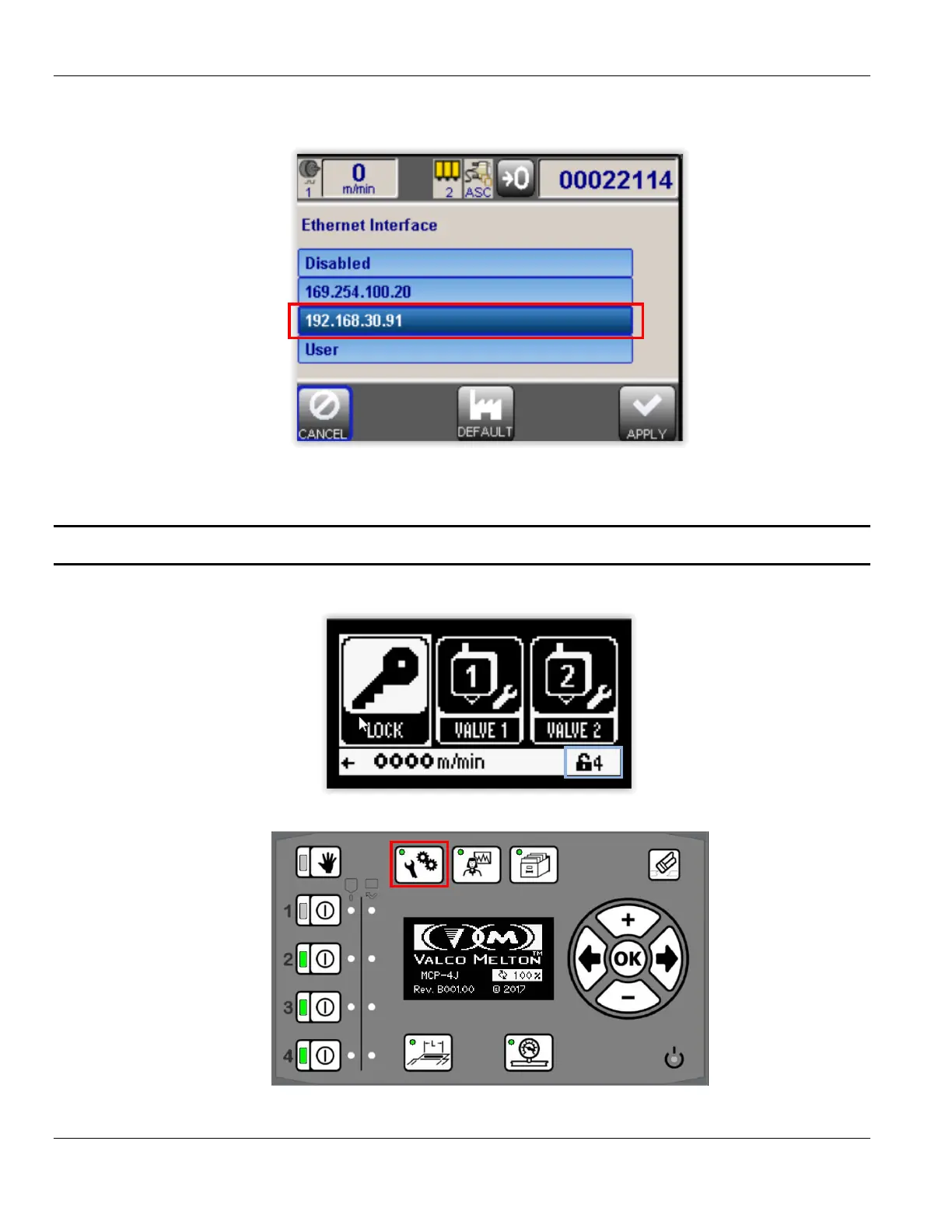

Appendix B - Sy
stem Connectivit
y
MC122 - MCP-4J C
ontrol Unit
128
MCP-8 - Continued
5.
Reset the system using the main power swit
ch.
MCP-4
1.
Go to MCP-4 System and unlock the control to access level 4
2.
Select the Setup Menu
3.
Select the Communication (“COMM
”) icon
137
139
Table of Contents
