MC122 - MCP-4J Control Unit Section 4 - Programming
31
Section 4 - Programming
Mounting
The Horizontal MCP-4J Control Unit can be mounted on any flat, stable surface close to the machine glue station.
1. Be sure the four (4) rubber feet (horizontal version only) are firmly attached to the unit. The rubber feet
reduce vibration to the unit. Do not remove the rubber feet from the unit for any reason.
2. Valco makes a rolling cart (738xx878 Complete System Cart; 579xx322 Control Stand only) that can be
used to securely mount the MCP-4J Control Unit. Please contact your Valco sales representative for
purchasing information.
3. The Vertical Control Units are vertically mounted. See the mounting footprints in the Parts List Section.
4. A swivel shelf mount (583xx564) is available for horizontal units.
Using the Operator Interface
The Operator Interface Buttons
The Operator Interface Buttons can be grouped into four categories (see Figure 4-1):
• Main Menu Buttons
• Valve Buttons
• Navigation Buttons
• Edit Buttons

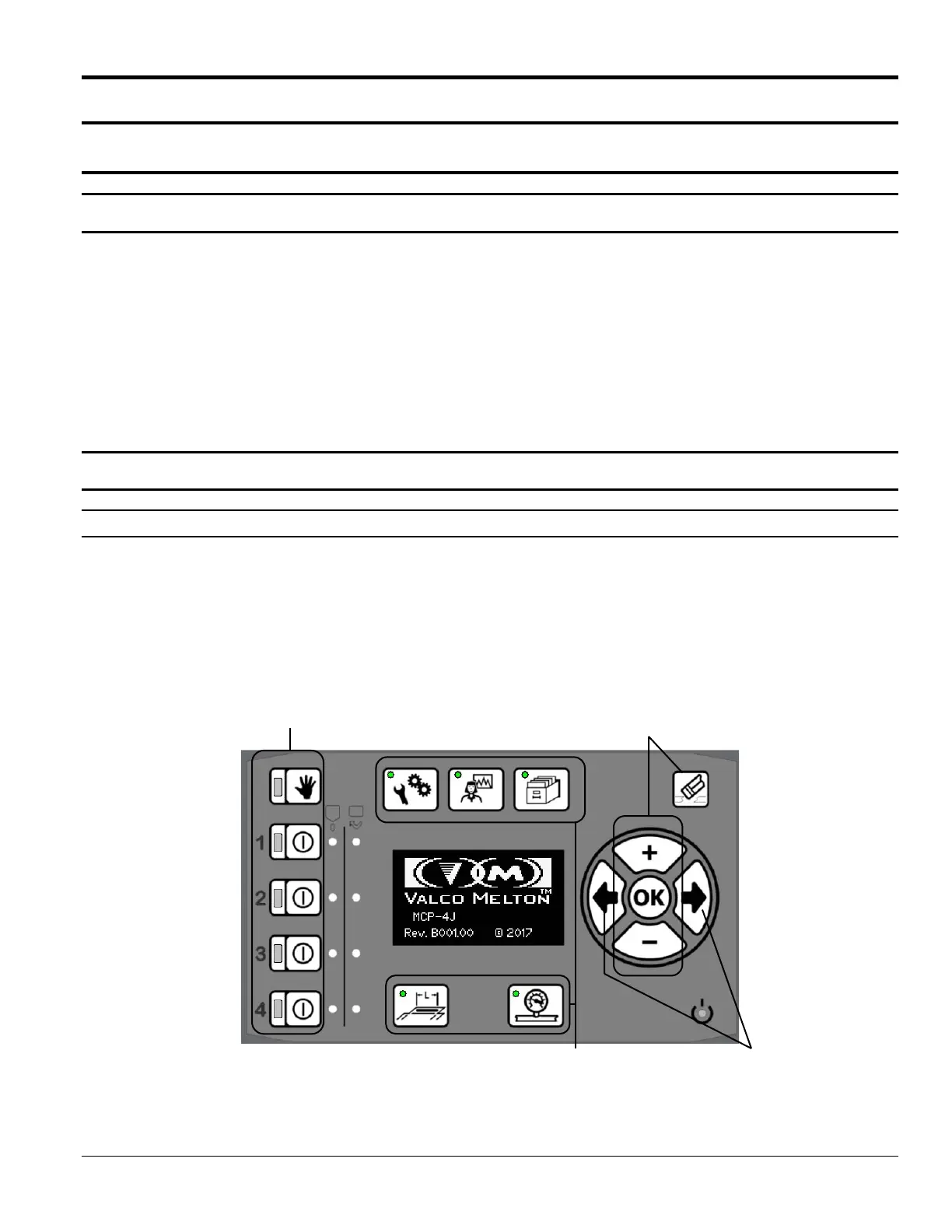

Figure 4-1. The Operator Interface Buttons
Valve Buttons
Navigation Buttons
Main Menu Buttons
Edit Buttons
