Section 4 - Programming MC122 - MCP-4J Control Unit
46
Enable the Interface - Continued

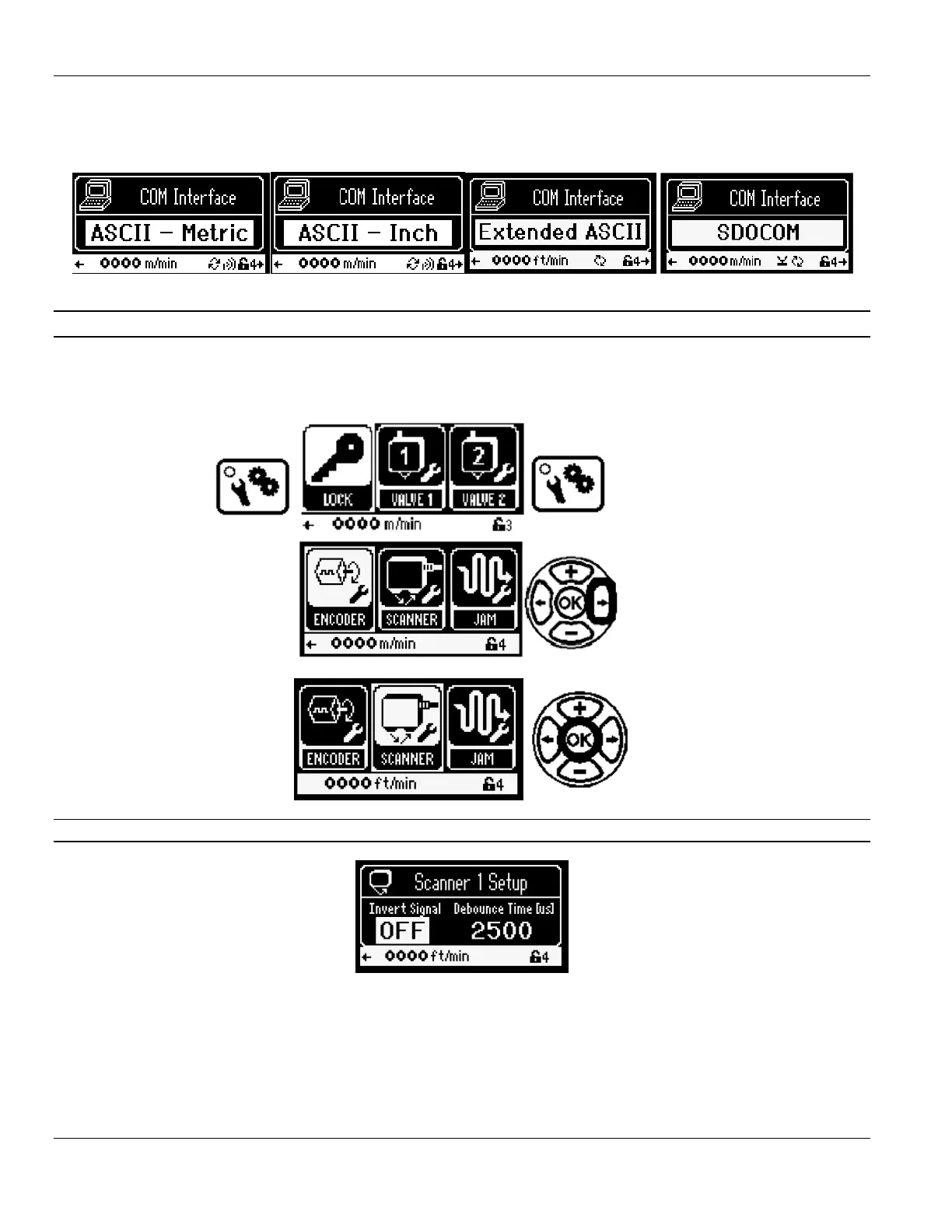

3. Based on how the data is sent, select ‘ASCII - Metric,’ ‘ASCII - Inch,’ Extended ASCII, or SDOCOM.
Scanner Menu
The MCP-4J has a unique Setup menu to configure the scanner inputs. There is a debounce time and signal inversion
setting for each of the four inputs. Each scanner input has its own screen.
Scanner X Setup
Invert Signal, ON or OFF – If turned “On”, the control will treat the scanner input as ON when the scanner signal is
OFF and vice versa. If turned “Off”, the control will treat the scanner input normally.
Debounce Time [us] – This is the amount of time the scanner input must be triggered before it registers as ON.
