MC122 - MCP-4J Control Unit Section 5 - Operation
65
Section 5 - Operation
Set the Pattern Menu Information
After completing the mounting and the programming of the MCP-4J Unit, the unit is ready to operate. The first task is
to input all pattern data and other essential information. Many of the options are “enabled” in the Setup Menu (see
Section 4 - Programming). If you do not see a particular setting you need, be sure to check the programming
parameters that were set in Section 4 of this manual--the desired option may not be enabled, and that option’s menu
screens are hidden.
To edit the highlighted value, press the OK Button for the thumbwheel or press the Plus/Minus Buttons for single digit
editing (see Section 4 - Programming, “Thumbwheel vs. Single Digit Edit”).
The default screen always shows valve 1. Before entering any data, it is advisable to check the left side of the screen
for the valve number. Make certain the desired valve number appears before entering data.
Depending on the password level, some screens may not be seen
and/or available. This is a security feature of the MCP-4.

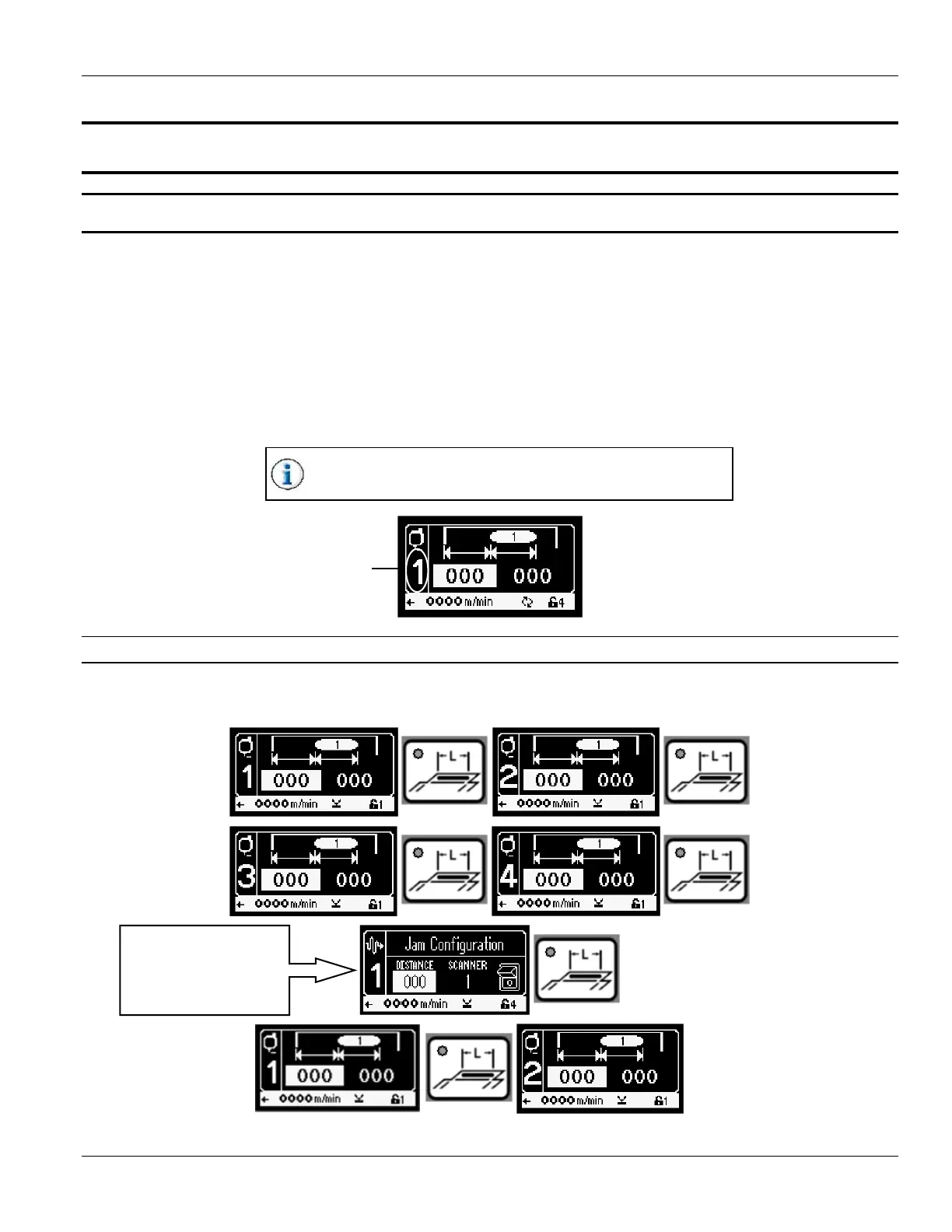

Scrolling Through Valve Numbers with the Pattern Button
Each press of the Pattern Button will increase the valve number by one. When valve 4 is reached, the valve numbers
restart at valve 1. For example:
(Etc.)
Valve Numbe
Jam Configuration
Screen appears here
IF Jam detection is
enabled.
To Next Page
