Section 3 - Basic features MC122 - MCP-4J Control Unit
12
Back Panel
*For the EPC Air Pressure Input, use an 8mm air line OR
use the 1/4” tube adapter that is included in your Installation
Kit.

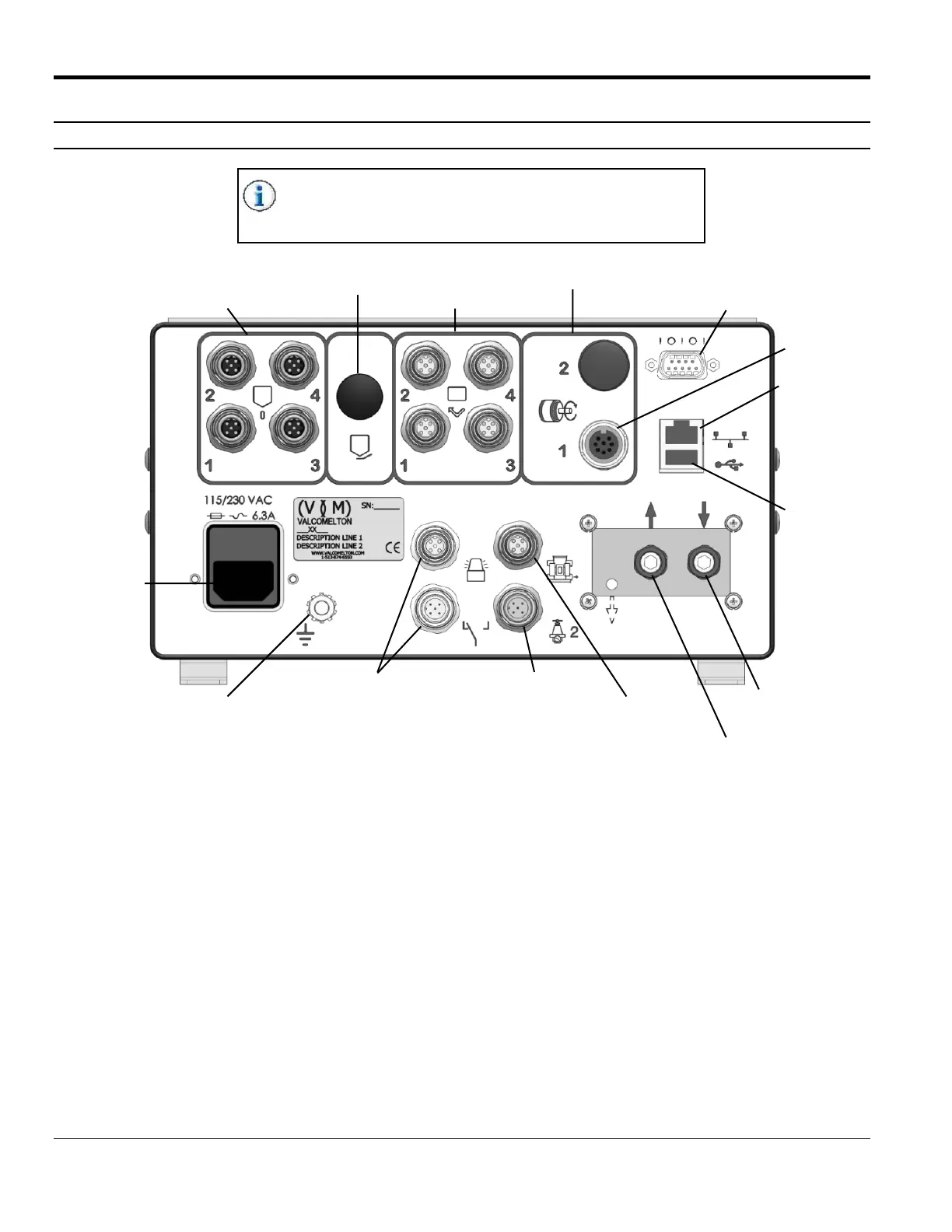

Figure 3-2. MCP-4J Back Panel
alve Output 1-4 (blue)
Used on 074xx089
for FC Tipsealer
Scanner Input 1-4 (yellow)
Encoder Input
Enc 2 or Enc 1 out
option available via kit
External Communication Port
Ethernet Port
USB Port
EPC2 Output
EPC Air Pressure Input
* (see note above)
Beacon & Relay Outputs for Jam
(not available in horizontal)
AC Powe
Cable
Grounding Screw
Pump Power Connector
EPC Air Pressure Output
