VALCO MELTON MCP-4J - MCP-4 J Control, Vertical; 3 NC Tipsealer (074 Xx086); Bottom Panel

Section 3 - Basic features MC122 - MCP-4J Control Unit
22

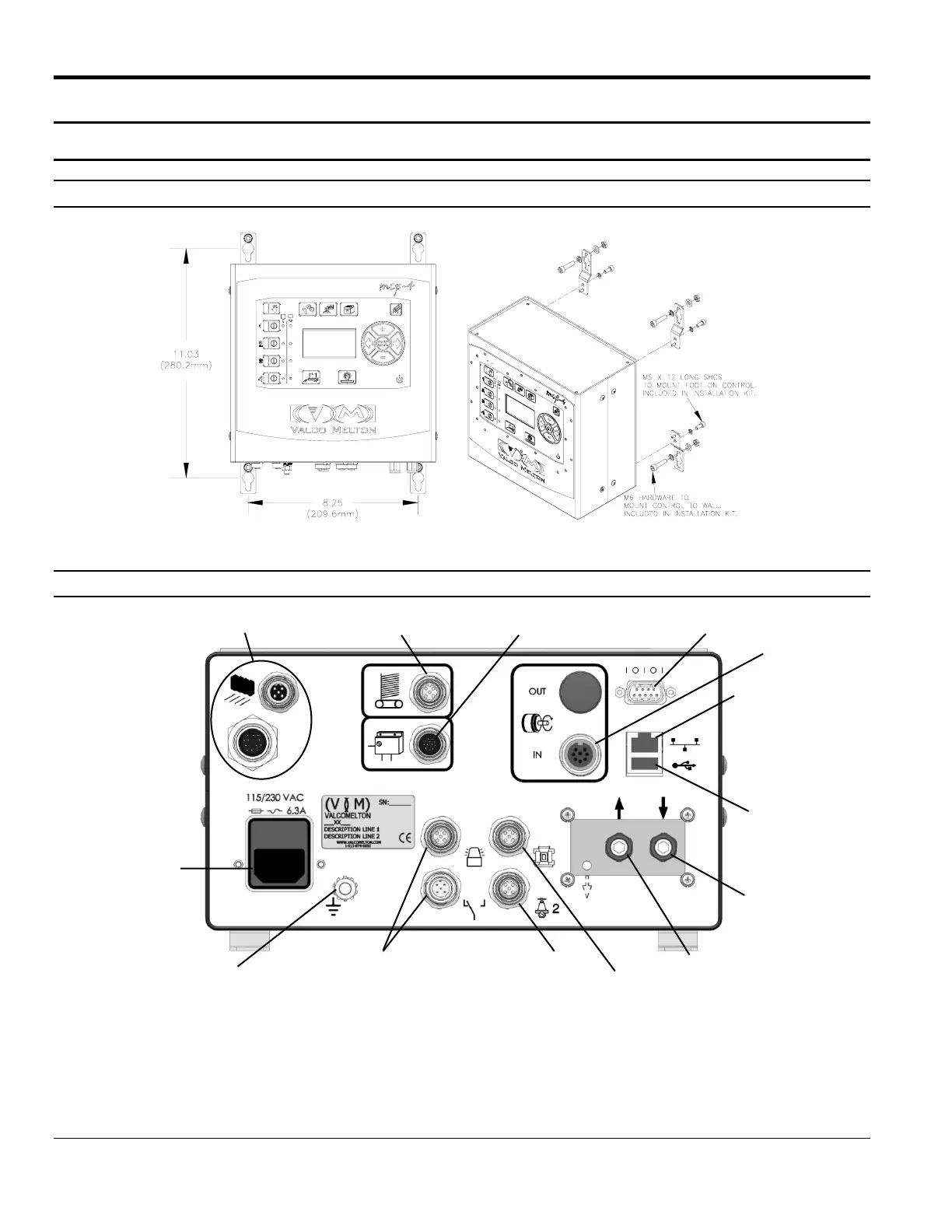

MCP-4J Control, Vertical; 3NC Tipsealer (074xx086)
Front Panel
Figure 3-7. MCP-4J Control, Vertical; 3NC Tipsealer - Front View
Bottom Panel
Figure 3-8. MCP-4J Control, Vertical; 3NC Tipsealer - Bottom View
Encoder Input
External Communication Port
Groundin
g
Screw
EPC2 Output
EPC Air
Pressure
Input* (see
note above)
Beacon & Relay Outputs for Jam
(not available in horizontal)
EPC Air Pressure Output
Ethernet Port
USB Port
AC Powe
r
Cable
Pump Power Connector
Valve Output
Feeder Signal Connection
Manifold Connection
