Vanderbilt bright blue User Manual

VBBIM09/33/20 v5.0.3
Chapter 1 bright blue 27
▪ Pin 2 is (-)

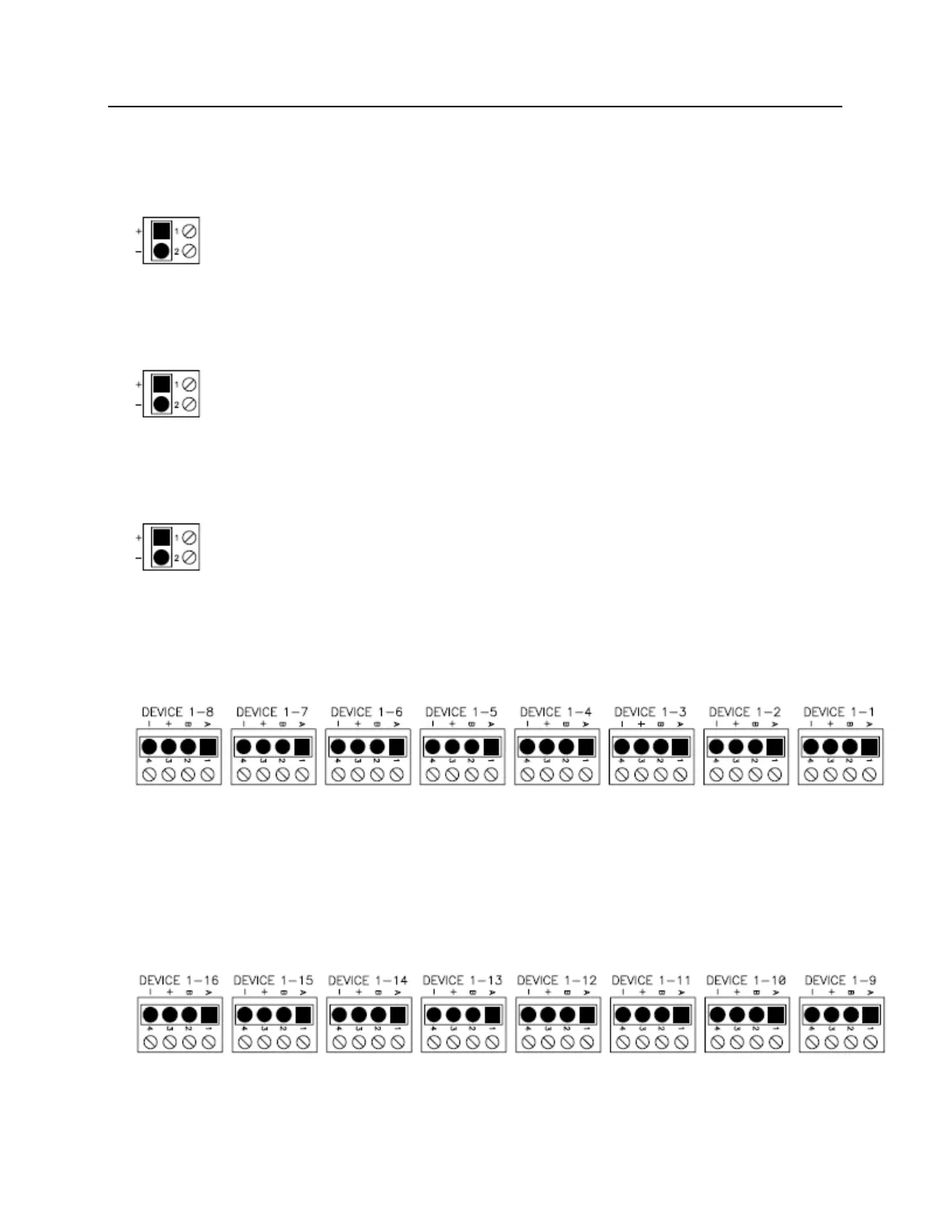

POWER IN DEVICES 9 - 16: Power input for Channel 1, Devices 1-9 -- 1-16. 12VDC or 24VDC.
▪ Pin 1 is (+)
▪ Pin 2 is (-)
POWER IN DEVICES 1 - 8: Power input for Channel 2, Devices 2-1 -- 2-8. 12VDC or 24VDC.
▪ Pin 1 is (+)
▪ Pin 2 is (-)
POWER IN DEVICES 9 - 16: Power input for Channel 2, Devices 2-9 -- 2-16. 12VDC or 24VDC.
▪ Pin 1 is (+)
▪ Pin 2 is (-)
DEVICE 1-1 to Device 1-8: Communication and power for Channel 1, Devices 1-1 -- 1-8.
Receives power from POWER IN DEVICES 1 - 8.
24VDC and 12VDC devices may be connected depending on power supply at POWER IN DEVICES 1 - 8.
▪ Pin 1 is A
▪ Pin 2 is B
▪ Pin 3 is (+)
▪ Pin 4 is (-)
DEVICE 1-9 to Device 1-16: Communication and power for Channel 1, Devices 1-9 -- 1-16.
Receives power from POWER IN DEVICES 9 - 16.
24VDC and 12VDC devices may be connected depending on power supply at POWER IN DEVICES 9 - 16.
▪ Pin 1 is A
