28 bright blue Installation Manual
▪ Pin 2 is B
▪ Pin 3 is (+)
▪ Pin 4 is (-)

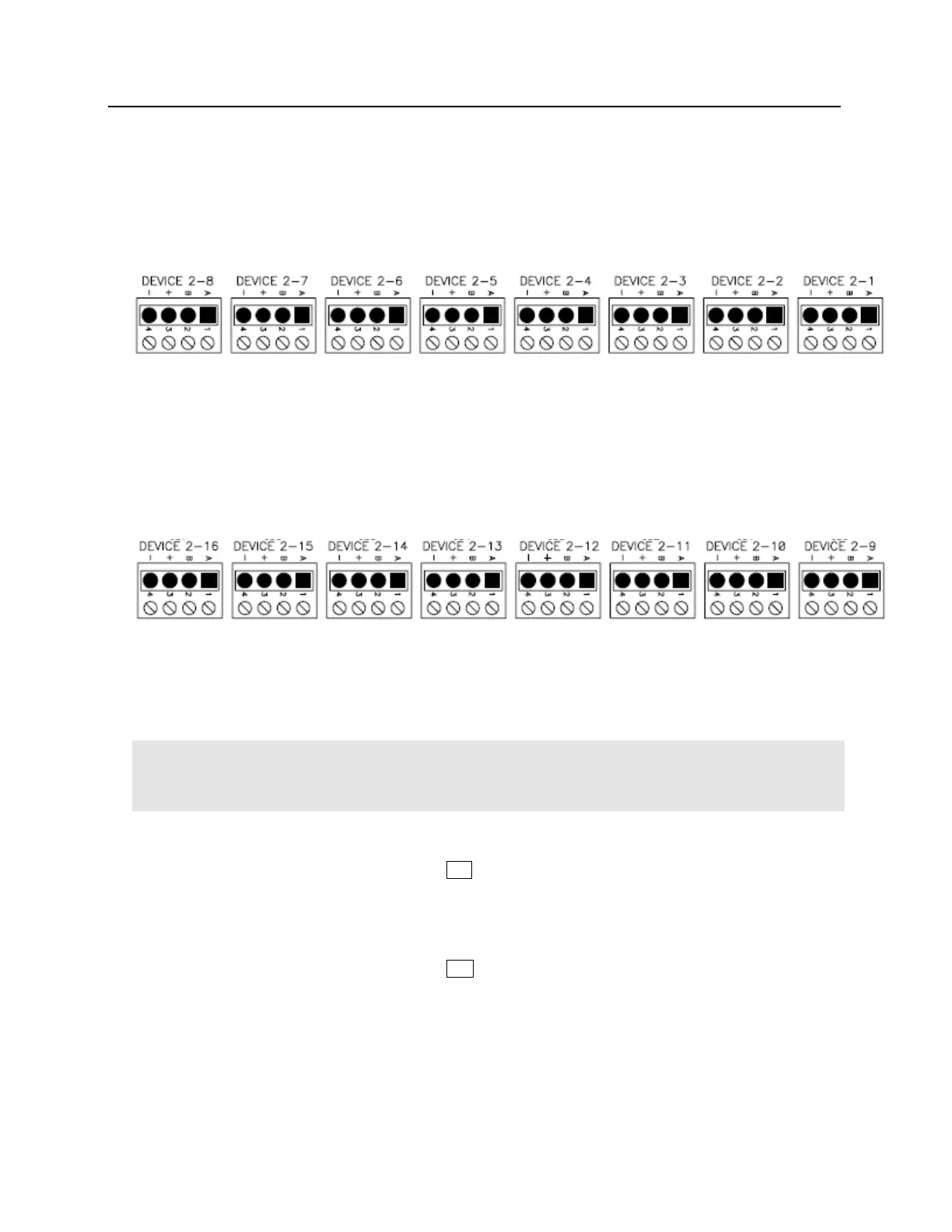

DEVICE 2-1 to Device 2-8: Communication and power for Channel 2, Devices 2-1 -- 2-8.
Receives power from POWER IN DEVICES 1 - 8.
24VDC and 12VDC devices may be connected depending on power supply at POWER IN DEVICES 1 - 8.
▪ Pin 1 is A
▪ Pin 2 is B
▪ Pin 3 is (+)
▪ Pin 4 is (-)
DEVICE 2-9 to Device 2-16: Communication and power for Channel 2, Devices 2-9 -- 2-16.
Receives power from POWER IN DEVICES 9 - 16.
24VDC and 12VDC devices may be connected depending on power supply at POWER IN DEVICES 9 - 16.
▪ Pin 1 is A
▪ Pin 2 is B
▪ Pin 3 is (+)
▪ Pin 4 is (-)
Warning: The polarity of Device 1-1 to 2-16 connections has been reversed from the Rev B controller. If
changing from the bright blue Rev B controller to newer bright blue controllers, the positive and negative
wires need to be reversed for all devices.
RESET
Press and Hold the AP02 controller Reset Button 20 until the short beeps begin and for nine (9) short beeps or
less. The controller will shut down and reboot. The configured Network Settings (IP Address, etc.) will be retained
on reboot
SHUTDOWN
Press and Hold the AP02 controller Reset Button 20 until the short beeps begin and continue to hold until after
10 short beeps followed by 2 long beeps. The controller will power down. The configured Network Settings (IP
Address, etc.) will be retained on restart. Disconnect and reconnect power to restart the controller.
