7. Startup is finished.

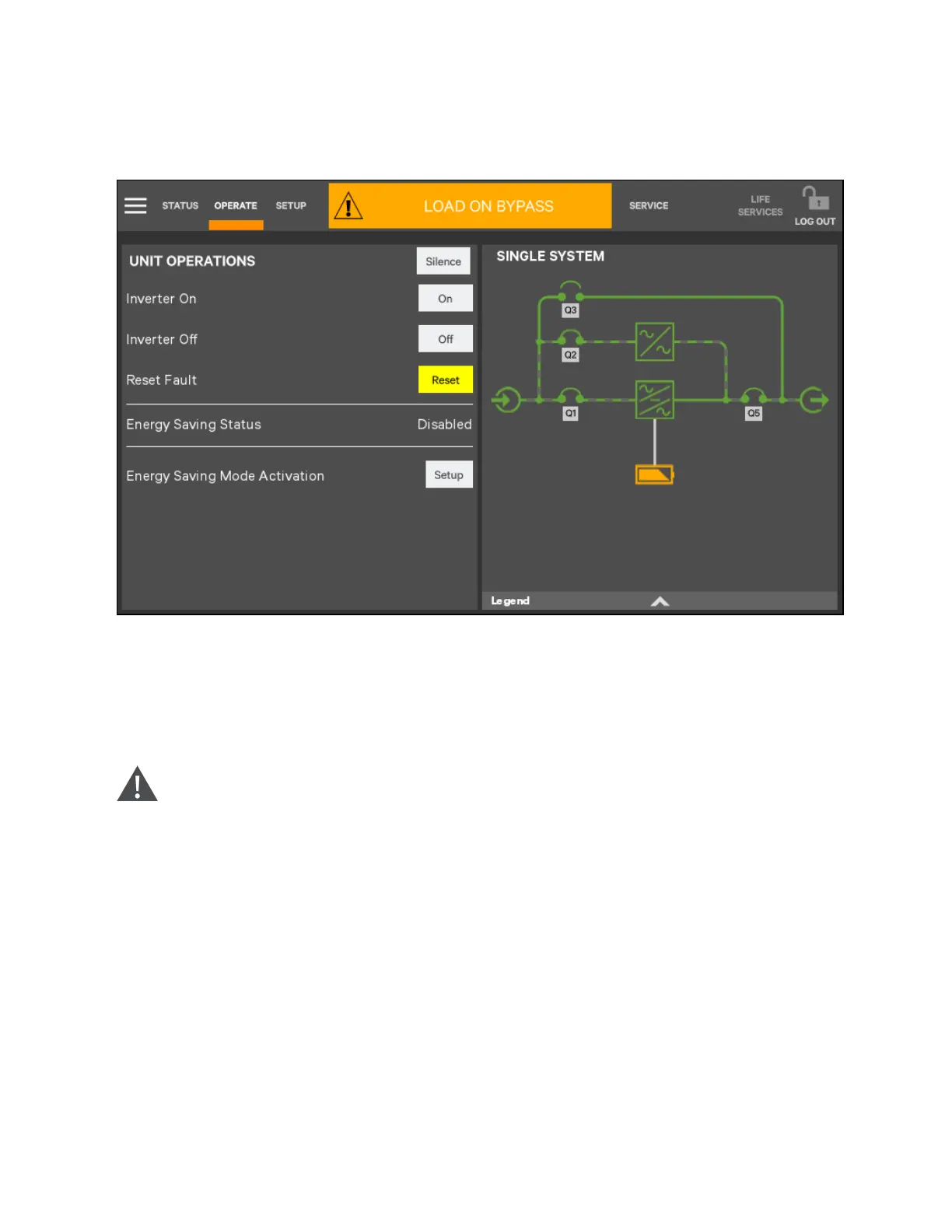

Figure 6.13 Startup Finished
6.2.2 Startup procedures in ECO mode
1. Open the front door of the UPS.
NOTE: Ensure that the internal maintenance bypass switch Q3 is disconnected, and that the input cables and copper
bars are reliably connected.
WARNING! In parallel UPS configuration, all operations related to disconnection or connection of the
maintenance bypass switch must be executed within 3 seconds to avoid overload situations and damage to
the maintenance bypass switch.
2. Close the output switch Q5, bypass input switch Q2, rectifier input switch Q1, and all external output isolating
switches (if any) of the UPS in turn.
Now the system is powered on, and the startup screen activates.
3. If ECO mode is necessary, contact a Vertiv service engineer to activate it through the software setting. If you wish
to activate it by yourself, you can enable it through the Energy Saving Mode Activation on the Touchscreen. For
details, refer to Operator controls on page68.
4. Touch Setup next to the Energy Saving Mode Activation.
5. In the drop-down menu, touch ECO Mode.
6. Touch Save.
110 Proprietary and Confidential ©2023 Vertiv Group Corp. 6 Single UPS Operation
Vertiv™ Liebert® APM2 30 to 120 kVA Modular UPS User Manual
