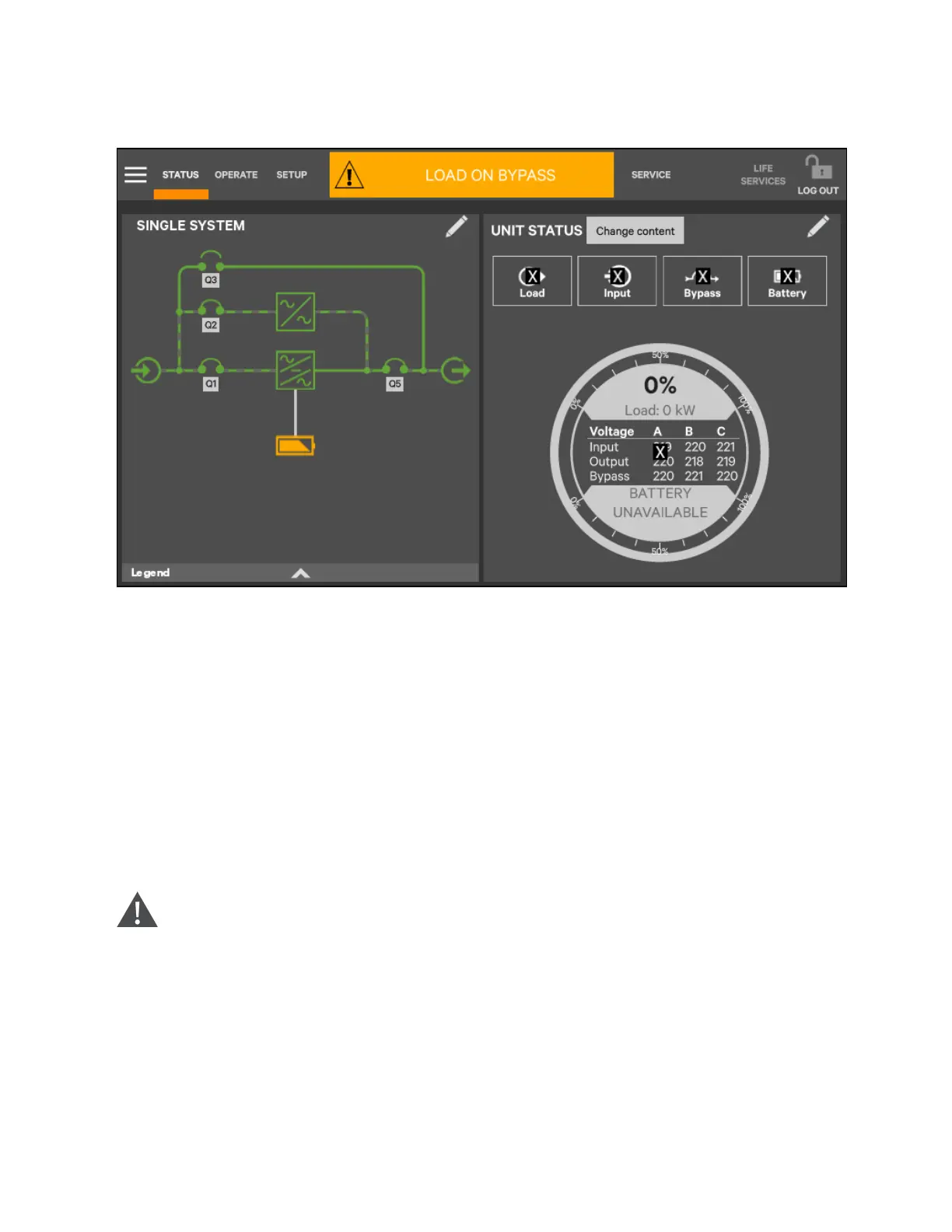

Figure 5.15 Edit UNIT STATUS Panel
5.3.3 Operator controls
The Operator login enables control of UPS functions:
• Silence (Alarm)
• Inverter On
• Inverter Off
• Reset Fault
• Energy Saving Mode Activation
• Battery Operations
Each command is available under the OPERATE menu. The OPERATE menu may be used by logging in with Operator,
Administrator, and Service access.
CAUTION: Risk of improper operation. Can cause load drop resulting in equipment damage. The Inverter On,
Inverter Off, Reset Fault and Energy Saving Mode Activation commands will be available whenever the UPS is
operating. Before executing any command, verify that the UPS status is suitable for the command to be
performed.
68 Proprietary and Confidential ©2023 Vertiv Group Corp.
5 Operator Control and Display
Panel
Vertiv™ Liebert® APM2 30 to 120 kVA Modular UPS User Manual
